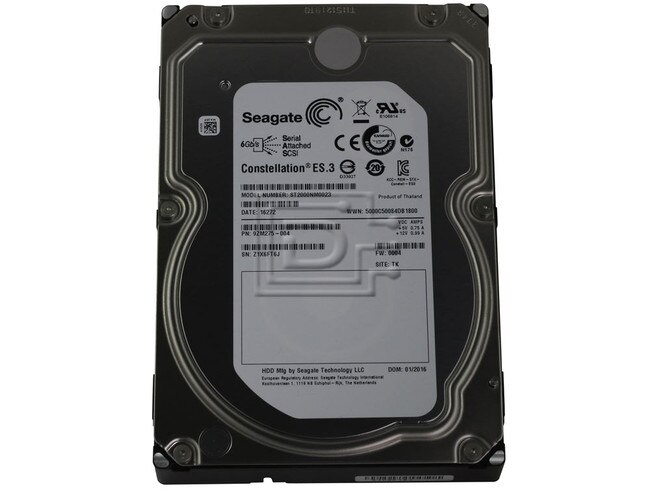

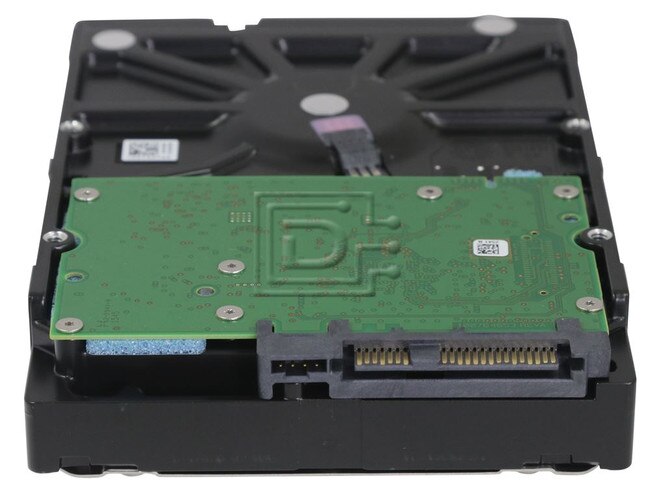

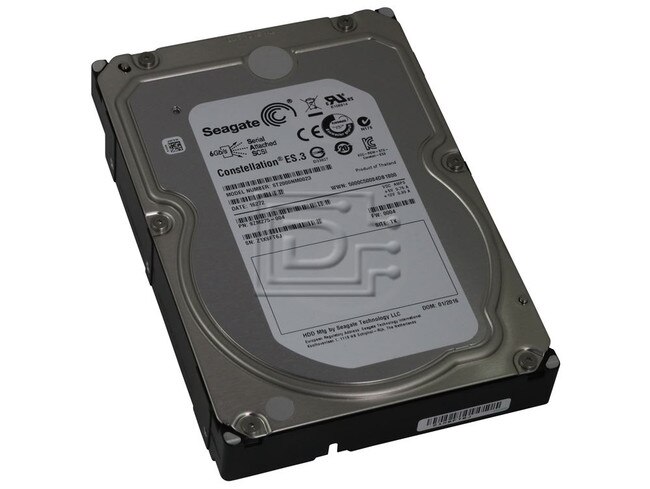

Seagate Constellation ES.3 ST2000NM0023 2TB / 2000GB 7.2K 6.0Gbps Enterprise SAS Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST2000NM0023

DiscTech Item #: SGT-ST2000NM0023-BN-3Y


$169.00
  • Low Stock:Call for ETA
$169.00

Enterprise Grade

Capacity: 2TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 175

Average Seek Time: 4.16

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 128MB

Seagate Constellation ES.3  ST2000NM0023 2TB / 2000GB 7.2K 6.0Gbps Enterprise SAS  Hard Drive - Brand New

Alt MPN: 9ZM275-881

The Seagate® Constellation® ES.3 enterprise HDD delivers the scalability that data centers need to reliably meet their demanding growth of unstructured data.

  • Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
  • Perfect for reliable, 24×7 bulk data storage
  • Predictable 7200-RPM performance even in the most rugged multi-drive SAS or SATA environments
  • Best-in-class energy efficiency with low power and cooling requirements
  • Protect your data and ease data disposal costs and management with the SED FIPS 140-2 option

Compatibility:

This Seagate Enterprise hard disk is compatible with any system that supports 3.5" SAS Serial Attached SCSI hard disks.

Specifications
Interface6Gb/s SAS
Capacity2TB
Standard Model NumberST2000NM0023
Features
Protection Information (T10 DIF)Yes
Humdity SensorYes
Super ParityYes
Low HalogenYes
PowerChoice™ TechnologyYes
Cache, Multisegmented (MB)128
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)1.4 million
Reliability Rating @ Full 24x7 Operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760
Bytes per Sector512, 520, 528
Limited Warranty (years)55
Performance
Spindle Speed (RPM)7200
Max. Sustained Transfer Rate OD (MB/s)175
Average Latency (ms)4.16
Interace PortsDual
Rotation Vibration @ 1500 Hz (rad/s²)12.5
Power Consumption
Idle Power (W)5.78
Typical Operating, Random Read (W)9.59
Power Supply Requirements+12V and +5V
Environmental
Temperature, Operating (°C)5 to 60
Vibration, Nonoperating: <5Hz to 500Hz (Gs)0.25
Shock, Operating, 2ms (Read/Write) (Gs)70/40
Shock, Nonoperating, 1ms and 2ms (Gs)300
Physical
Height (in/mm, max)61.028/26.1
Width (in/mm, max)64.010/101.85
Depth (in/mm, max)65.878/147.0
Weight (lb/g)1.400/635
Carton Unit Quantity20
Cartons per Pallet40
Cartons per Layer8

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 9ZM275-881

Weight: 1.8 lb

Warranty: 3 Year Manufacturer

Brand New

3 Year Manufacturer Warranty
