Seagate Part #/MPN: ST3000NM0033
DiscTech Item #: SGT-ST3000NM0033-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 3TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 175
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 128MB

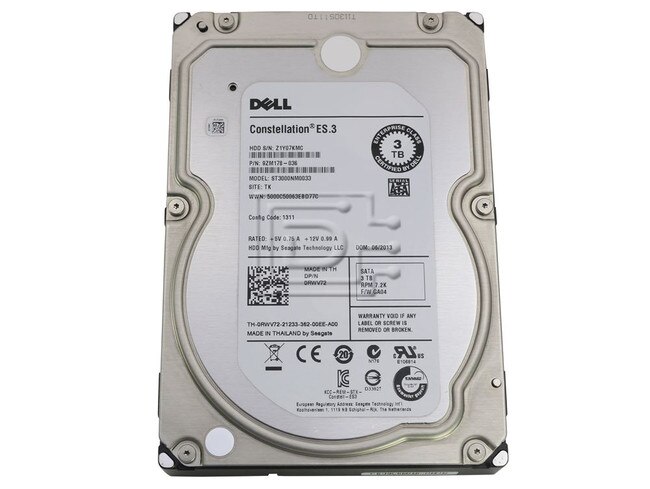

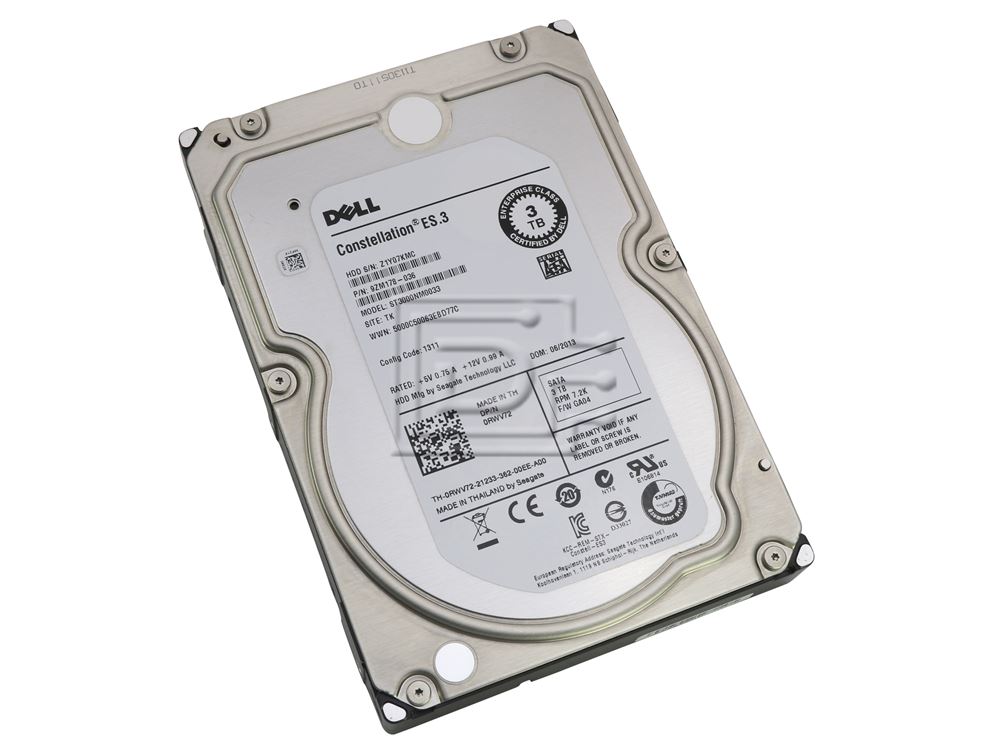

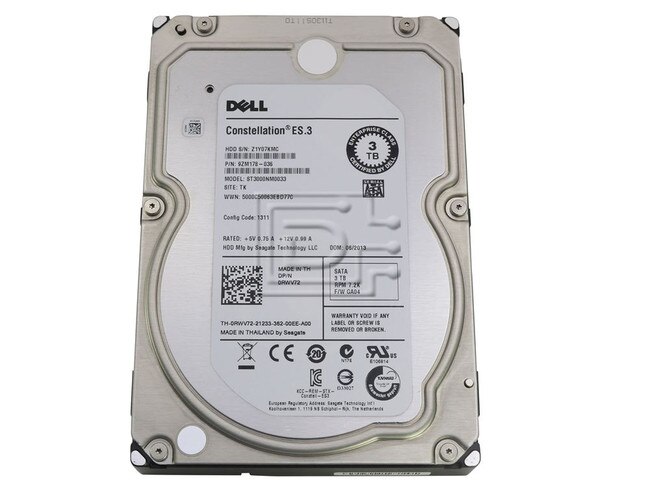

Seagate Constellation ES.3 ST3000NM0033 3TB / 3000GB 7200 RPM 6.0Gbps SATA / Serial ATA Hard Disk Drive - Factory Refurbished
Alt MPN: 9ZM178-004
The Constellation ES.3 SATA drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average. Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
Compatibility:
This drive is compatible with any server that accepts 3.5" x 1" LFF SATA hard drives.
Product Specifications | |
Interface | SATA 6 Gb/s |
Performance Specifications | |
Rotational Speed | 7,200 RPM (nominal) |
Cache | 128 MB |
Transfer Rate, Max Ext (MB/s) | 600 MB/s |
Sustained Data Rate OD | 175MB/s |
Average Latency (ms) | 4.16 |
Reliability/Data Integrity | |
Nonrecoverable Read Errors per Bits Read | 1 in 1015 |
Annualized Failure Rate (AFR) | 0.63% |
Physical Dimensions | |
English | |
Height | 1.028 Inches |
Length | 5.787 Inches |
Width | 4.00 Inches |
Weight | 1.543 Lbs |
Metric | |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Weight | 0.700 kg |
Environmental Specifications | |
Shock | |
Operating Shock (Read) | 70/40 (2 ms) |
Non-operating Shock | 300G (2 ms) |
Acoustics (belssound power) | |
Idle Mode | 2.8 |
Seek Mode 0 | 3.0 |
Temperature (English) | |
Operating | 41° F to 131° F |
Non-operating | -40° F to 158° F |
Temperature (Metric) | |
Operating | 5° C to 60° C |
Non-operating | -40° C to 70° C |
Electrical Specifications | |
Current Requirements | |
Power Dissipation: | |
Read/Write | 11.27 Watts |
Idle | 6.73 Watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9ZM178-004
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
