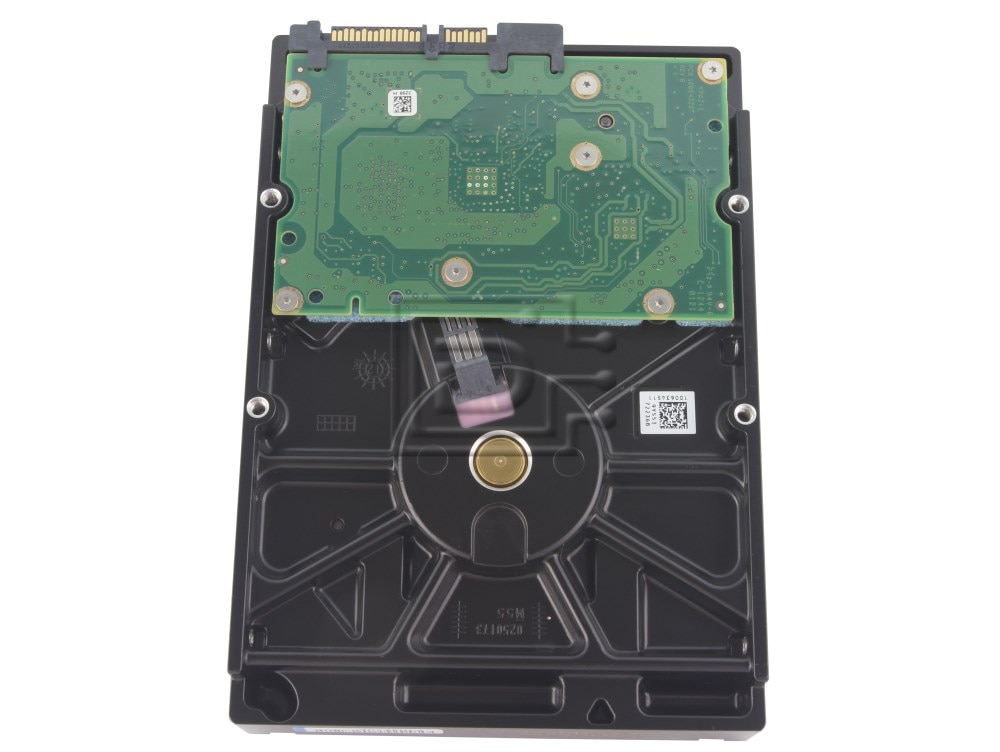

Seagate Constellation ES ST1000NM0011 1TB / 1000GB 7.2K 6.0Gbps SATA Hard Drive

Seagate Part #/MPN: ST1000NM0011

DiscTech Item #: SGT-ST1000NM0011-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 147

Average Seek Time: 8.5 / 9.5

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 64MB

Seagate Constellation ES ST1000NM0011 1TB / 1000GB 7.2K 6.0Gbps Enterprise SATA Hard Drive - Brand New

Alt MPN: 9YZ164-003

Seagate® Constellation® ES fifth-generation drives lead the industry with a range of high-capacity enterprise drive options. Available in both 6Gb/s SAS and SATA interfaces, these drives feature enterprise-class reliability with the power and performance efficiencies that make them ideal for capacity-optimised, 24x7 multi-drive server and storage environments.

Key Advantages

  • Fifth-generation, enterprise, nearline drive designed for 24×7 operation
  • Up to 2 TB of capacity for data-hungry enterprise business applications
  • Best-in-class enhanced rotational vibration tolerance ensures unrivaled performance in high-density applications requiring continuous data access
  • Enhanced efficiencies with PowerChoice™ host-selectable power-saving feature for unprecedented savings during slow or idle periods
  • Seagate RAID Rebuild™ development platform significantly reduces hours of lost productivity
  • Multi-drive firmware maximised for enterprise system availability
  • Robust performance with dual processor technology and ramp load technologies (35% average sustained throughput increase over previous generation)
  • Provides business sustainability with Seagate Unified Storage architecture - 6 Gb/s SAS performance with error detection and correction (IOEDC/ IOECC) capabilities and PI (Protection Information)
  • Self-Encrypting Drive (SED) option cuts IT drive retirement expenses while protecting data securely and is one of the easiest, most cost effective security measures you can implement
  • FIPS Self-Encrypting Drive option provides all the benefits of SED and is NIST certified to meet US, Canadian and UK government data encryption compliance requirements

  • Compatibility:

    This drive is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.

Drive specification


Formatted Gbytes (512 bytes/sector)


Bytes per sector


Default Sectors per track
Default read/write heads
Default cylinders

Spindle speed (RPM)


Guaranteed Sectors

Max Sustained Transfer Rate (MBps)


Cache buffer


Interface Type

6.0Gbps SATA

Seek time (read / write) ms

8.5 / 9.5

Average Latency


Dimensions (HxLxW) mm

26.11 / 147 / 101.85


640 g

Operating Shock (Read)

70G, 2ms

Non-operating Shock

350G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 9YZ164-003

Weight: 1.8 lb

Warranty: 3 Year Manufacturer
