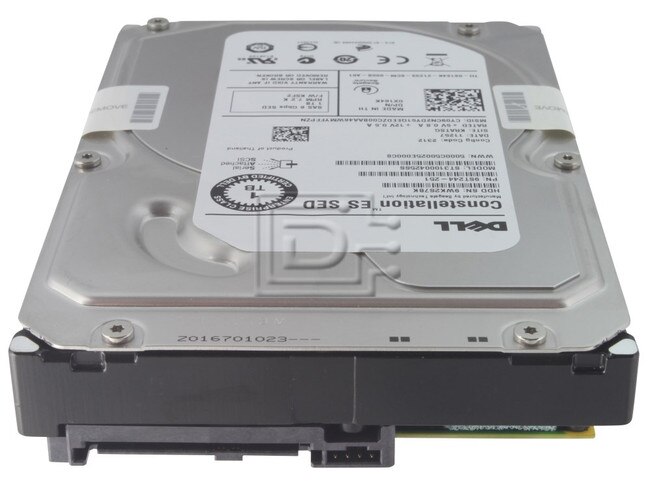

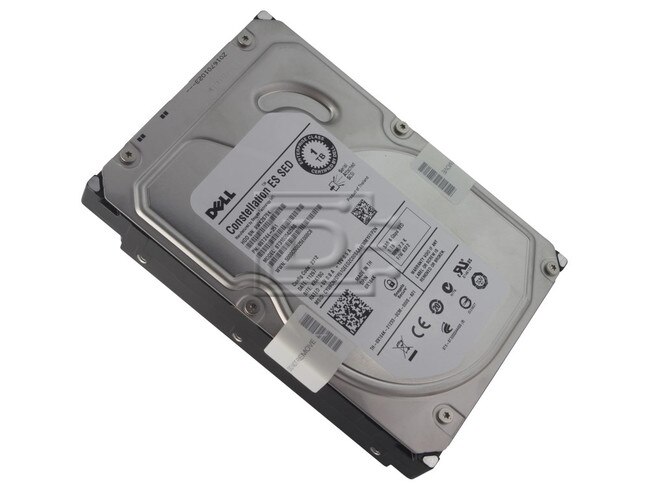

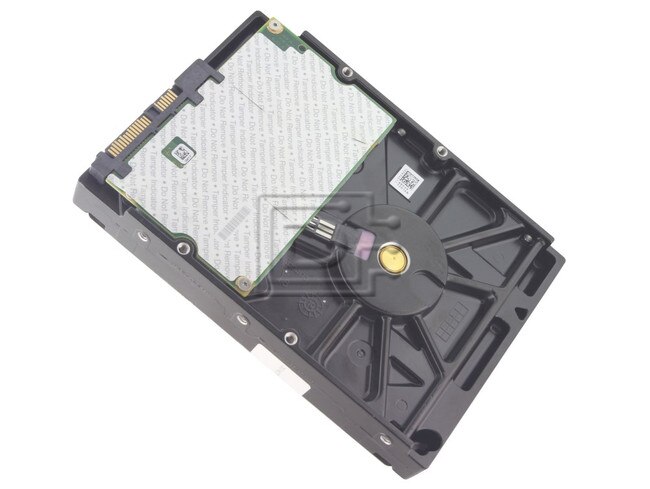

Seagate Constellation ES ST31000425SS 1TB SAS Hard Disk

Seagate Part #/MPN: ST31000425SS

DiscTech Item #: SGT-ST31000425SS-RF-OE-DEL


$139.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$139.00

Enterprise Grade

Capacity: 1TB

Speed: 7.2K RPM

Interface Types: SAS

Form Factor: 3.5" LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 150

Average Seek Time: 8.5 / 9.5

Electrical Interface: SAS-2 6Gbps

On-Board Cache: 16MB

Seagate Constellation ES ST31000425SS 1TB / 1000GB 7.2K 6.0Gbps SED Encryption Serial SCSI / SAS Hard Drive - Refurbished OEM

Overview

Constellation ES drives offer the world’s highest capacity at 2TB while providing enterprise robustness for Tier 2/nearline environments. They are differentiated from 3.5-inch desktop drives by offering enterprise-class reliability and superior data integrity with a UER of 1E10-15. Enterprise-class rotational vibration tolerance provides robust protection from chassis and fan vibrations (RV 12.5 rad/sec 20 to 1500Hz). The drives are offered with either a 3-Gb/s SATA interface or a 6-Gb/s SAS 2.0 interface for superior data protection at industry-leading speeds, along with optional power saving modes with PowerChoice™.

Features and Benefits

  • Fourth-generation, enterprise, nearline drive designed for 24×7 operation
  • Up to 2TB capacity for data-hungry enterprise business applications
  • TCG-compliant, Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes and allows organizations to securely repurpose or sell hard disk drives.
  • Meets regulatory data security compliance requirements and is FIPS 140-2 Validated to protect Sensitive but Unclassified and Protected class data
  • Best-in-class enhanced rotational vibration tolerance ensures unrivaled performance in high-density applications for continuous data access
  • Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
  • Proven reliability with multi-drive firmware maximized for enterprise system availability
  • Robust performance with dual processor technology and ramp load technology
  • Provides business sustainability with Seagate Unified Storage architecture
  • 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity
  • SED Encryption

Best Fit Applications

  • High-capacity data center storage
  • Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
  • Enterprise backup and restore–D2D, virtual tape
  • Centralized surveillance
  • Cloud storage

Dell P/N X164K / 0X164K


Compatibility:

This drive is compatible with any of our SAS drive trays and any of our SAS controllers.

Drive specification

ST31000425SS

Formatted Gbytes (512 bytes/sector)

1000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Encryption

SED

Cache buffer

16

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.5 / 9.5

Track-to-track seek (read / write) ms

0.8 / 1.0

Dimensions (HxLxW) mm

26.1 / 146.99 / 101.6

Weight

0.640 kg

Operating Shock (Read)

70G, 2ms

Non-operating Shock

400G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Current Requirements 12VDC (Read/Write, Idle)

10.8w / 8.0w


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: X164K 0X164K

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
