Seagate Constellation ES ST32000444SS Serial SCSI / SAS Hard Disks

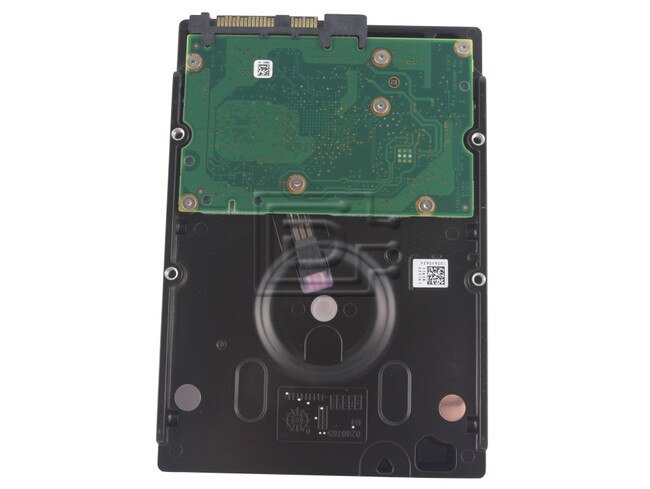

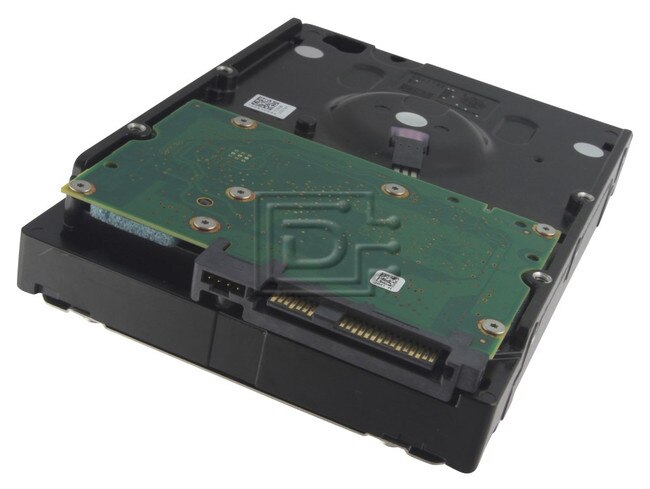

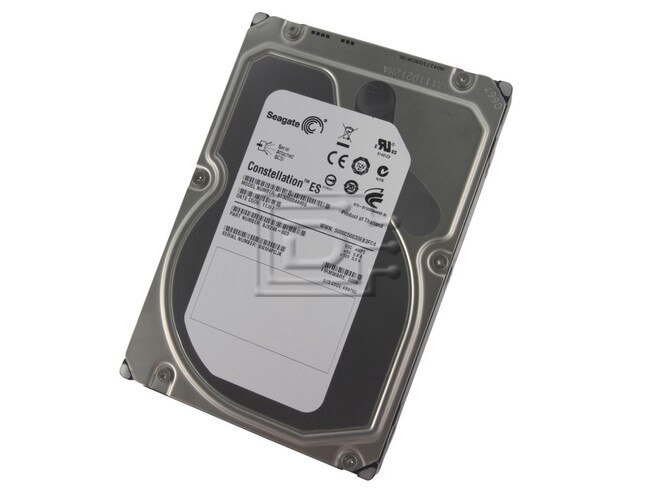

Seagate ST32000444SS SAS Hard Drive Image 1 imageSeagate ST32000444SS SAS Hard Drive Image 2 imageSeagate ST32000444SS SAS Hard Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$144.00

Capacity:2TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-2 6Gbps
RAM:16MB

Description

Seagate Constellation ES ST32000444SS 2TB / 2000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New

Overview

Constellation ES drives offer the world’s highest capacity at 2TB while providing enterprise robustness for Tier 2/nearline environments. They are differentiated from 3.5-inch desktop drives by offering enterprise-class reliability and superior data integrity with a UER of 1E10-15. Enterprise-class rotational vibration tolerance provides robust protection from chassis and fan vibrations (RV 12.5 rad/sec 20 to 1500Hz). The drives are offered with either a 3-Gb/s SATA interface or a 6-Gb/s SAS 2.0 interface for superior data protection at industry-leading speeds, along with optional power saving modes with PowerChoice™.

Features and Benefits

  • Fourth-generation, enterprise, nearline drive designed for 24×7 operation
  • Up to 2TB capacity for data-hungry enterprise business applications
  • Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access
  • Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
  • Proven reliability with multi-drive firmware maximized for enterprise system availability
  • Robust performance with dual processor technology and ramp load technology
  • Provides business sustainability with Seagate Unified Storage architecture
  • 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity

Best Fit Applications

  • High-capacity data center storage
  • Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
  • Enterprise backup and restore–D2D, virtual tape
  • Centralized surveillance
  • Cloud storage
Alternate Part Numbers: 9JW168-001

Compatibility

This drive is compatible with any of our SAS drive trays and any of our SAS controllers.

Specifications

Drive specification

ST32000444SS

Formatted Gbytes (512 bytes/sector)

2000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

16

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.5 / 9.5

Track-to-track seek (read / write) ms

0.8 / 1.0

Dimensions (HxLxW) mm

26.1 / 146.99 / 101.6

Weight

0.71 kg

Operating Shock (Read)

70G, 2ms

Non-operating Shock

400G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Current Requirements 12VDC (Read/Write, Idle)

12.2w / 8.0w

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
