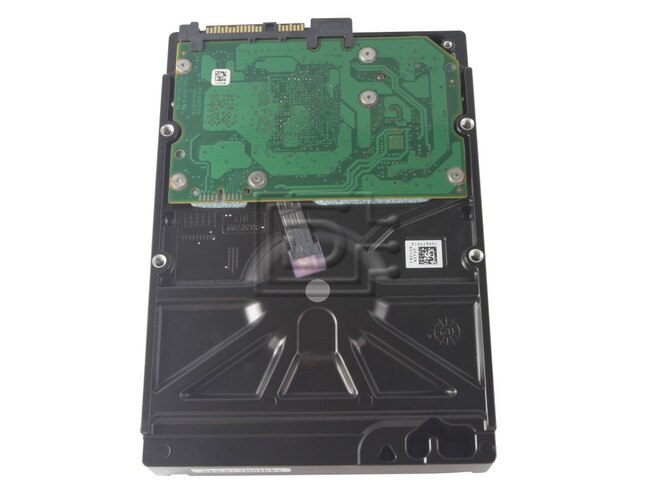

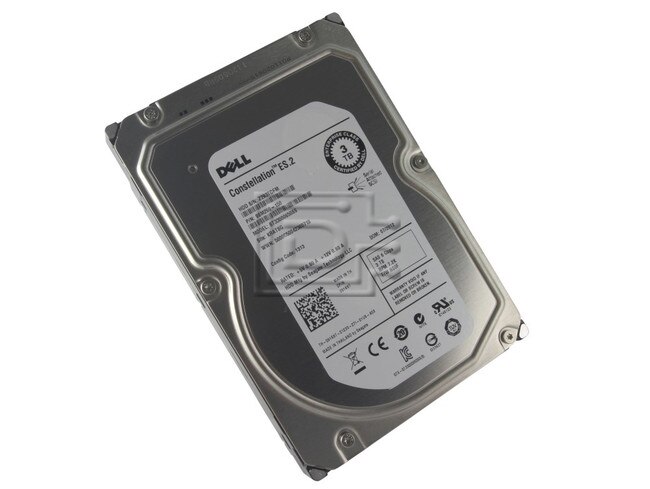

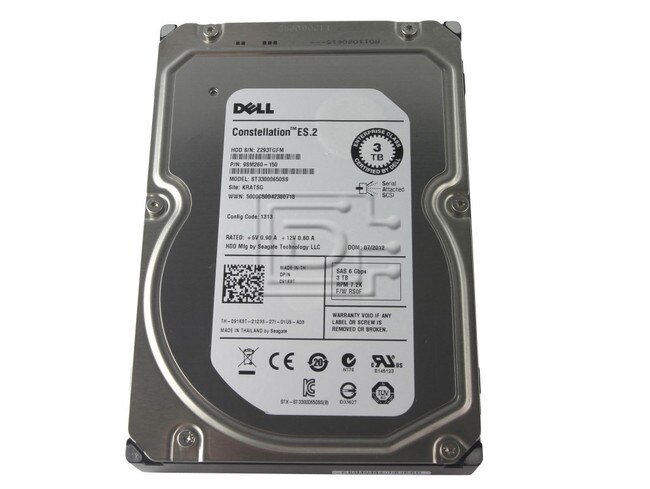

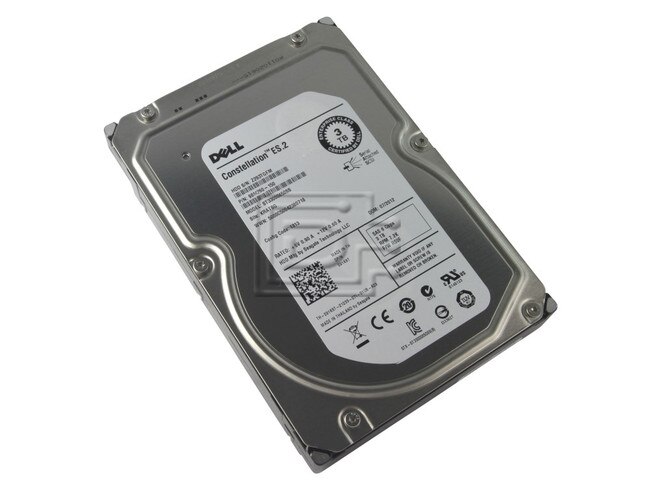

Seagate Constellation ES ST33000650SS Serial SCSI / SAS Hard Disk Drives
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 3TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description
Seagate Constellation ES.2 ST33000650SS 3TB / 3000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - New Pull OEM
Key Advantages
- Highest-capacity enterprise drive for sustaining demanding data growth
- Fifth-generation capacity-optimized drive designed for 24×7 reliability
- SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
- Best-in-class enhanced rotational vibration tolerance ensures consistent performance.
- Improved power and cooling efficiencies with low power consumption and enhanced PowerChoice™ technology
- Multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor and ramp load technologies
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement costs while securely protecting data where it lives—on the drive.
- FIPS (140-2) option provides all the benefits of SED and meets U.S., Canada and U.K. government data encryption compliance requirements.
Best-Fit Applications
- High-capacity bulk-data storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
- Cloud storage
DPN: 91K8T / 091K8T
Compatibility
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Specifications
Drive specification | ST33000650SS |
Formatted Gbytes (512 bytes/sector) | 3000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64 |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Track-to-track seek (read / write) ms | 0.8 / 1.0 |
Dimensions (HxLxW) mm | 26.1 / 146.99 / 101.6 |
Weight | 0.71 kg |
Operating Shock (Read) | 70/40G, 2ms |
Non-operating Shock | 300G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 12.2w / 8.0w |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 91K8T 091K8T
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
Warranty
1 Year DiscTech Warranty
