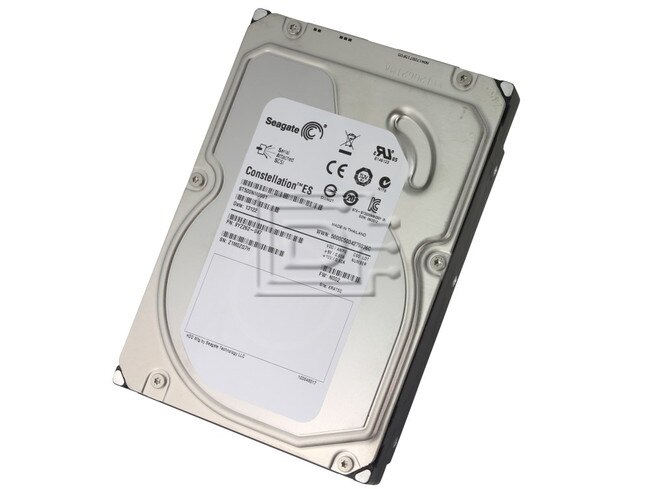

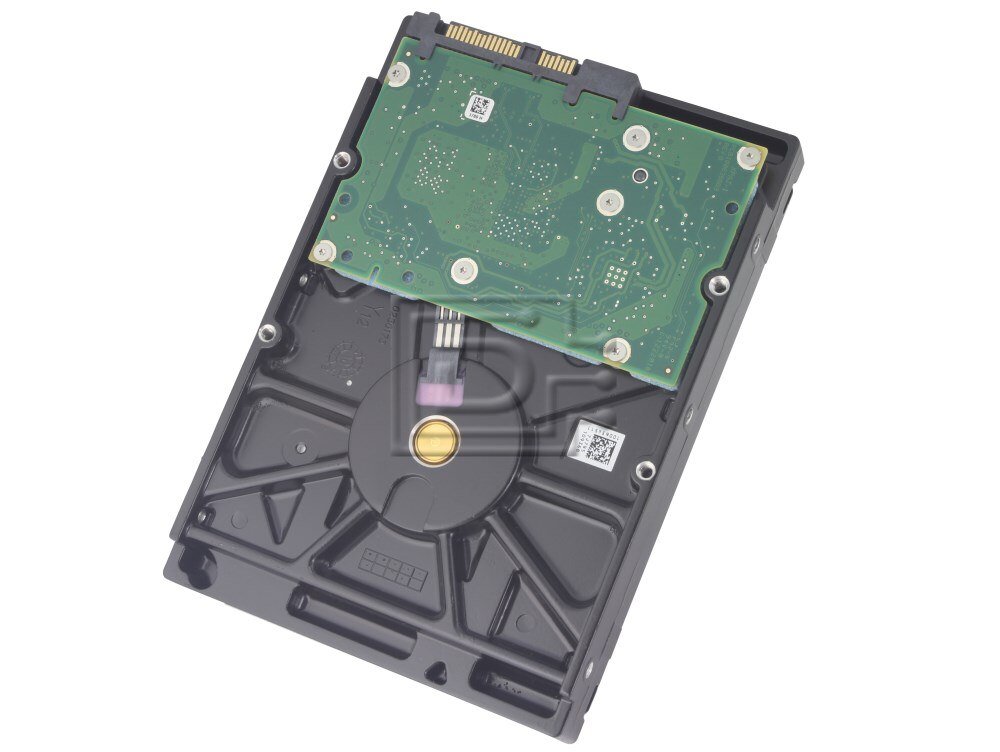

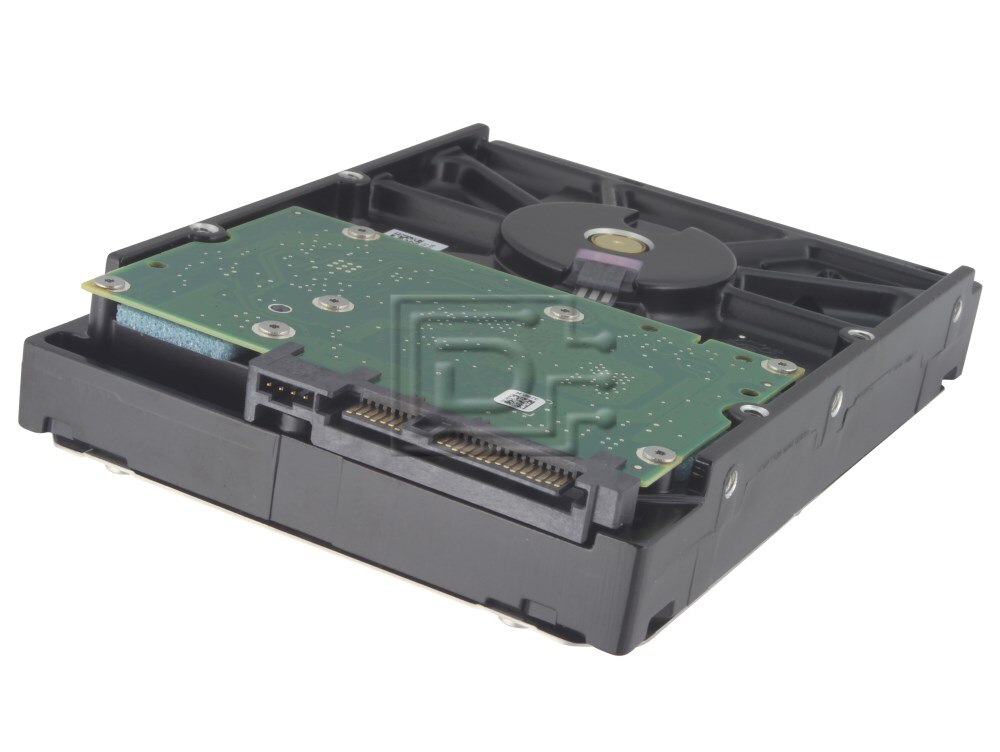

Seagate Constellation ES ST500NM0001 500GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive

Seagate Part #/MPN: ST500NM0001

DiscTech Item #: SGT-ST500NM0001-BN-3Y


$114.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$114.00

Enterprise Grade

Capacity: 500GB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 147

Average Seek Time: 8.5 / 9.5

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Seagate Constellation ES ST500NM0001 500GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New

Alt MPN: 9YZ262-047, 9YZ262-880

Overview

Seagate® Constellation® ES fifth-generation drives lead the industry with a range of high capacity enterprise drive options. Available in both 6Gb/s SAS and SATA interfaces, these drives feature enterprise-class reliability with the power and performance efficiencies that make them ideal for capacity-optimized, 24x7 multi-drive server and storage environments.

Features and Benefits

  • Fifth-generation, enterprise, nearline drive designed for 24×7 operation
  • Up to 2TB capacity for data-hungry enterprise business applications
  • Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access
  • Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
  • Proven reliability with multi-drive firmware maximized for enterprise system availability
  • Robust performance with dual processor technology and ramp load technology
  • Provides business sustainability with Seagate Unified Storage architecture
  • 6Gb/s SAS performance with error detection and correction

Best Fit Applications

  • High-capacity data center storage
  • Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
  • Enterprise backup and restore–D2D, virtual tape
  • Centralized surveillance
  • Cloud storage


Compatibility:

This drive is compatible with any of our SAS drive trays and any of our SAS controllers.

Drive specification

ST500NM0001

Formatted Gbytes (512 bytes/sector)

500

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

64MB

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.5 / 9.5

Average Latency

4.16ms

Dimensions (HxLxW) mm

26.1 / 147 / 101.85

Weight

0.640 kg

Operating Shock (Read)

70G, 2ms

Non-operating Shock

300G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

MTBF

1,200,000 hrs


Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9YZ262-047 9YZ262-880

Weight: 1.8 lb

Warranty: 3 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

3 Year DiscTech Warranty
