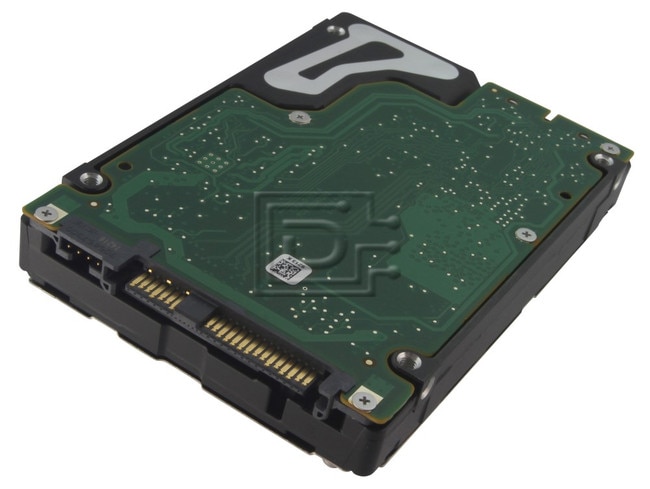

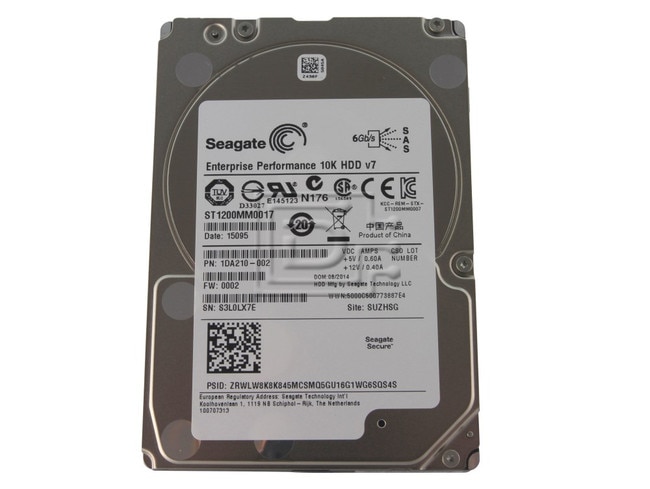

Seagate Enterprise ST1200MM0017 10K.7 1.2TB 10K 2.5" SFF SED SAS Hard Drive

Seagate Part #/MPN: ST1200MM0017

DiscTech Item #: SGT-ST1200MM0017-NP-OE


Enterprise Grade

Capacity: 1.2TB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 204 / 125

Average Seek Time: 2.9

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Compatible Systems: Dell 11th Gen. R710/T610, Dell 10th Gen. 2950 / 6950

Seagate Enterprise Performance ST1200MM0017 10K.7 1200GB 1.2TB 10K 6Gbps 2.5" SFF SED Self-Encrypting Drive Serial SCSI / SAS Hard Drive - New Pull

Alt MPN: 1DA210-002

The Perfect Match of High Capacity and High Performance

  • Delivers 1200GB of high-performance data access for write-intensive applications
  • 2× the capacity of legacy 3.5-inch, 15K-RPM hard drives at the same performance (204MB/s SDR) within a lower power envelope
  • PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for enhanced power consumption.
  • Seagate® RAID Rebuild™ technology option makes RAID recovery faster and safer.
  • Protection Information (PI) protects against inadvertent data change.1
  • Self-Encrypting Drive (SED) models can be used as standard drives or as part of a more secure solution.
  • Seagate Instant Secure Erase (ISE) technology makes it safe, fast, and easy to retire or repurpose drives.
  • High capacity and small footprint enables data centers to keep pace with data growth and optimize data center real estate.
  • FIPS 140-2, Level 2 certified SED models—only from Seagate—make FIPS 140-2 compliance quick and easy for U.S. and Canadian government agencies.2,3 converging disparate interfaces, form factors and security standards.

Best-Fit Applications

  • Mission-critical servers and external storage arrays
  • Power- and space-constrained data centers
  • Green IT and drive-retirement cost reduction initiatives
  • Compliance or data security initiatives
  • Migration from 3.5-inch drive systems to next-generation technology


All SAS compatible servers including (This list is not all inclusive):

Dell PowerEdge R710, R510, R610, R710, T610, T710, R910, 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120, MD1220 Storage Arrays.

Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

SED Model Number ST1200MM0017
SED FIPS 140-2 Model Number ST1200MM0027
Model Name Enterprise Performance 10K HDD v7
Interface 6Gb/s SAS
Formatted 512 Bytes/Sector (GB) 1200
External Transfer Rate (MB/s) 600
Spindle Speed (RPM) 10K
Average Latency (ms) 2.9
Sustained Transfer Rate Outer to Inner Diameter (MB/s) Cache, Multisegmented (MB 204 to 125
Disks 4
Heads 8
Nonrecoverable Read Errors per Bits Read 1 per 10E16
Annualized Failure Rate (AFR) 0.44%
Power Management
Typical Op (A) +5V/+12V 0.38/0.51
Power Idle (W) 4.6
Temperature, Operating (°C) 5 to 55
Temperature, Nonoperating (°C) –40 to 70
Shock, Operating: 11ms (Gs) 40
Shock, Nonoperating: 2ms (Gs) 400
Acoustics Idle (bels—sound power) 3.4
Vibration, Operating: <500Hz (Gs) 0.5
Vibration, Nonoperating: <500Hz (Gs) 3
Height (in/mm, max) 0.591/15.00
Width (in/mm, max) 2.760/70.10
Depth (in/mm, max) 3.955/100.45
Weight (lb/kg) 0.450/0.204
Carton Unit Quantity 30
Cartons per Pallet 50
Cartons per Layer 10

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1DA210-002

Weight: 0.5 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
