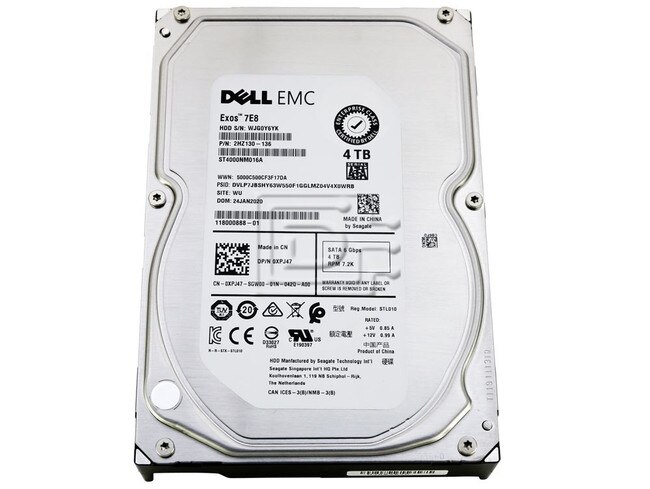

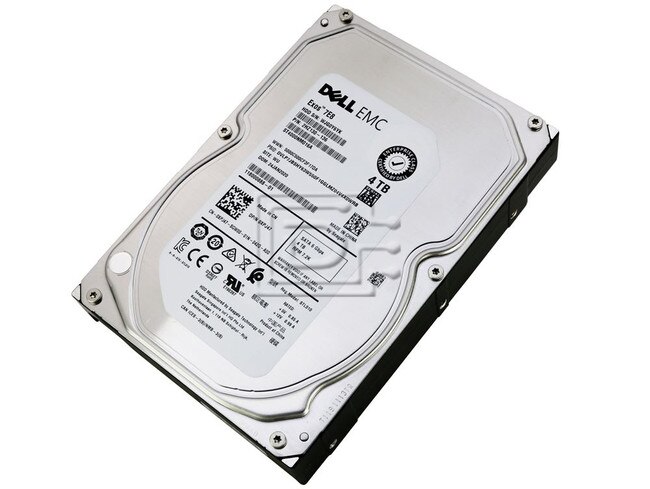

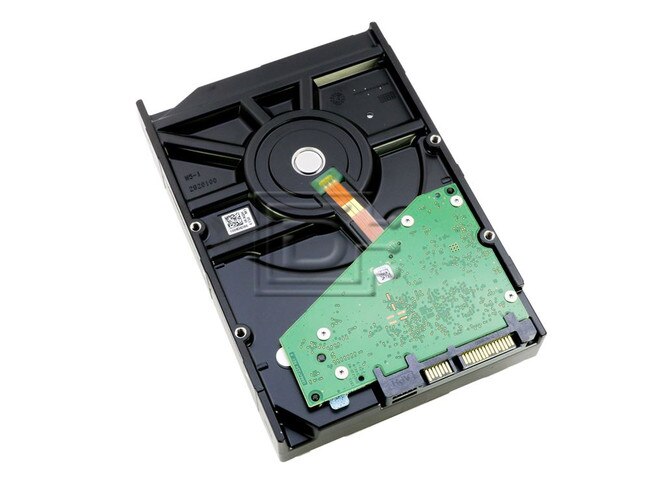

Dell EMC XPJ47 / Seagate Exos 7E8 ST4000NM016A 4TB SATA ISE Hard Drive

Seagate Part #/MPN: ST4000NM016A

DiscTech Item #: SGT-ST4000NM016A-RF-OE-DEL

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 4TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 4.16ms

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Dell EMC XPJ47 / 0XPJ47 / Seagate Exos 7E8 ST4000NM016A 4TB 7.2K 6Gbps 3.5" SATA ISE Enterprise Hard Drive - Refurbished OEM

Dell EMC XPJ47 / 0XPJ47 / Seagate Exos 7E8 ST4000NM016A / 2HZ130-136 4TB / 4000GB 7.2K 6Gbps 3.5" SATA / Serial ATA ISE / Instant Secure Erase Enterprise HDD / Hard Disk Drive - Refurbished OEM

Exos 7E8 Trusted. Efficient. Versatile.
The Seagate® Exos™ 7E8 enterprise hard drive confidently stores up to 8TB of data without sacrificing performance. The secure, high-capacity, high-performance drives are optimized for demanding enterprise bulk data applications.

Enterprise Drive for Bulk Data Applications
Exos 7E8 hard drives support up to 8TB per drive, offering bulk data storage for data center infrastructures requiring a highly reliable enterprise hard drive. Exos 7E8 provides cost effective, reliable access to unstructured data. Built on field-proven 10th-generation conventional magnetic recording (CMR) technology, the Exos 7E8 drive helps to catalyze the datasphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security, and low TCO for demanding 24×7 operations.
Robust Bulk Data Storage for a 24×7 World
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550TB per year—10× that of desktop hard drives. With state-of-the-art cache, on-the-fly error-correction algorithms, and rotational vibration design, the Exos 7E8 helps ensure consistent performance in replicated and RAID multi-drive systems
High Performance for Mainstream Data Center Applications
Meet your storage workload requirements in the most efficient and cost-effective data center footprint on the market today. The Exos 7E8 delivers easy integration into bulk storage systems with 12Gb/s SAS and SATA 6Gb/s interface options. With user-definable innovative technology advancements like PowerChoice and Seagate RAID Rebuild, you can tailor your nearline storage requirements for even greater improvements in lowering your TCO.
Enhanced Reliability, Data Protection, and Security
Advanced security features help protect data where it lives—on the drive. Exos 7E8 prevents unauthorized drive access and safeguards stored data with security features that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive, and government-grade FIPS/Common Criteria tamper-resistent hard drive.
2 Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.

ALT MP/N: 2HZ130-136 XPJ47 / 0XPJ47


This drive is compatible with any system that accepts 3.5" SATA 4TB 7.2K Drives.

Seagate Exos 7E8
Seagate Secure SED-FIPS ModelST4000NM016A
Dell Part NumberXPJ47
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)6.0, 3.0
Max Sustained Transfer Rate OD215MB/s
Average Latency (ms)4.16
Rotational Vibration @1500Hz (rad/s)12.5
RELIABILITY/Data Integrity
Vibration, Nonoperating: 2Hz to 500Hz (Grms) 2.27
Mean Time Between Failures (MTBF, hours) 2,000,000
Reliability Rating @ Full 24×7 Operation (AFR) 0.44%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760
Sector Size (Bytes per Logical Sector)512
Power Consumption
Idle Power, Average (W)5.38
Typical Operating, Random Read (W)11.33
Power Supply Requirements+12V and +5V
Temperature, Operating (°C)5°C-60°C
Shock, Operating 2ms Read/Write (Gs)70/40Gs
Shock, Nonoperating, (1ms/2ms) (Gs)150/300
Height (in/mm, max)1.028in/26.1mm
Width (in/mm, max)4.010in/101.85mm
Depth (in/mm, max)5.787in/147.0mm
Weight (g/lb)649g /1.43lbs

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 2HZ130-136 XPJ47 0XPJ47

Weight: 1.8 lb

Warranty: 1 Year DiscTech
