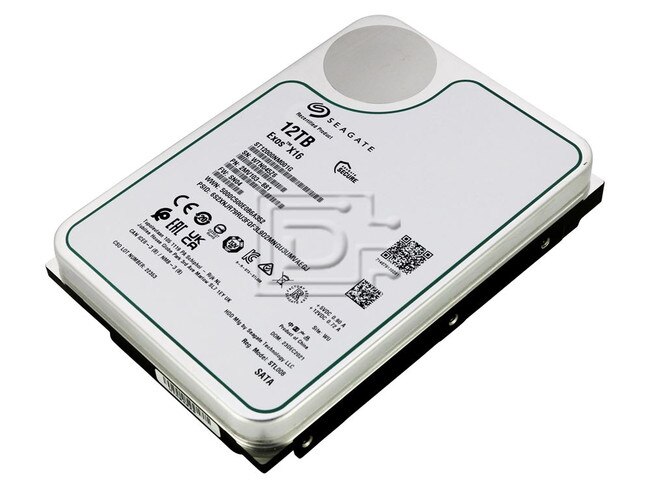

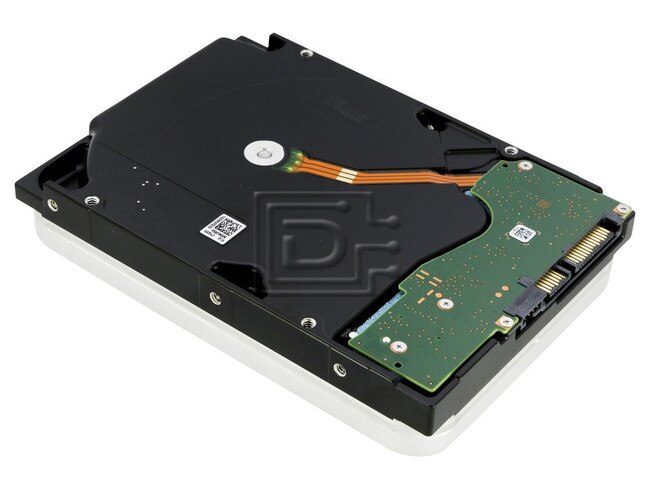

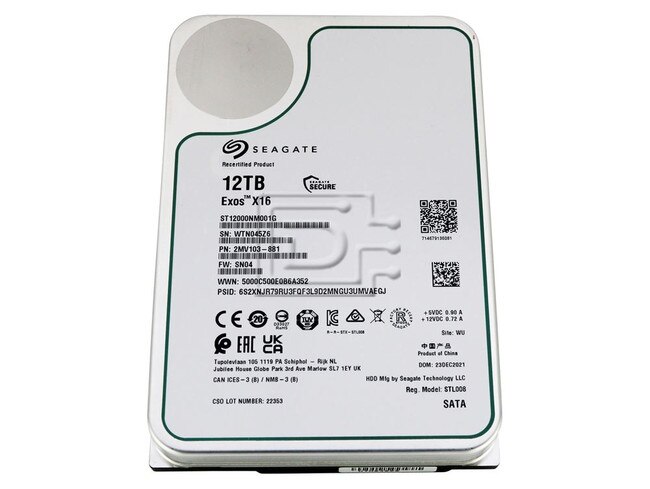

Seagate Exos X16 ST12000NM001G 12TB 3.5" LFF 6Gbps 7.2K Enterprise SATA Hard Disk Drives

Seagate ST12000NM001G 2MV103-002 SATA Hard Disk Drive Image 1 image
  • Factory Refurbished
    Condition Levels Explained

    The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • In Stock:5
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 6 Month DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$189.00

Capacity:12TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB

Description

Seagate Exos X16 ST12000NM001G 12TB 3.5" LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Disk Drives - Factory Refurbished Seagate Exos X16 ST12000NM001G 2MV103-002 12TB 3.5" LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Disk Drives - Factory Refurbished

EXOS X16
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Best-Fit Applications
  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance
• All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.

MPN: ST12000NM001G 2MV103-002

Compatibility: Compatible with systems that support 12TB 3.5" SATA HDDS

Specifications

Exos Enterprise X16
Standard Model FastFormat (512e/4Kn)ST12000NM001G
Interface6Gb/s SATA III
Capacity12TB / 12000GB
Features
Helium Sealed-Drive DesignYes
Protection Information (T10 DIF)---
SuperParityYes
Low HalogenYes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 2048 Firmware VerificationYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
4Kn Sector Size (Bytes per Sector)
  • 4096
Performance
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 261
  • 249
Random Rewad/Write 4K QD03 WCD (IOPS)170/440
Average Latency (ms)4.16
Interface PortsSingle
Rotational Vibration @ 20-1500Hz (rad/sec)12.5
Power Consumption
Idle A (W) Average
  • 5.00W
Max Operating, Random Read/Write 4K/16Q (W)
  • 9.5
  • 6.0
Power Supply Requirements+12 V and +5 V
Evrironmental/Temperature
Temperature, Operating (°C)5°C - 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
Shock, Operating Read/Write (Gs)50
Shock, Nonoperating, 1ms/2ms (Gs)200
Physical
Height (in/mm, max)1.028in/26.1mm
Weight (in/mm, max)4.010in/101.85mm
Depth (in/mm, max)5.787in/147.0mm
Weigt (g/lb)690g/1.521lb
Click here to view the manufacturer's item description/brochure

Alternate MPNs: 2MV103-002

Weight: 1.8 lb

Warranty: 6 Month DiscTech

Condition

Factory Refurbished

Warranty

6 Month DiscTech Warranty
