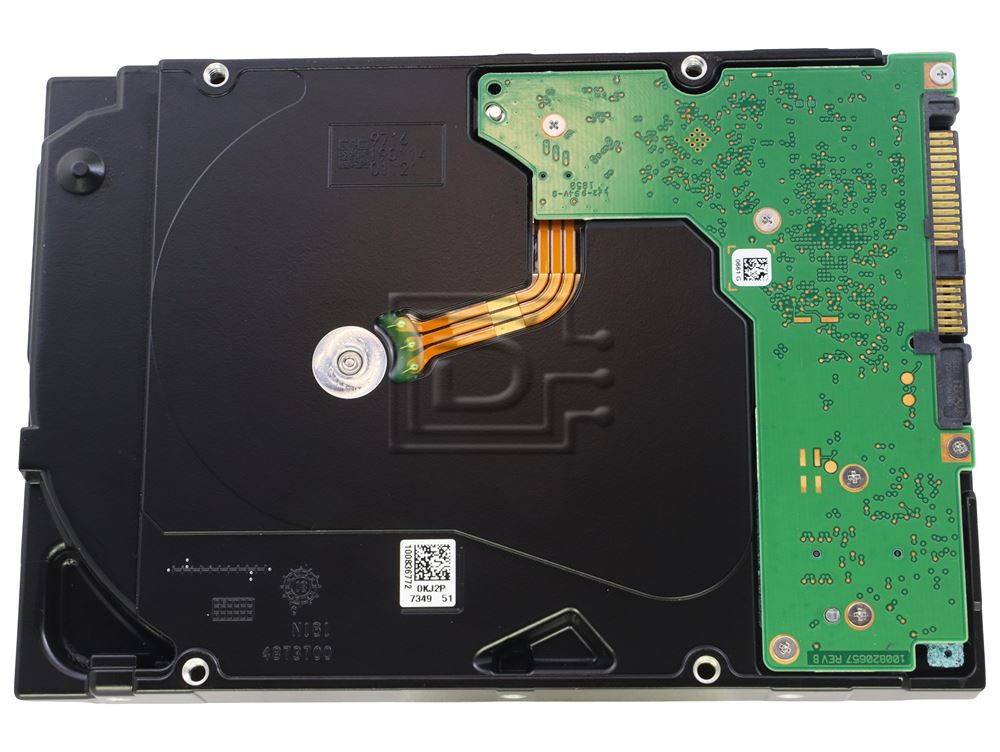

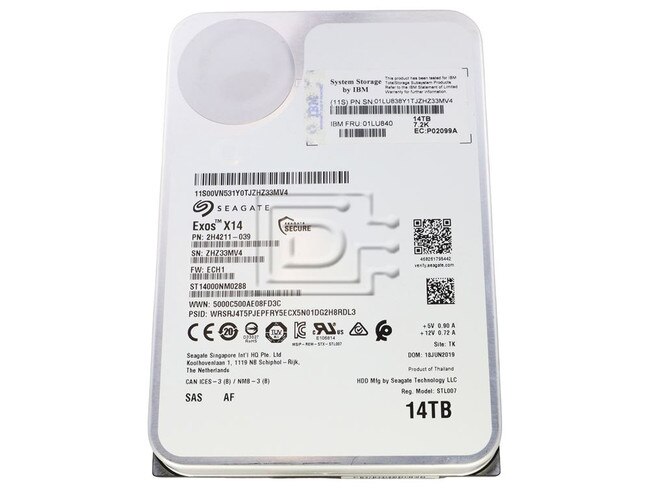

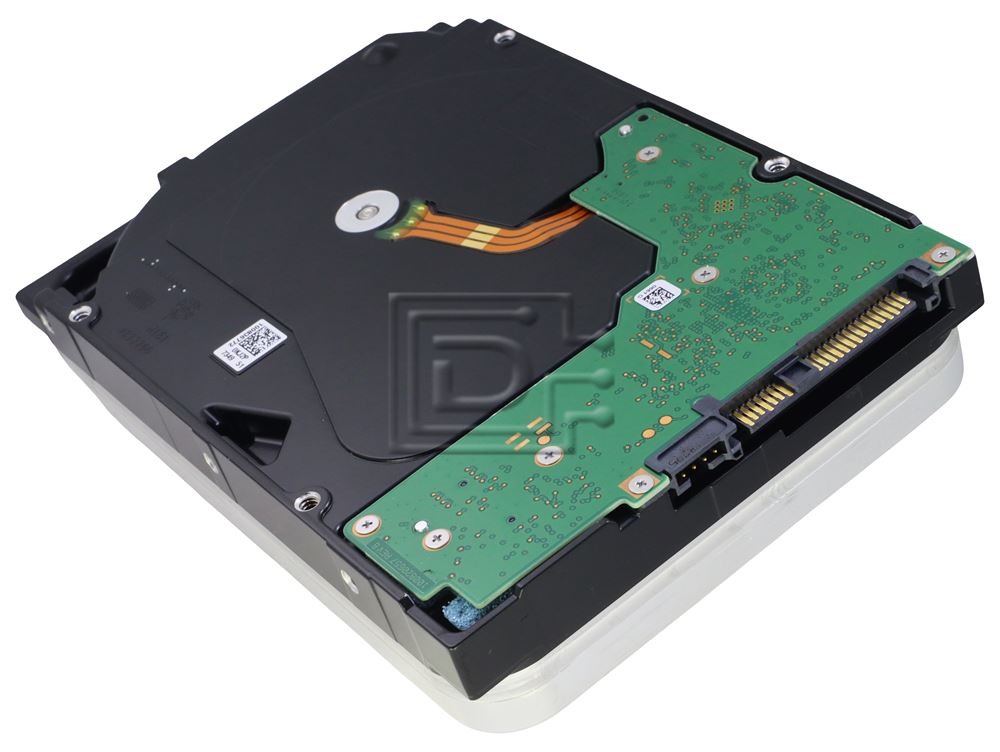

Seagate Exos X14 ST14000NM0288 14TB 3.5" LFF 12Gbps 7.2K RPM FastFormat Enterprise SAS Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:121Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 14TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 256MB |
Description
Seagate Exos X14 ST14000NM0288 14TB LFF 12Gbps 7.2K RPM FastFormat Enterprise SAS Hard Drive - Refurbished
Seagate Exos X14 ST14000NM0288 14TB 4Kn 3.5" LFF 12Gbps 7.2K RPM FastFormat Enterprise SAS Hard Drive IBM 01LU840 - Refurbished
EXOS X14 and Exos X14z
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.
Compatibility:
Compatible with any server or workstation that supports 3.5" SAS hard drives.
Specifications
| Exos Enterprise X14 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST14000NM0288 IBM 01LU840 |
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Envrironmental/Temperature | |
| Physical | |
| Interface | 12Gb/s SAS |
| Capacity | 14TB / 14000GB |
| Helium Sealed-Drive Design | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 2048 Firmware Verification | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) |
|
| 4Kn Sector Size (Bytes per Sector) |
|
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) |
|
| Max Sustainable Transfer Rate |
|
| Random Rewad/Write 4K QD03 WCD (IOPS) | 170/418 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Idle A (W) Average |
|
| Max Operating, Random Read/Write 4K/16Q (W) |
|
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.010in/101.85mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 690g/1.521lb |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 01LU840 2H4211-039
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
