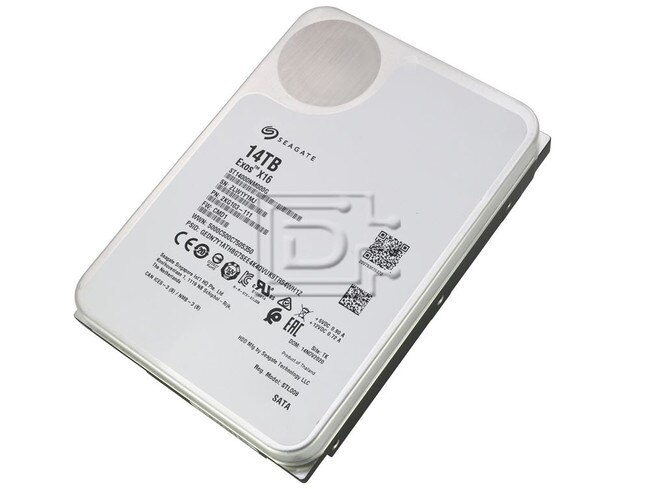

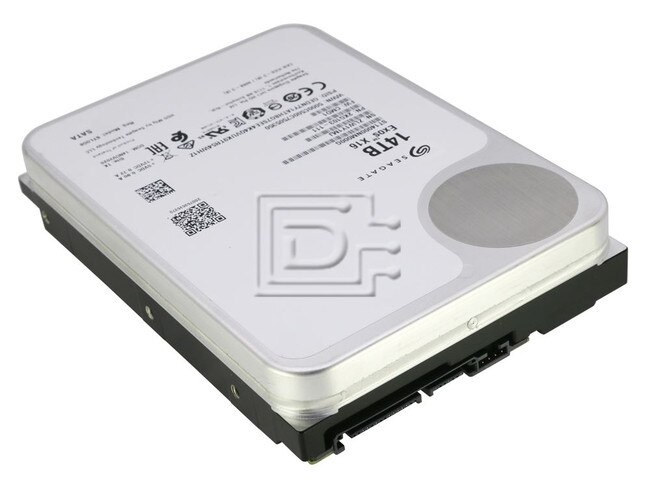

Seagate Exos X16 ST14000NM000G 14TB 6Gbps 7.2K SATA HDD

Seagate Part #/MPN: ST14000NM000G

DiscTech Item #: SGT-ST14000NM000G-BN-OE


$228.00
$228.00

Enterprise Grade

Capacity: 14TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 261/249

Average Seek Time: 4.16

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Seagate Exos X16 ST14000NM000G / 2KG103-111 14TB 3.5" 6Gbps 7.2K Enterprise 512e SATA HDD - Brand New

Seagate Exos X16 ST14000NM000G / 2KG103-111 14TB / 14000 3.5" LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation Fast Format SATA / Serial ATA HDD / Hard Drive - Brand New

Equivalent to ST14000NM001G

Alt PN: 2KG103-111



Scalable. Responsive. Innovative.
Exos X16

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

Industry’s first 16TB drive for 33% more petabytes per rack.

Highest 16TB hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications

Hyperscale SATA model tuned for large data transfers and low latency

PowerBalance feature optimizes Watts/TB

Helium sealed-drive design delivers lower total cost of ownership through lower power and weight.

Next-generation helium side-sealing weld technology for added handling robustness and leak protection.

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security: Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance

Compatibility:

This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.

Exos Enterprise X16
Standard Model FastFormat (512e/4Kn)ST14000NM000G
Interface6Gb/s SATA
Capacity14TB / 14000GB
Features
Helium Sealed-Drive DesignYes
Protection Information (T10 DIF)---
SuperParityYes
Low HalogenYes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 2048 Firmware VerificationYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)512
4Kn Sector Size (Bytes per Sector)4096
Performance
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 261
  • 249
Random Rewad/Write 4K QD03 WCD (IOPS)4.16
Average Latency (ms)4.16
Interface PortsSingle
Rotational Vibration @ 20-1500Hz (rad/sec)12.5
Power Consumption
Idle A (W) Average5.00W
Max Operating, Random Read/Write 4K/16Q (W)
  • 10.0
  • 6.3
Power Supply Requirements+12 V and +5 V
Evrironmental/Temperature
Temperature, Operating (°C)5°C - 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
Shock, Operating Read/Write (Gs)50
Shock, Nonoperating, 1ms/2ms (Gs)200
Physical
Height (in/mm, max)1.028in/26.1mm
Weight (in/mm, max)4.010in/101.85mm
Depth (in/mm, max)5.787in/147.0mm
Weigt (g/lb)670g/1.477lb

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: ST14000NM001G 2KG103-111

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
