Seagate Part #/MPN: ST14000NM003G
DiscTech Item #: SGT-ST14000NM003G-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 14TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 261/249
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

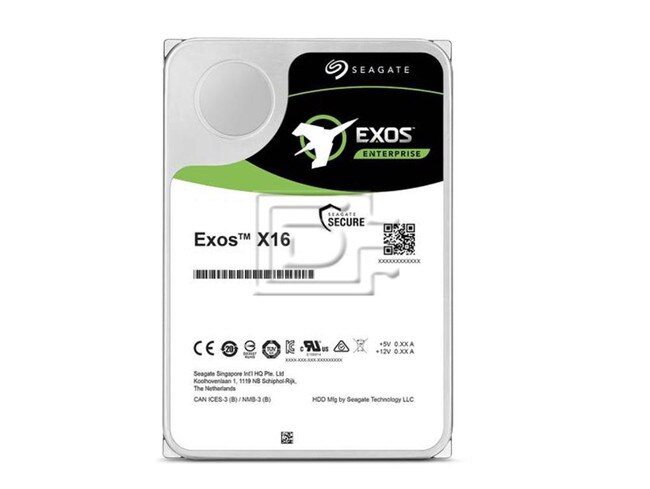

Seagate Exos X16 ST14000NM003G 14TB 3.5-Inch LFF 6Gbps 7.2K RPM Enterprise 512e Fast Format SED SATA Hard Drive - Brand New
Seagate Exos X16 ST14000NM003G 14TB / 14000GB 3.5" LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation Fast Format SED / Self-Encrypted SATA / Serial ATA HDD / Hard Drive - Brand New
Scalable. Responsive. Innovative.
Exos X16
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X16 enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency
Industry’s first 16TB drive for 33% more petabytes per rack.
Highest 16TB hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimizes Watts/TB
Helium sealed-drive design delivers lower total cost of ownership through lower power and weight.
Next-generation helium side-sealing weld technology for added handling robustness and leak protection.
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security: Seagate Secure features for safe, affordable, fast and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.
Exos Enterprise X16 | |
---|---|
SED Model FastFormat (512e/4Kn) | ST14000NM003G |
Interface | 6Gb/s SATA |
Capacity | 14TB / 14000GB |
Features | |
Helium Sealed-Drive Design | Yes |
Protection Information (T10 DIF) | --- |
SuperParity | Yes |
Low Halogen | Yes |
PowerChoice Technology | Yes |
PowerBalance Technology | Yes |
Hot-Plug Support | Yes |
Cache, Multisegmented (MB) | 256 |
Organic Solderability Preservative | Yes |
RSA 2048 Firmware Verification | Yes |
Reliability/Data Integrity | |
Mean Time Between Failures (MTBF, hours) | 2,500,000 |
Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
Power-On Hours per Year (24×7) | 8760 |
512e Sector Size (Bytes per Sector) | 512 |
4Kn Sector Size (Bytes per Sector) | 4096 |
Performance | |
Spindle Speed (RPM) | 7200 |
Interface Access Speed (Gb/s) | |
Max Sustainable Transfer Rate | |
Random Rewad/Write 4K QD03 WCD (IOPS) | 170/440 |
Average Latency (ms) | 4.16 |
Interface Ports | Single |
Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
Power Consumption | |
Idle A (W) Average | 5.00W |
Max Operating, Random Read/Write 4K/16Q (W) | |
Power Supply Requirements | +12 V and +5 V |
Evrironmental/Temperature | |
Temperature, Operating (°C) | 5°C - 60°C |
Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
Shock, Operating Read/Write (Gs) | 50 |
Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
Physical | |
Height (in/mm, max) | 1.028in/26.1mm |
Weight (in/mm, max) | 4.010in/101.85mm |
Depth (in/mm, max) | 5.787in/147.0mm |
Weigt (g/lb) | 670g/1.477lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
