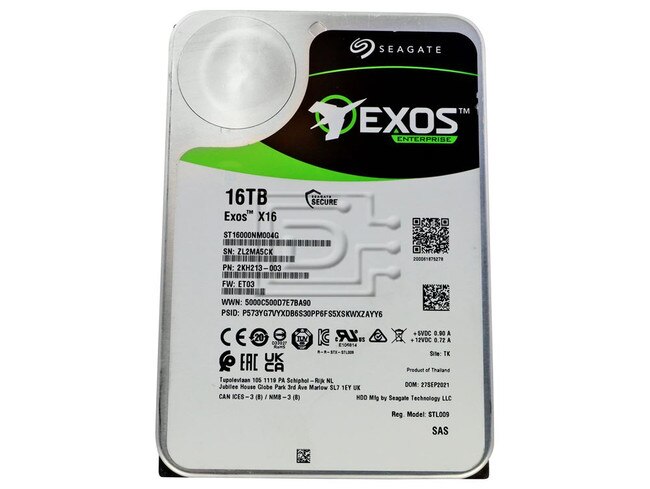

Seagate Exos X16 ST16000NM004G 16TB 512e SED SAS Hard Drive

Seagate Part #/MPN: ST16000NM004G

DiscTech Item #: SGT-ST16000NM004G-BN-5Y


$499.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$499.00

Enterprise Grade

Capacity: 16TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 261/249

Average Seek Time: 4.16

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 256MB

Seagate Exos X16 ST16000NM004G 16TB 3.5-Inch LFF 12Gbps 7.2K RPM Enterprise 512e Fast Format SED SAS Hard Drive - Brand New

Seagate Exos X16 ST16000NM004G 16TB / 16000GB 3.5" LFF / Large Form Factor 12.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation Fast Format SED / Self-Encrypting SAS / Serial Attached SCSI HDD / Hard Drive - Brand New

Scalable. Responsive. Innovative.
Exos X16

Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

Industry’s first 16TB drive for 33% more petabytes per rack.

Highest 16TB hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications

Hyperscale SATA model tuned for large data transfers and low latency

PowerBalance feature optimizes Watts/TB

Helium sealed-drive design delivers lower total cost of ownership through lower power and weight.

Next-generation helium side-sealing weld technology for added handling robustness and leak protection.

Digital environmental sensors to monitor internal drive conditions for optimal operation and performance

Data protection and security: Seagate Secure features for safe, affordable, fast and easy drive retirement

Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance


    Compatibility:

    This drive is compatible with servers and arrays that accept 3.5inx1.0in LFF SAS drives

Exos Enterprise X16
SED Model FastFormat (512e/4Kn)ST16000NM004G
Interface12Gb/s SAS
Capacity16TB / 16000GB
Features
Helium Sealed-Drive DesignYes
Protection Information (T10 DIF)Yes
SuperParityYes
Low HalogenYes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 2048 Firmware VerificationYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
  • 520
  • 528
  • 4Kn Sector Size (Bytes per Sector)
  • 4096
  • 4160
  • 4224
  • Performance
    Spindle Speed (RPM)7200
    Interface Access Speed (Gb/s)
  • 12.0
  • 6.0
  • 3.0
  • Max Sustainable Transfer Rate
  • 261
  • 249
  • Random Rewad/Write 4K QD03 WCD (IOPS)170/440
    Average Latency (ms)4.16
    Interface PortsDual
    Rotational Vibration @ 20-1500Hz (rad/sec)12.5
    Power Consumption
    Idle A (W) Average
  • 5.3W
  • 5.00W
  • Max Operating, Random Read/Write 4K/16Q (W)
  • 10.0
  • 6.2
  • Power Supply Requirements+12 V and +5 V
    Evrironmental/Temperature
    Temperature, Operating (°C)5°C - 60°C
    Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
    Shock, Operating Read/Write (Gs)50
    Shock, Nonoperating, 1ms/2ms (Gs)200
    Physical
    Height (in/mm, max)1.028in/26.1mm
    Weight (in/mm, max)4.010in/101.85mm
    Depth (in/mm, max)5.787in/147.0mm
    Weigt (g/lb)670g/1.477lb

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
