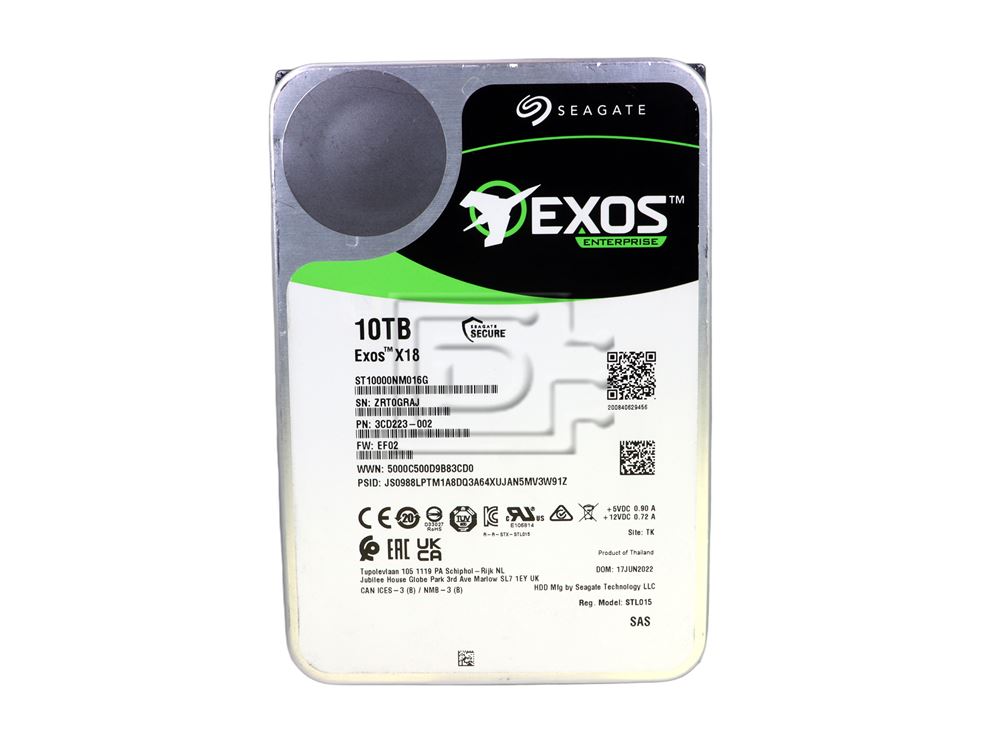

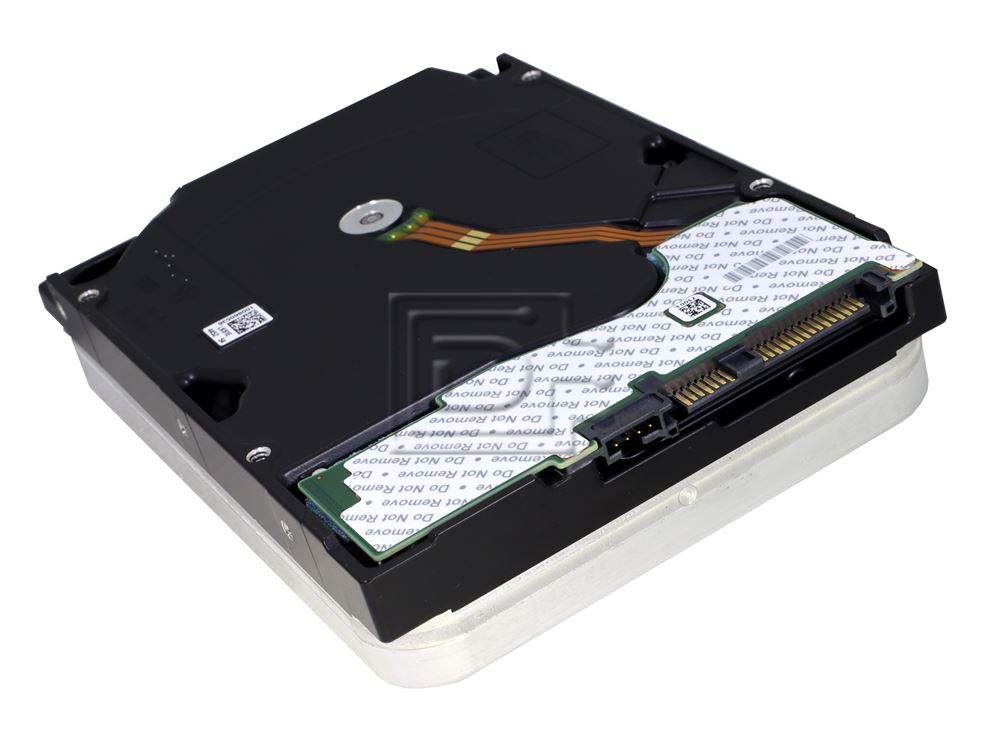

Seagate Exos X18 ST10000NM016G 10TB Enterprise SED SAS Hard Drive
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 10TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 256MB |
Description
Seagate ST10000NM016G 10TB 3.5" LFF 12Gbps 7.2K RPM Enterprise 512e SED FIPS SAS Hard Drive - Refurbished
Seagate Exos X18 ST10000NM016G 10TB / 10000GB 3.5" LFF / Large Form Factor 12.0 Gb/s 7200 RPM Enterprise 512e / 512 Emulation SED / Self-Encrypting SAS / Hard Drive - Refurbished
Enterprise Capacity 3.5 HDD (Exos X18)
Maximum Storage Capacity for Highest Rack Space Efficiency
- offers the highest capacity available for more petabytes
per rack - Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications
- Hyperscale model tuned for large data transfers and low latency
- Proven helium side-sealing weld technology for added handling robustness and leak protection
- PowerBalance™ feature optimizes IOPS/Watt
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security— Seagate Secure™ features for safe, affordable, fast, and easy drive retirement
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility
This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.
Specifications
| Enterprise Capacity 3.5 HDD (Exos X18) | |
|---|---|
| SED Model (512e) | ST10000NM016G |
| Specification | |
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Environmental | |
| Physical | |
| Capacity | 10TB / 10,000GB |
| Interface | SAS 12Gb/s |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| Protection Information (T10 DIF) | Yes |
| Super Parity | Yes |
| PowerChoice™/Idle Power Technology | Yes |
| PowerChoice™/Power/Performance Technology | Yes |
| Low Halogen | Yes |
| Hot Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliability Rating@ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24x7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 270MB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170 550 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotational Vibration@ 1500Hz (rad/s) | 12.5 |
| Idle A (W) Average | 4.9W |
| Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% | 8.0 |
| Max Operating Power, Random Read 4K/16Q (W) | 9.0 |
| Power Supply Requirements | +12v AND &PLUS5 V |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 50 |
| Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
| Height (mm/in, max) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
