Seagate Part #/MPN: ST14000NM000J
DiscTech Item #: SGT-ST14000NM000J-BN-5Y
- Brand New
- Warranty:5 Year Manufacturer
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 14TB
Speed: 7.2K RPM
Interface Types: SATA
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 261/249
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6Gbps
On-Board Cache: 256MB

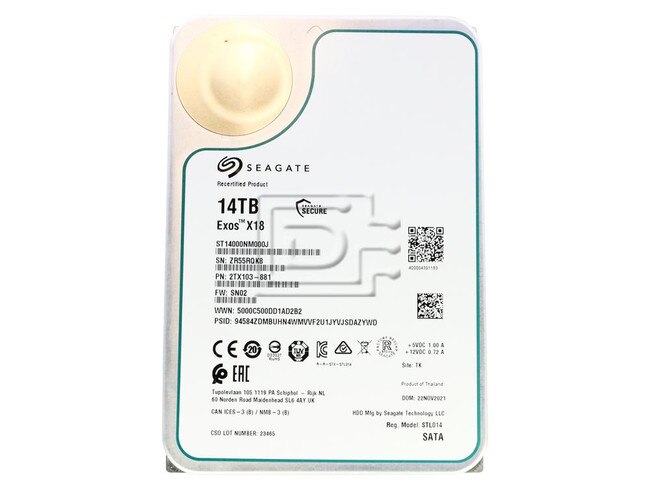

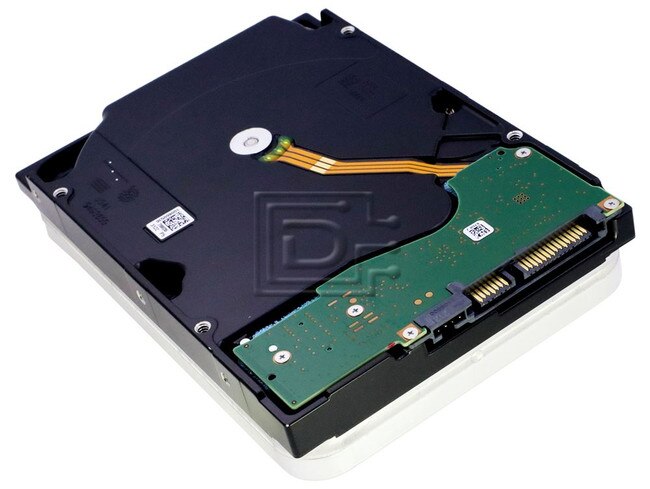

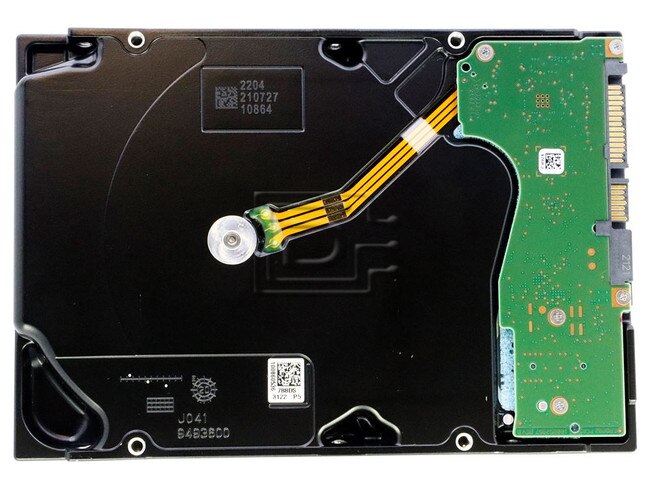

Seagate Exos X18 ST14000NM000J 14TB 3.5" LFF 6Gbps 7.2K RPM Enterprise 512e Fast Format SATA Hard Drive - Brand New
Seagate Exos X18 ST14000NM000J 14TB 3.5" LFF 6Gbps 7.2K RPM Enterprise 512e Fast Format SATA Hard Drive - Brand New
Scalable. Responsive. Innovative.
Exos X18
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate X class, the Exos X18 enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency
Highest hard drive performance with enhanced caching, making it perfect for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in large capacity SATA Drives.
| Exos Enterprise X18 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST14000NM000J |
| Interface | 6Gb/s SATA |
| Capacity | 14TB / 14000GB |
| Features | |
| Helium Sealed-Drive Design | Yes |
| Recording Type | CMR |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 2048 Firmware Verification | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) |
|
| Max Sustainable Transfer Rate |
|
| Random Rewad/Write 4K QD03 WCD (IOPS) | 170 / 550 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Power Consumption | |
| Idle A (W) Average | 4.9W |
| Max Operating, Random Read/Write 4K/16Q (W) |
|
| Power Supply Requirements | +12 V and +5 V |
| Evrironmental/Temperature | |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 50 |
| Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
| Physical | |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.010in/101.85mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
5 Year Manufacturer Warranty
