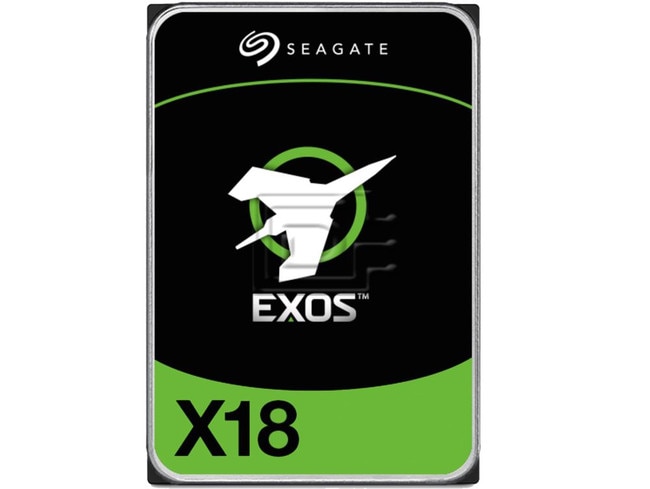

Seagate Exos X18 ST16000NM005J 16TB 3.5" LFF 6Gbps 7.2K Enterprise 512e SAS HDD
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 6 Month DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 16TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 256MB |
Description
Seagate Exos X18 ST16000NM005J / 2TW103-881 16TB 3.5" LFF 6Gbps 7.2K Enterprise 512e SAS HDD - Factory Recertified
EXOS X18
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X18 enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
• All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.
Compatibility
Compatible with systems that support 16TB 3.5" SAS HDDS
Specifications
| Exos Enterprise X18 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST16000NM005J |
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Evrironmental/Temperature | |
| Physical | |
| Interface | 12Gb/s SAS |
| Capacity | 16TB / 16000GB |
| Helium Sealed-Drive Design | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 2048 Firmware Verification | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) |
|
| 4Kn Sector Size (Bytes per Sector) |
|
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) |
|
| Max Sustainable Transfer Rate |
|
| Random Rewad/Write 4K QD03 WCD (IOPS) | 170/418 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Idle A (W) Average |
|
| Max Operating, Random Read/Write 4K/16Q (W) |
|
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.010in/101.85mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 690g/1.521lb |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 6 Month DiscTech
Condition
Factory Refurbished
Warranty
6 Month DiscTech Warranty
