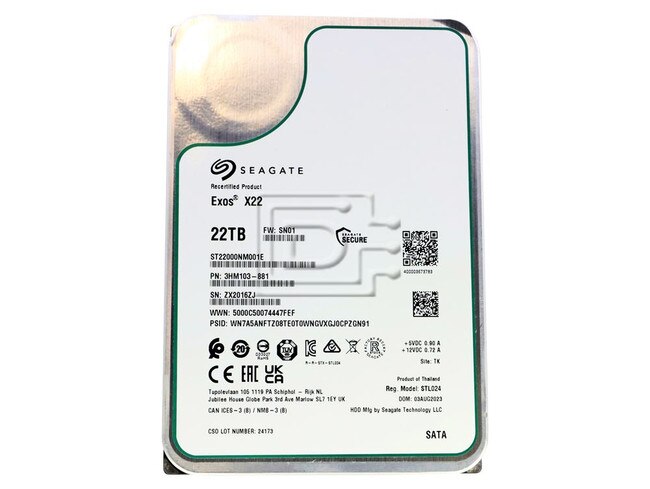

Seagate Exos X22 22TB ST22000NM001E SATA 6Gb/s 7200RPM 3.5" 7.2K 6Gb/s 512e Enterprise Hard Drive

Seagate Part #/MPN: ST22000NM001E

DiscTech Item #: SGT-ST22000NM001E-FR-6M

  • Inventory Is Inbound
    Stock Levels

    This item is currently on order with our supplier and is expected to arrive soon.


Enterprise Grade

Capacity: 22TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Seagate Exos X22 22TB ST22000NM001E SATA 6Gb/s 7200RPM 3.5" 7.2K 6Gb/s 512e HDD Enterprise Hard Drive - Factory Recertified

Seagate Exos X22 ST22000NM001E / 22,000GB 3.5" LFF / Large Form Factor 6.0 Gb/s 7.2K / 7,200 RPM Enterprise 512e Fast Format SATA / Serial ATA HDD / Hard Disk Drive - Factory Recertified

Powerful performance with proven technology—Seagate’s ® Exos® X22 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate

Secure™, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Best-Fit Applications

  • Scalable hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance

• All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.


Compatible with systems that support 22TB 3.5" SATA HDDS

Exos Enterprise X22
Standard Model FastFormat (512e/4Kn)ST22000NM001E
Reliability/Data Integrity
Power Consumption
Interface6Gb/s SATA III
Capacity22TB / 22000GB
Helium Sealed-Drive DesignYes
Conventional Magnetic Recording (CMR)Yes
Protection Information (T10 DIF)---
Low HalogenYes
PowerChoice Idle Power TechnologyYes
PowerBalance Power/Performance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 3072 Firmware VerificationYes
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
4Kn Sector Size (Bytes per Sector)
  • 4096
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 285
  • 272
Random Rewad/Write 4K QD03 WCD (IOPS)168/550
Average Latency (ms)4.16
Interface PortsSingle
Rotational Vibration @ 20-1500Hz (rad/sec)12.5
Idle A (W) Average
  • 5.74W
Max Operating, Random Read/Write 4K/16Q (W)
  • 9.4
  • 6.4
Power Supply Requirements+12 V and +5 V
Temperature, Operating (°C)5°C - 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
Shock, Operating Read/Write (Gs)40
Shock, Nonoperating, 1ms/2ms (Gs)200
Height (in/mm, max)1.028in/26.1mm
Weight (in/mm, max)4.010in/101.85mm
Depth (in/mm, max)5.787in/147.0mm
Weigt (g/lb)680g/1.499lb

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 6 Month DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

6 Month DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
