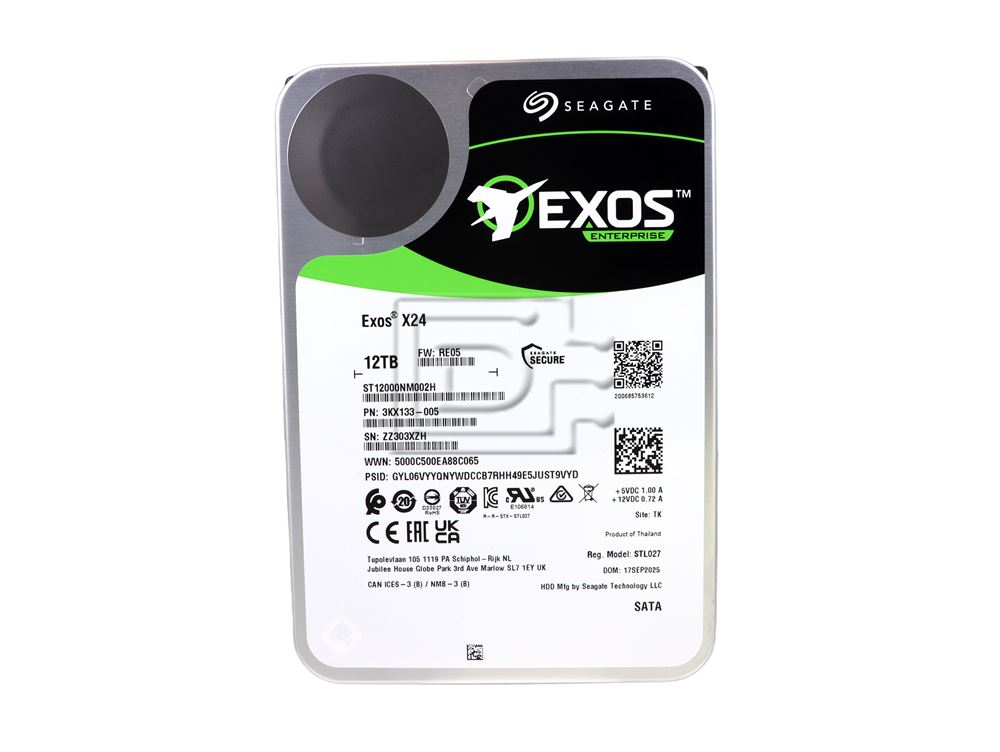

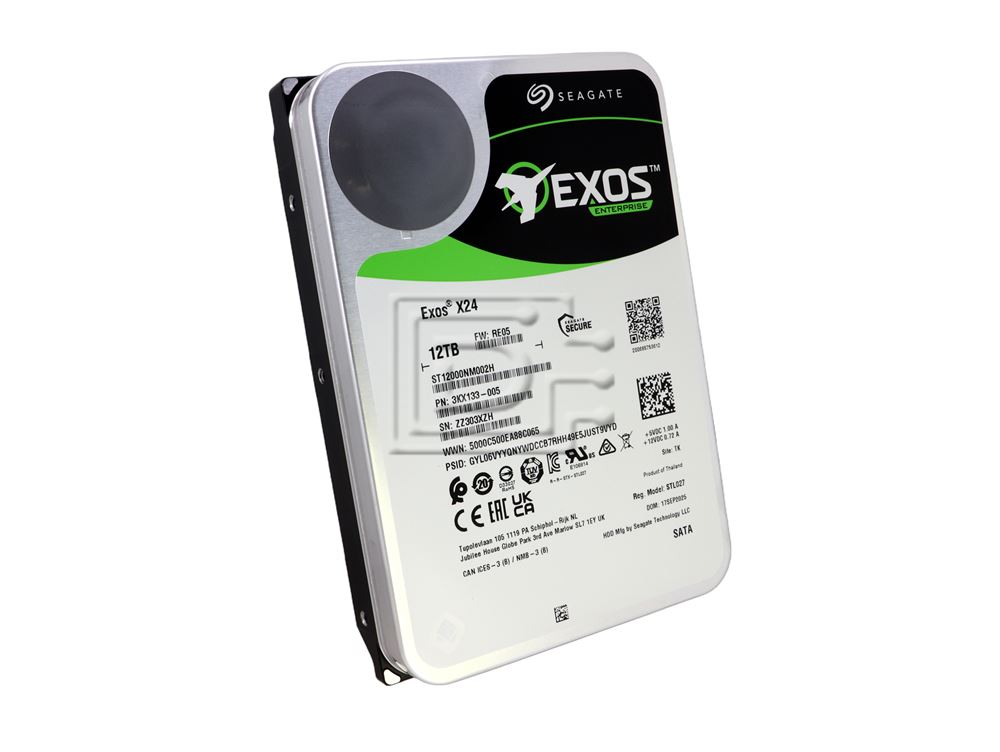

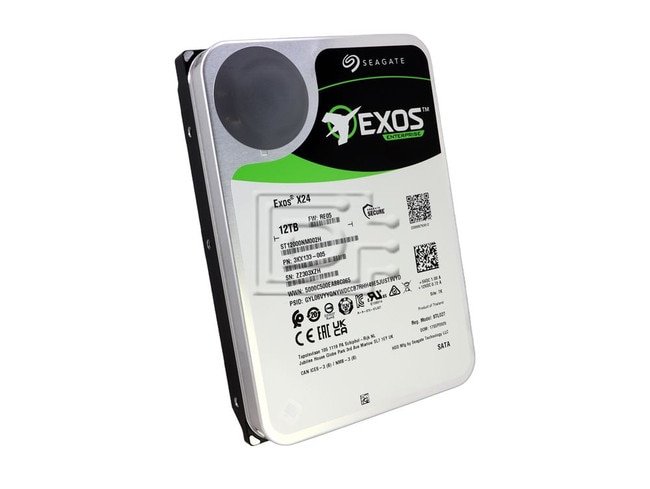

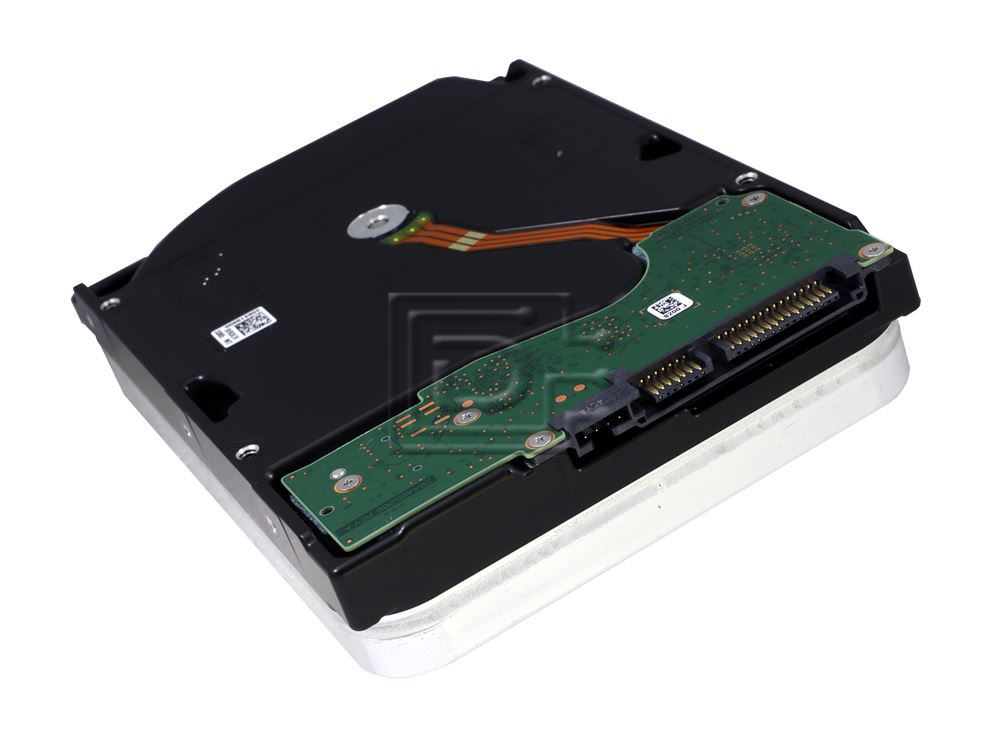

Seagate Exos X24 ST12000NM002H 12TB 3.5" LFF 6Gbps 7.2K RPM 512e Enterprise SATA FastFormat (512e/4Kn) Hard Disk

Seagate ST12000NM002H SATA Hard Disk Drive Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 5 Year ManufacturerWarranty
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

$349.00

Capacity:12TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB

Description

Seagate Exos X24 ST12000NM002H 12TB 3.5" LFF 6Gbps 7.2K RPM 512e Enterprise SATA FastFormat (512e/4Kn) Hard Disk Drives - Brand New

Seagate Exos X24 ST12000NM002H 12TB 3.5" LFF 6Gbps 7.2K RPM 512e Enterprise SATA FastFormat (512e/4Kn) Hard Disk Drives - Brand New

EXOS X24
Powerful performance with proven technology—Seagate’s ® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Best-Fit Applications

  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance

• All 4Kn/512e drives ship in 512-byte emulation mode but can be easily reformatted to 4Kn (and vice versa) with the FastFormat feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.

MPN: ST12000NM002H

Compatibility

Compatible with systems that support 12TB 3.5" SATA HDDS

Specifications

Exos Enterprise X16
Standard Model FastFormat (512e/4Kn)ST12000NM002H
Physical
Interface6Gb/s SATA III
Capacity12TB / 12000GB
Helium Sealed-Drive DesignYes
Conventional Magnetic Recording (CMR)Yes
Super ParityYes
RSA 3072 Firmware Verification (SD&D)Yes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
SEDNo
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
4Kn Sector Size (Bytes per Sector)
  • 4096
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate R/W
  • 285
  • 272
Random Rewad/Write 4K QD03 WCD (IOPS)168/550
Average Latency (ms)4.16
Interface PortsSingle
Rotational Vibration @ 20-1500Hz (rad/sec)12.5
Idle A (W) Average
  • 6.3W
Max Operating, Random Read/Write 4K/16Q (W)
  • 8.9
  • 7.1
Power Supply Requirements+12 V and +5 V
Temperature, Operating (°C)5°C - 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
Shock, Operating Read/Write (Gs)40Gs
Shock, Nonoperating, 1ms/2ms (Gs)250
Height (in/mm, max)1.028in/26.1mm
Weight (in/mm, max)4.010in/101.85mm
Depth (in/mm, max)5.787in/147.0mm
Weigt (g/lb)650g/1.433lb
Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Condition

Brand New

Warranty

5 Year Manufacturer Warranty
