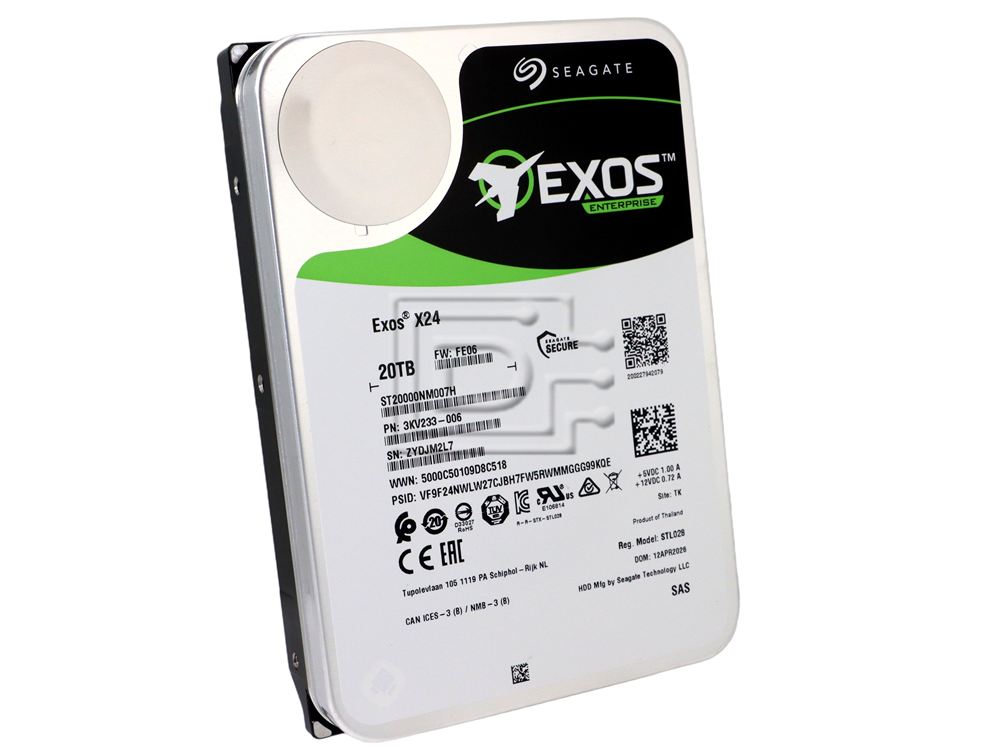

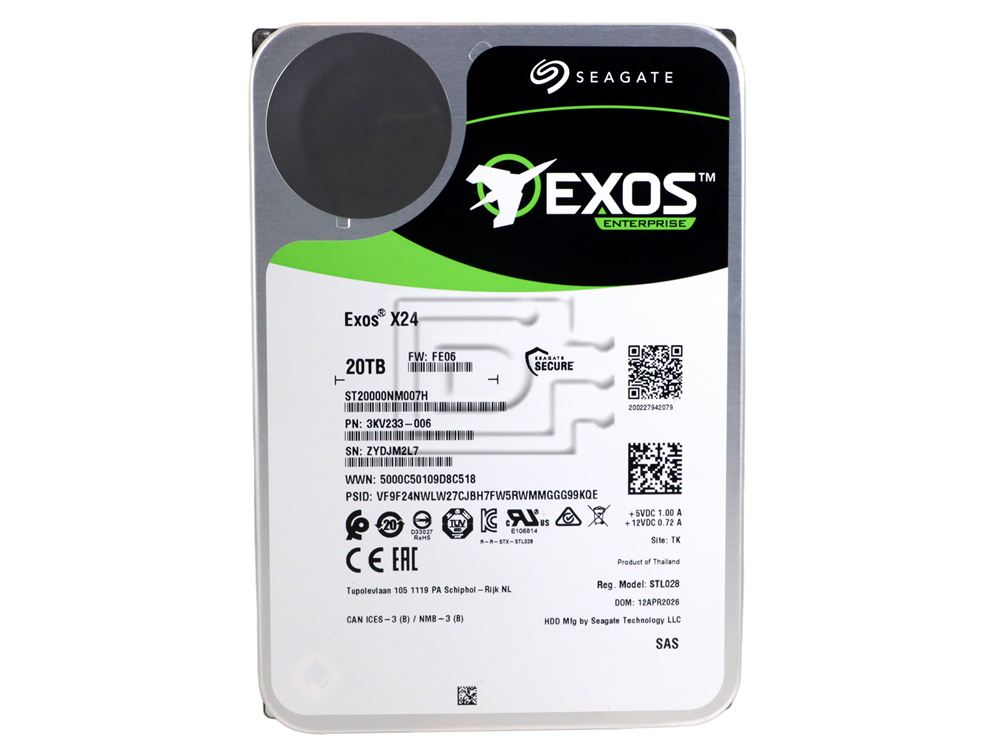

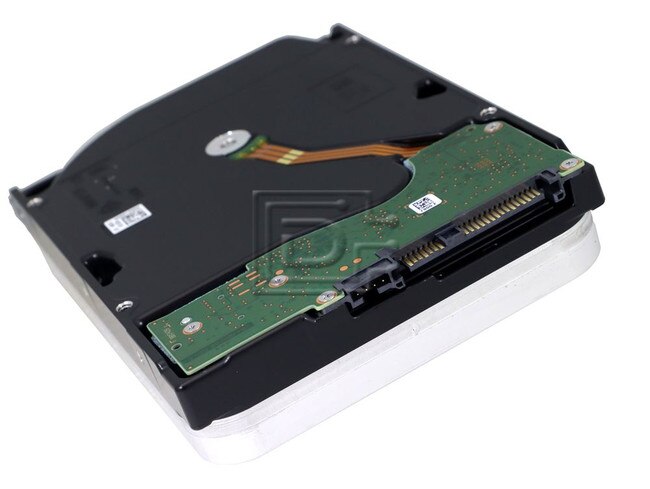

Seagate Exos X24 ST20000NM007H 20TB 3.5" LFF 12Gbps 7.2K RPM 512e Fast Format Enterprise SAS Hard Drive
- In Stock:480Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 20TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 512MB |
Description
Seagate Exos X24 ST20000NM007H 20TB 3.5" LFF 12Gbps 7.2K RPM 512e Fast Format Enterprise SAS Hard Drive - Brand New
Seagate Exos X24 ST20000NM007H 20TB 3.5" LFF 12Gbps 7.2K RPM 512e Fast Format Enterprise SAS Hard Drive - Brand New
Powerful performance. Proven technology. Scalable design.
Exos X24
Powerful performance with proven technology—Seagate’s ® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 20TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications
PowerBalance™ feature optimizes watts per TB
Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design
Proven helium side-sealing weld technology for added handling robustness and leak protection.
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security: Seagate Instant Secure features for safe, affordable, fast and easy drive retirement
Proven enterprise-class reliability backed by a 2.5M-hr MTBF rating
Best-Fit Applications
- Scalable hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
Manufacturer Part#: 3KV233
Compatibility
This drive is designed to work in Servers or Storage Arrays that support 512e 20TB Non-Proprietary SAS drives.
Specifications
| Exos Enterprise X24 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST20000NM007H |
| Interface | 12Gb/s SAS |
| Capacity | 20TB / 20000GB |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| SuperParity | Yes |
| PowerChoice Idle Power Technology | Yes |
| PowerBalance Power/Performance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 512 |
| RSA 2048 Firmware Verification | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Spindle Speed (RPM) | 7200 |
| Max Sustainable Transfer Rate OD (MB/s, MiB/s) (Read/Write) |
|
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Idle A (W) Average | 6.3 W |
| Max Operating, Random Read/Write 4K/16Q (W) | 8.9, 7.1 |
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 40Gs |
| Shock, Nonoperating, 2ms (Gs) | 200 |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.010in/101.85mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 685g/1.51lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 3KV233
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
