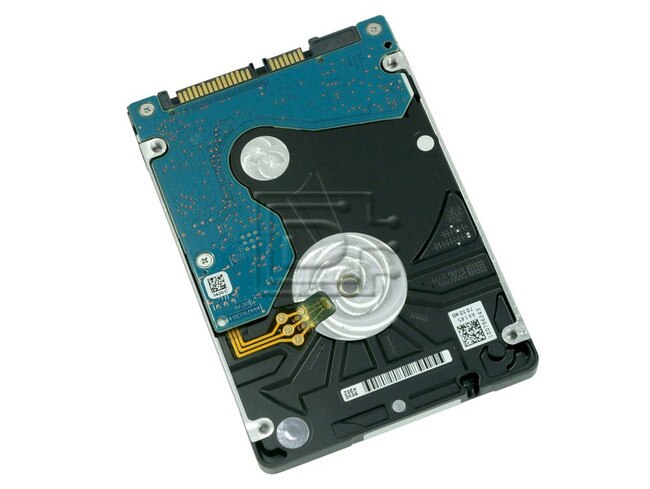

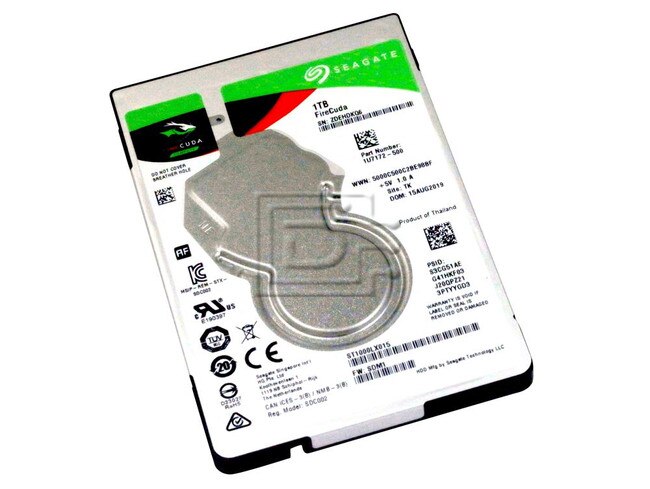

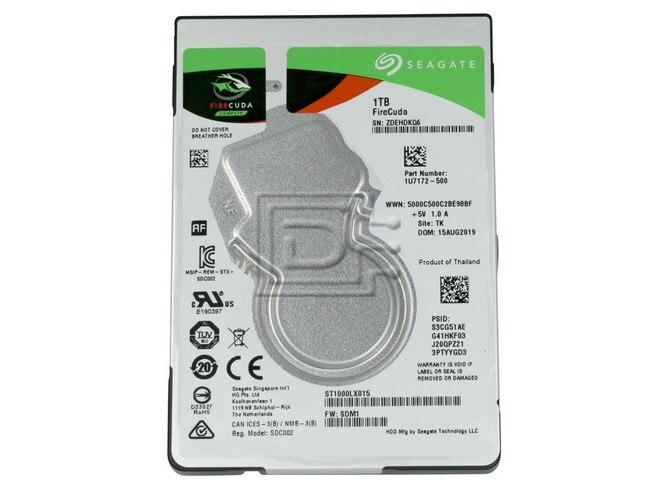

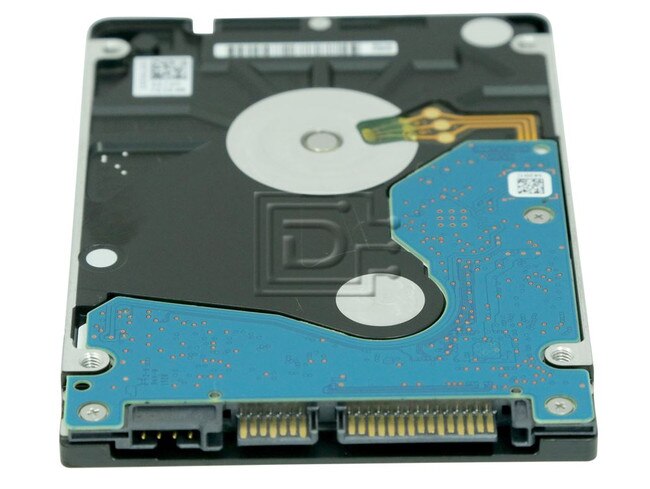

Seagate 1TB SSHD FireCuda Gaming ST1000LX015 / Dell 5W8MF 1TB 2.5" SATA HDD

Seagate Part #/MPN: ST1000LX015

DiscTech Item #: SGT-ST1000LX015-BN-OE-DEG

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 1TB

Speed: 5,400RPM (SSD / Hybrid)

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: Up to 140

Average Seek Time: 13

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB / 8GB SSD


Hybrid SSD Cache: 8GB/MLC NAND

Seagate 1TB FireCuda Gaming SSHD Flash Accelerated  ST1000LX015 / Dell 5W8MF / 1U7172-030 2.5" 6Gbps 5.4K RPM (512e) 8GB SSHD SATA HDD - Brand New

Perfect 1TB upgrade for the PS4.

Seagate FireCuda Compute ST1000LX015 1TB / 1000GB 2.5" 6.0 Gb/s 5400 RPM 512 Emulation 8GB Solid State Hybrid Drive Serial Attached Technology Attachment Hard Disk Drive - Brand New

The Fastest PC Hard Drive

Combining flash technology with a hard drive platform, the FireCuda™ 2.5 flash-accelerated hard drive represents the fastest 2.5-inch hard drive available.

Key Advantages
  • Flash-accelerated technology delivers blazing load speeds that allow for nonstop performance, play and productivity up to 5× faster than standard HDDs. (SSHD Solid State Hybrid Drive)
  • Save time with a drive that boots in seconds, no minutes.
  • Enormous 500GB, 1TB and 2TB options make FireCuda the highest-capacity 2.5-inch hard drive on the market, providing customers a high-performance experience while being able to store massive amounts of data, all within a thin 7mm z-height.
  • Green Hybrid™ feature reduces device power consumption, helping users extend their drive’s life and keep their costs down with a power-efficient drive.
  • Multi-Tier Caching Technology™ (MTC) enhances performance by using NAND flash, DRAM and media caching technologies, enabling users to load applications and files even faster
  • Adaptive Memory™ technology identifies frequently accessed data, thereby providing the data faster, consuming less power and extending drive life.
  • 512-byte sector emulation

Best-Fit Applications

  • Mainstream PCs upgrades
  • High-perfomance PCs
  • PC gaming systems
  • Workstations
  • Creative professional systems

ALT. PN: 1U7172-030 / 5W8MF


This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.

FireCuda Compute Seagate
Product NameST1000LX015
InterfaceSATA 6Gb/s
Capacity1TB / 1000GB
Bytes per Sector (logical/physical)512/4096
Data Transfer Rate (MB/s)Up to 140
Versus 2.5-in 54000-RPM/7200-RPM HDD
Game Loading Test140% Faster / 50% Faster
Application Load Test450% Faster / 300% Faster
Windows 7 Boot Time35% Faster / 25% Faster
Reliability/Data Integrity
Load/Unload Cycles600,000
Head-Rest MethodQuietStep Ramp Load
Nonrecoverable Read Erros per Bits Read, Max1 per 10E14
Power Management
Startup, Current (+5V, A)1.0
Read/Write Power, Average (W)1.6 / 1.7
Idle Power, Average (W)0.45
Temperature, Operating (°C)0 to 60
Temperature, Nonoperating (°C)-40 to 70
Shock, Operating: 2ms (GS)400
Shock, Nonoperating: 1ms (Gs)1000
Acoustics, Idle, Typical (bels - sound power)2.0
Acoustic, Seek, Typical (bels- sound power)2.2
Height (mm/in)7.0/2.76
Width (mm/in)69.85/2.75
Depth (mm/in)100.35/3.951
Weight (g/lb, max)92/0.203
Special Features
Halogen FreeYes
RoHS ComplianceYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 5W8MF 05W8MF 1U7172-030

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
