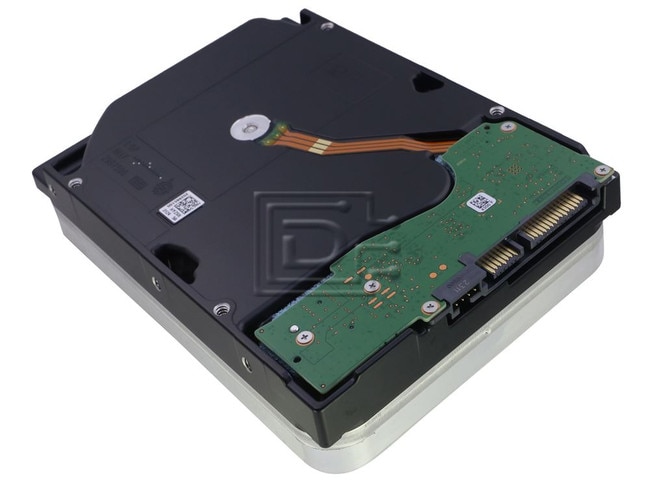

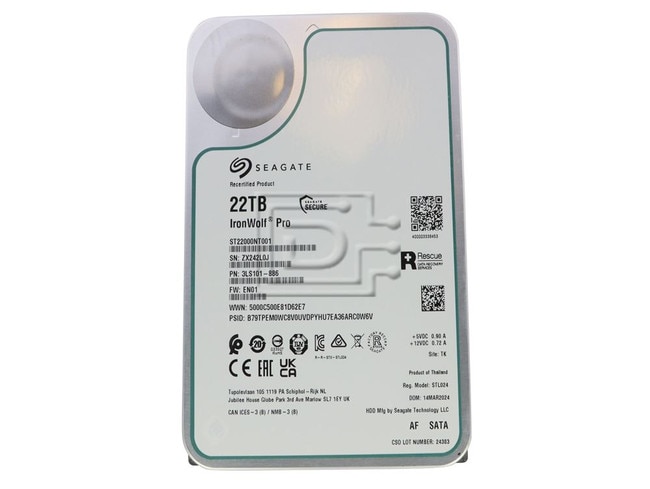

Seagate IronWolf Pro ST22000NT001 22TB 3.5" LFF 6Gbps 7.2K Enterprise 512e SATA NAS HDD

Seagate ST22000NT001 SATA Hard Disk Drive Image 1 imageSeagate ST22000NT001 SATA Hard Disk Drive Image 2 imageSeagate ST22000NT001 SATA Hard Disk Drive Image 3 image
  • Factory Refurbished
    Condition Levels Explained

    The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 6 Month DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$499.00

Capacity:22TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB

Description

Seagate IronWolf Pro ST22000NT001 22TB 3.5" LFF 6Gbps 7.2K Enterprise 512e SATA NAS HDD - Factory Recertified

Seagate IronWolf Pro ST22000NT001 22TB 3.5" LFF 6Gbps 7.2K Enterprise 512e SATA NAS HDD - Factory Recertified

Seagate IronWolf™ Pro
IronWolf™ Pro is designed for commercial and enterprise NAS. Delivering Tough, Ready and Scalable 24x7 performance in multibay, multi-user environments

Best-Fit Applications

  • Commercial and Enterprise NAS
  • Video Production RAID and Shared Network Storage
  • Workstations and Servers

Key Advantages

  • Optimized for NAS with AgileArray™ AgileArray enables Dual-Plane Balancing and TimeLimited Error Recovery to deliver best-in-class RAID performance in multi-bay systems.
  • Always On, Always Accessible IronWolf Pro drives are designed for 24x7 usage, allowing users to access their data any time, anywhere.
  • All-CMR Portfolio All IronWolf Pro drives utilize conventional magnetic recording (CMR) technology for consistent, best-in-class NAS performance.
  • Up to 22TB Broad range of capacity options to deliver scalable and cost-efficient storage solutions.
  • Built Tough IronWolf Pro drives are rated for 550TB/Y workload, allowing commercial and enterprise NAS users to seamlessly store, share and collaborate on large amounts of networked data.
  • Class-Leading Reliability and Dependability IronWolf Pro drives are rated for 2.5M hours MTBF and include a 5-year limited warranty for hassle-free data storage and best-in-class total cost of ownership (TCO).
  • Rotational Vibration (RV) sensors. Built-in RV sensors for vibration tolerance and consistent performance in multi-bay systems.
  • IronWolf Health Management (IHM) Actively protect your NAS data with Prevention, Intervention, and Recovery recommendations to ensure peak system health.
  • Peace of mind with Data Recovery IronWolf Pro drives include 3 years of complimentary Rescue Data Recovery Services - in-house secure facilities, with an industry-leading recovery rate of 95% - so you do not have to incur high recovery costs in the event of accidental data corruption or drive damage.

Compatibility

Compatible with systems that support 22TB 3.5" SATA HDDS

Specifications

Specifications

Specifications22TB20TB18TB
Capacity22TB20TB18TB
Standard Model NumberST22000NT001ST20000NT001ST18000NT001
InterfaceSATA 6Gb/sSATA 6Gb/sSATA 6Gb/s
Features
Drive Bays SupportedUnlimitedUnlimitedUnlimited
Recording TechnologyCMRCMRCMR
Drive Design (Air or Helium)HeliumHeliumHelium
Workload Rate Limit (WRL)550550550
Rotational Vibration (RV) SensorsYesYesYes
Cache (MB)512MB512256MB
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2500000hr2500000hr2500000hr
Nonrecoverable Read Errors per Bits Read, Max1 per 10E151 per 10E151 per 10E15
Power-On Hours (per year)876087608760
Sector Size (Bytes per Logical Sector)512E512E512E
Rescue Data Recovery Services(years)333
Limited Warranty (years)555
Performance
Spindle Speed (RPM)7200RPM7200RPM7200RPM
Interface Access Speed (Gb/s)6.0, 3.0, 1.56.0, 3.0, 1.56.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)285285285
Rotational Vibration @ 10-1500 Hz (rad/s)12.512.512.5
Power Consumption
Startup Current, Typical (12V, A)2.0A2.0A2.0A
Idle Power, Average (W)6.0W5.75.0
Average Operating Power (W)7.9W7.7W7.5W
Standby Mode, Typical (W)1.2W1.2W1.0W
Sleep Mode, Typical (W)1.2W1.2W1.0W
Power Supply Requirements+12 V and +5 V+12 V and +5 V+12 V and +5 V
Environmental/Temperature
Operating Temperature (ambient, min °C)0°C0°C0°C
Operating Temperature (drive reported, max °C)65°C65°C65°C
Nonoperating Temperature (ambient, min °C)-40°C-40°C-40°C
Nonoperating Temperature (ambient, max °C)70°C70°C70°C
Environmental/Acoustics
Vibration, Nonoperating: 10Hz to 500Hz (Grms)2.272.272.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA)202020
Acoustics, Seek (typical) (dBA)262626
Environmental/Shock
Shock, Operating 2ms (Read/Write) (Gs)40/40Gs40/40Gs40
Shock, Nonoperating, 1ms and 2ms (Gs)200200200
Physical
Height (mm/in)26.11mm/1.028in26.11mm/1.028in26.11mm/1.028in
Width (mm/in, max)101.85mm/4.01in101.85mm/4.01in101.85mm/4.01in
Depth (mm/in, max)146.99mm/5.787in146.99mm/5.787in146.99mm/5.787in
Weight (g/lb, typical)690g/1.512lb690g/1.521lb680g/1.499lb
Carton Unit Quantity202020
Cartons per Pallet/Cartons per Layer40/840/840/8
Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 6 Month DiscTech

Condition

Factory Refurbished

Warranty

6 Month DiscTech Warranty
