Seagate Part #/MPN: ST980825A
DiscTech Item #: SGT-ST980825A-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 80GB
Speed: 7,200RPM
Interface Types: IDE ATA 2.5in IDC44M for laptop
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 10.5 / 12.5
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

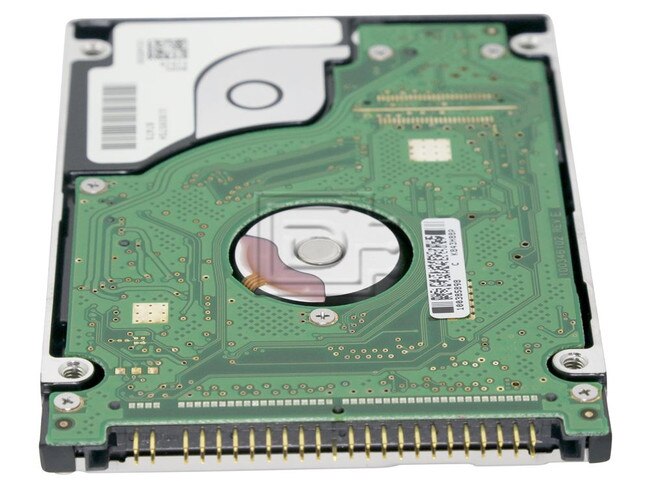

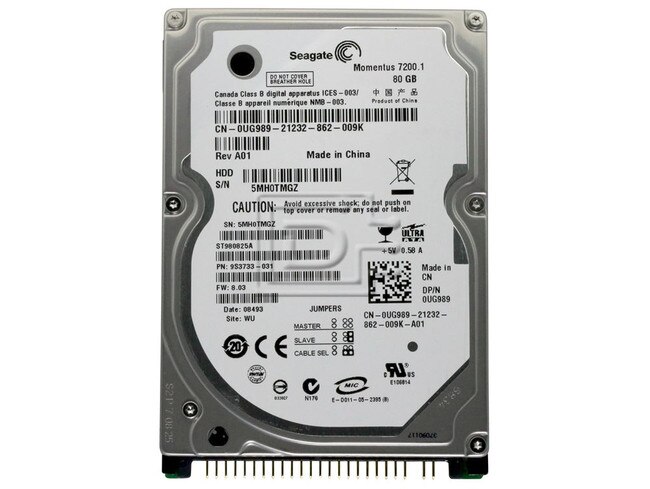

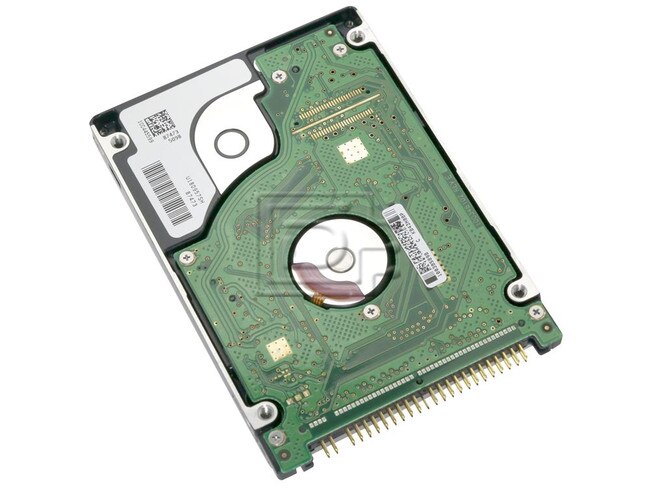

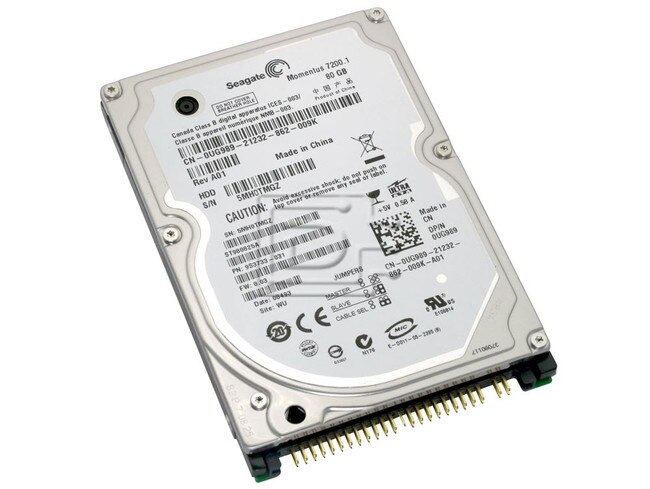

Seagate Momentus 7200.1 ST980825A / Dell UG989 80GB 7.2K 2.5" IDE Hard Drive - Brand New
The Seagate® Momentus® 7200.1 hard drive delivers mainstream and workstation-class, 7200-RPM performance with enhanced productivity and mobility—all in a 2.5-inch drive. The Momentus 7200.1 hard drive is ideal for mainstream and workstation-class laptops, as well as specific non-PC applications, including non-mission-critical blade servers and small form factor PCs.
Alternate DPN: UG989 0UG989
Compatibility:
This drive is compatible with any laptop / computer that accepts 2.5" IDE hard drives.
Drive specification | ST980825A / UG989 |
Formatted Gbytes (512 bytes/sector) | 80 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (Mbytes/sec max) | 100 |
Cache buffer | 8 Mbytes |
Height (max) | 9.5 mm |
Width (max) | 70 mm |
Length (max) | 100 mm |
Weight (max) grams | 115 |
Average seek, read (msec typical) | 10.0 |
Startup current (typical) 5V (peak) | 5.5 W |
Idle mode (typical) watts | 1.3 W |
Ambient temperature | 5° to 55 °C (op.) –40° to 65 °C (nonop.) |
Alternate MPNs: UG989 0UG989
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
