Seagate Momentus ST9160821AS 160GB SATA Hard Drives

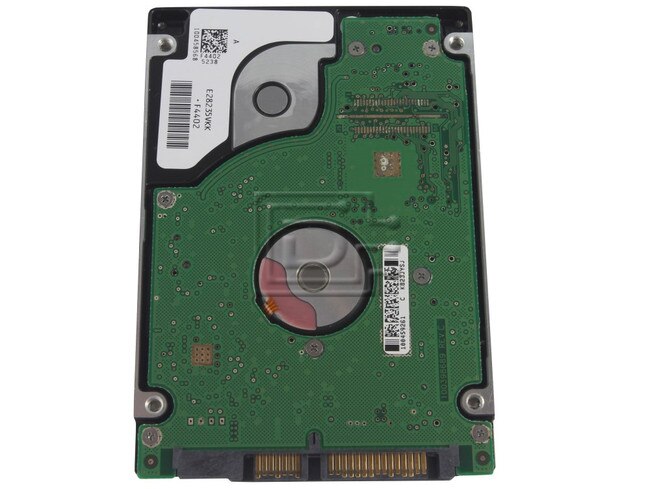

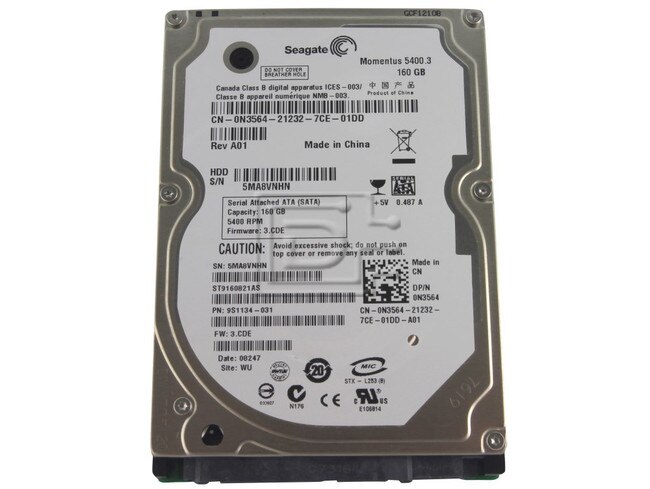

Seagate ST9160821AS N3564 0N3564 9S1134-140 SATA Hard Drive Image 1 imageSeagate ST9160821AS N3564 0N3564 9S1134-140 SATA Hard Drive Image 2 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$42.00

Capacity:160GB
Speed:5.4K RPM
Interface Types:SATA
Form Factor:2.5" x 9mm Fits Most laptops
Electrical Interface:SATA 300 - 3Gbps
RAM:8MB

Description

Seagate Momentus 5400.3 ST9160821AS 160GB 5.4K SATA Hard Drive - Refurbished OEM

The Momentus family of 2.5-inch laptop drives offers innovative options and features, such as capacity up to 160GB, two different performance speeds, and three significant features.

Key Features and Benefits

  • Seagate SmartAlign™ technology provides a transition to 4K sectors without the need for software utilities.
  • Seagate Self-Encrypting Drives deliver government-grade encryption without performance degradation—protecting your data where it lives. The FIPS 140-2* options are NIST government-certified for both U.S. and Canadian usage with sensitive data.**
  • Seagate G-Force Protection™ technology can detect when your laptop is in a free-fall, swing the drive heads to a safe zone and keep the data safe.
  • 7200-RPM and 5400-RPM speeds for customized performance, and 8MB and 16MB cache size to enhance your application performance
  • 750, 640, 500, 320, 250 and 160GB models for 5400-RPM drives for high-capacity to entry-level and mainstream systems
  • 750, 500, 320, 250 and 160GB models for 7200-RPM drives for high-capacity

    Alternate PNs: N3564 0N3564 9S1134-140

    Compatibility

    This drive is compatible with any laptop that accepts SATA drives.

    Specifications

    Drive specification

    ST9160821AS

    Formatted Gbytes (512 bytes/sector)

    160

    Guaranteed Sectors
    		 312,581,80

    Bytes per sector

    512

    Spindle speed (RPM)

    5400

    I/O data transfer rate (MBps)

    300

    Cache buffer

    		8

    Interface Type

    Serial ATA-300

    Average latency

    5.6 ms

    Seek time (read / write) ms

    14 /

    Track-to-track seek (read / write) ms

    0.8 / 1.0

    Dimensions (HxLxW) mm

    9.5 / 100.35 / 69.85

    Weight

    0.0935 kg

    Operating Shock (Read)

    350G, 2ms

    Non-operating Shock

    1000G, 1ms

    Temperature - Operating

    0C -60C

    Temperature - Non-operating

    -40C - 70C

    Current Requirements 12VDC (Read/Write, Idle)

    3.5w / 2.6w

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: N3564 0N3564 9S1134-140

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech

    Condition

    Refurbished

    Warranty

    1 Year DiscTech Warranty
