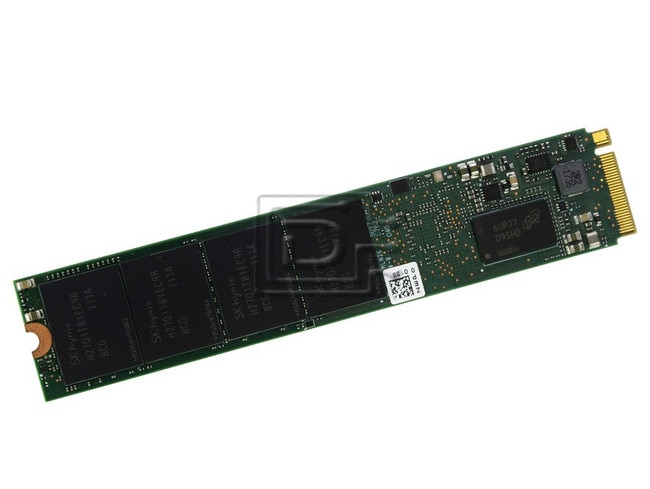

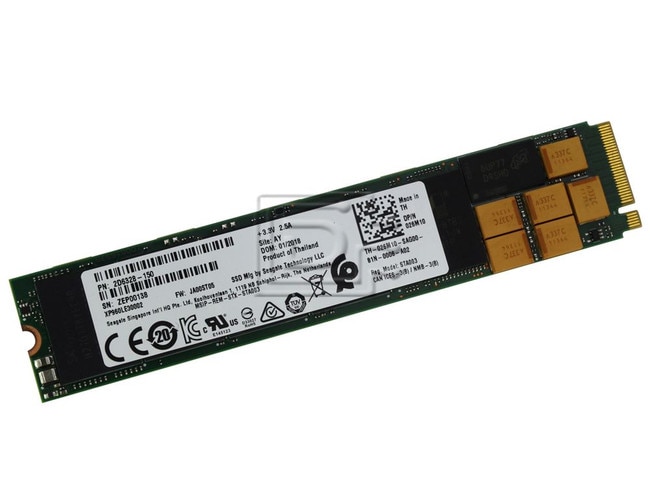

Seagate Nytro 5000 XP960LE30002 / 2D6328-150 / 26M10 960GB M.2 22110 3D cMLC PCIe NVMe SSD

Seagate Part #/MPN: XP960LE30002

DiscTech Item #: SGT-XP960LE30002-BN-OE-DEL


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: NVMe M.2, PCIe

Form Factor: M.2 x 110mm

Sector Size: 512 / 512e

Sustained Throughput: 2000/1200

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Read Intensive

Seagate Nytro 5000 XP960LE30002 / 2D6328-150 / 26M10 960GB M.2 22110 3D cMLC PCIe NVMe Solid State Drive - Brand New OEM

Seagate Nytro 5000 XP960LE30002 / 2D6328-150 / 26M10 960GB M.2 22110 3D cMLC PCIe NVMe Solid State Drive - Consumer Multi-Level Cell / cMLC Read Intensive 0.3-DWPD / Drive Writes Per Day PCI Express / PCIe Gen 3 NVM Express / NVMe 1.2a Solid State Drive / SSD - Brand New

Nytro 5000 NVMe SSD
Lightspeed. Solid. Impressive.

The Seagate® Nytro® 5000 NVMe solid state drive (SSD) represents the next generation of enterprise SSDs. Engineered for low power, high performance and increased storage density in data centers, Nytro 5000 SSD eliminates performance bottlenecks and significantly improves quality of service (QoS).

Overcome Data Bottlenecks and Improve QoS
Nytro 5000 NVMe SSD is highly optimized for read-intensive and mixed workloads. Incorporating the PCIe Gen3 ×4 interface with the NVMe protocol, Nytro 5000 SSD features four times the bandwidth of SATA SSDs, removing data bottlenecks by delivering blistering throughput and IOPS.

Nytro 5000 SSD also features sideband management for monitoring the health of the SSDs without introducing latency or disrupting overall throughput.

Increase Storage Density and Efficiency in Data Centers
The low-power Nytro 5000 SSD is offered in both 2.5-inch and M.2 form factors, enabling more computing using minimal space, energy and cost. The Nytro 5000 SSD is also extremely scalable and space-optimized to reduce TCO. In addition, the Nytro 5000 NVMe SSD with the U.2 connector enables effortless serviceability and maintenance with no downtime requirements, and features hotswap capability for easy addition, removal or replacement of SSDs.

Enhance Enterprise Reliability, Data Protection and Security
By leveraging Seagate’s existing enterprise expertise and manufacturing excellence, Nytro 5000 SSD delivers the highest levels of data integrity, data security and endurance for critical business applications.

Nytro 5000 SSD includes features for end-to-end data protection, LDPC error correction and Seagate RAISE technology for solid reliability and endurance. Power-loss data protection helps maintain data integrity in the event of unexpected power interruptions. Seagate Secure™ SelfEncrypting Drive (SED) models 1 support the TCG protocol to help companies keep valuable data secure.

Key Features and Benefits

  • PCIe Gen3 ×4 interface with NVMe protocol
  • Up to 35,000 IOPS/W performance
  • Industry-leading density of up to 1.92TB in 2.5-inch and M.2 form factors
  • Host-selectable power optimization
  • Multiple namespace support for greater deployment flexibility

Best-Fit Applications

  • Public and private cloud
  • Hyperscale data centers
  • Caching and tiering
DPN: 26M10

Alt. Pt#: 2D6328-150


This drive is compatible with laptops that accept M.2 22110 PCIe drives.

Nytro 5000 NVMe SSD
Standard Model NumberXP960LE30002
Performance at Max Power Limit
InterfacePCIe Gen3 ×4, NVMe 1.2a
NAND Flash Type3D cMLC
Form FactorM.2 22110
Sequential Read (MB/s) Sustained, 64KB2000
Sequential Write (MB/s) Sustained, 64KB1200
Random Read (IOPS) Sustained, 4KB245,000
Random Write (IOPS) Sustained, 4KB25,000
Random 30% Write (IOPS) Sustained, 4KB77,000
Lifetime Endurance (Drive Writes per Day)0.3
Nonrecoverable Read Errors per Bits Read1 per 10E16
Mean Time Between Failures (MTBF, hours)2,000,000
Power Management
+12V Max Power (W)8.25
Average Read/Write Power (W)7
Height (mm/in, max) ---
Height, Component Top (mm/in, max)2.0mm/0.079in
Height, Component Bottom (mm/in, max)1.5mm/0.059in
Width (mm/in)22.0mm/0.866in
Depth (mm/in)110.0mm/4.33in
Weight (g/lb)14g/0.031lb

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
