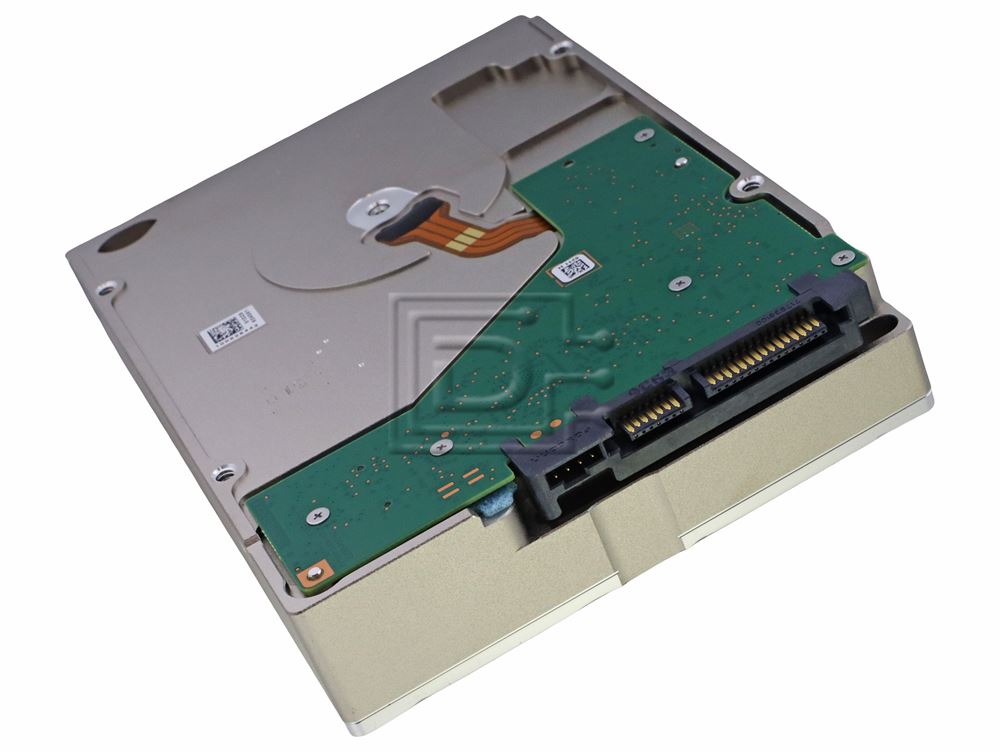

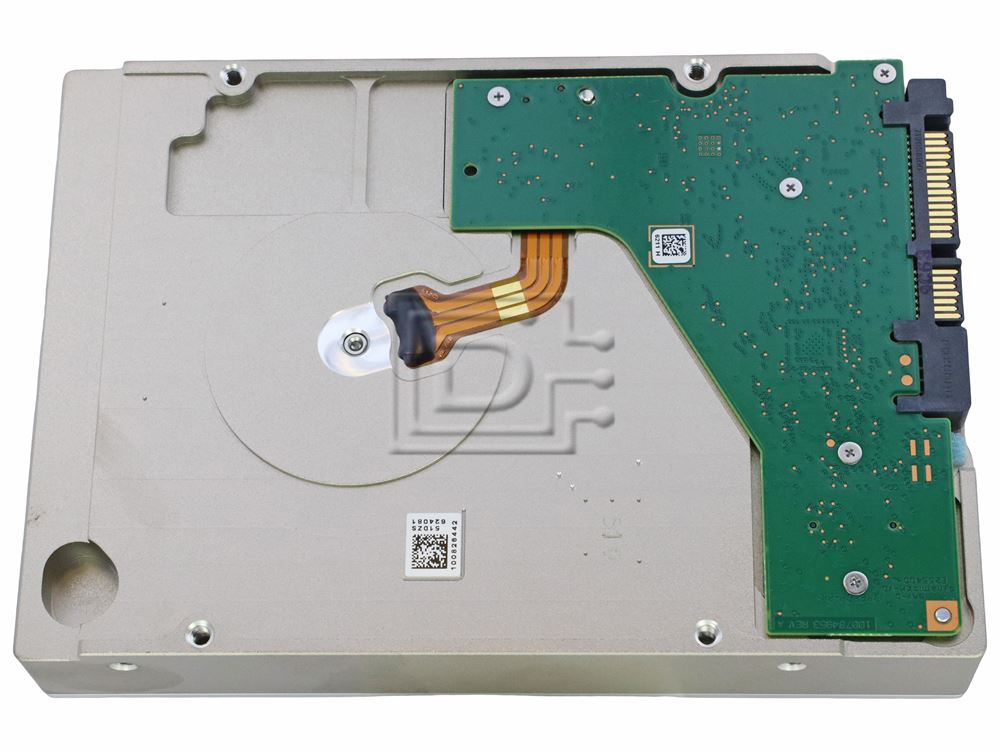

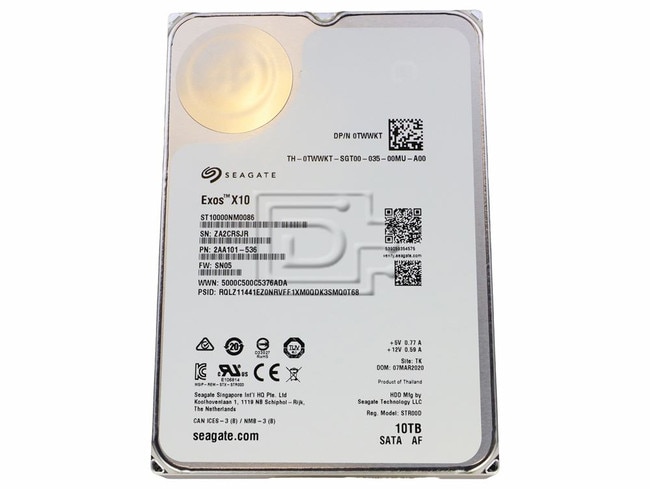

Seagate Exos x10 ST10000NM0086 / Dell TWWKT 10TB 3.5" 6Gbps 7.2K RPM Enterprise 512e SATA HDD
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 10TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 256MB |
Description
Seagate Exos x10 ST10000NM0086 / Dell TWWKT 10TB 3.5" 6Gbps 7.2K RPM Enterprise 512e SATA HDD - New Pull
Seagate Exos x10 ST10000NM0086 / Dell TWWKT 10TB 3.5" 6Gbps 7.2K RPM Enterprise 512e SATA HDD - New Pull
Maximum Storage Capacity for Highest Rack Space Efficiency
- 10TB per drive 1 for 25% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Forged, wrought-aluminum base and a helium sealed-drive design with uniform density and no porosity
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility
This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.
Specifications
| Specifications | |
|---|---|
| Capacity | 10TB/10,000GB |
| Standard Model (512e) | ST10000NM0086 |
| Features | |
| Helium Sealed-Drive Design With Wide Weld | Yes |
| Digital Environmental Sensors | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| PowerChoice™ Power/Performance Technology | Yes |
| Low Halogen/Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliabilility Rating @ Full 24x7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance | |
| Spin Speed(RPM) | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | 254MB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170, 370 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle A (W) Averge | 4.5W |
| Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% | 8.0 |
| Max Operating Power, Random Read 4K/16Q (W) | 8.4 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Physical | |
| Height (mm/in, max) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: TWWKT 0TWWKT
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
Warranty
1 Year DiscTech Warranty
