Seagate Part #/MPN: ST10000NM0236
DiscTech Item #: SGT-ST10000NM0236-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 10TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 254
Average Seek Time: 4.16
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 256MB

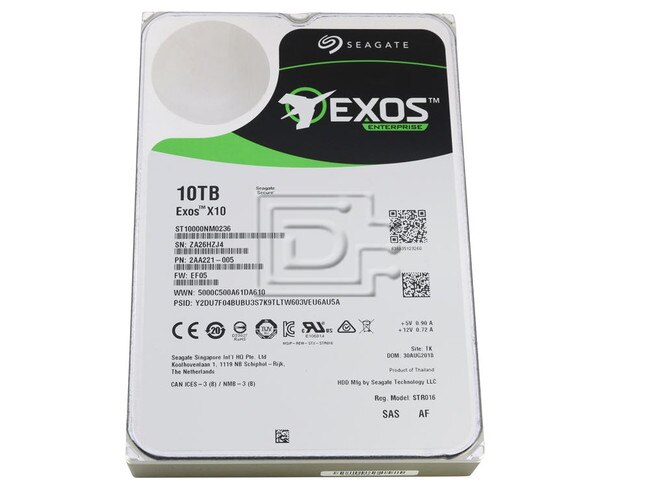

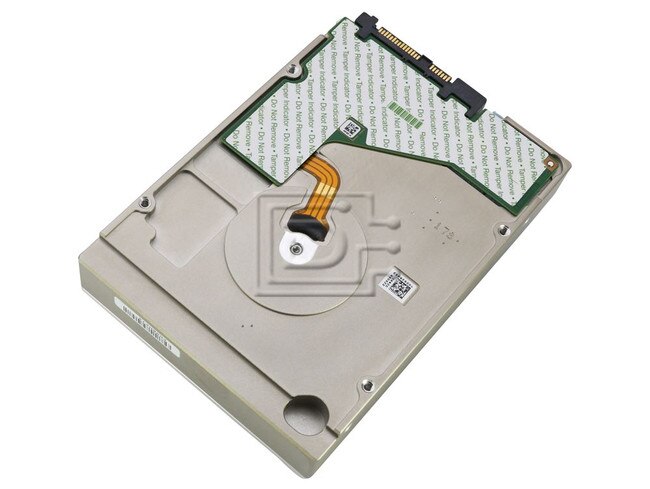

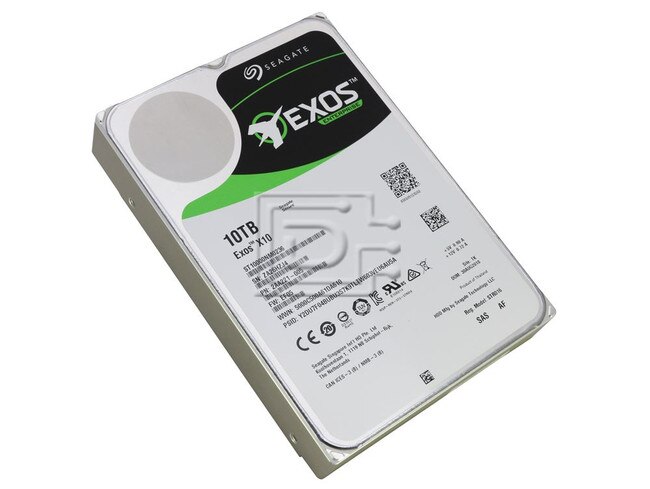

Seagate Exos X10 ST10000NM0236 10TB 3.5in 12Gbps 7.2K RPM Enterprise 512e SED-FIPS SAS HDD - Refurbished
Comparable to: HUH721010AL4200 / ST10000NM0096
Seagate Exos X10 ST10000NM0236 / 2AA221-005 10TB / 10,000GB 3.5" 12 Gb/s 7,200 RPM Enterprise 512 Emulation Self-Encrypting-FIPS Drive Serial Attached SCSI Hard Disk Drive - Refurbished
Maximum Storage Capacity for Highest Rack Space Efficiency
- 10TB per drive 1 for 25% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Forged, wrought-aluminum base and a helium sealed-drive design with uniform density and no porosity
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal humidity, pressure and temperature, helping to ensure high reliability, performance and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server or array that accepts 3.5inx1.0in SAS Drive.
| Exos X10 Specifications | |
|---|---|
| Capacity | 10TB/10,000GB |
| SED-FIPS Model (512e) | ST10000NM0236 |
| Features | |
| Helium Sealed-Drive Design With Wide Weld | Yes |
| Digital Environmental Sensors | Yes |
| Protection Information (T10 DIF) | Yes |
| SuperParity | Yes |
| PowerChoice™ Power/Performance Technology | Yes |
| Low Halogen/Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliabilility Rating @ Full 24x7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| 512e Sector Size (Bytes per Sector) | 512, 520, 528 |
| 4Kn Sector Size (Bytes per Sector) | 4096, 4160, |
| Performance | |
| Spin Speed(RPM) | 7200RPM |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s) | 254MB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170, 370 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle A (W) Averge | 5.5W |
| Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% | 9.0 |
| Max Operating Power, Random Read 4K/16Q (W) | 9.4 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250 |
| Physical | |
| Height (mm/in, max) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 2AA221-005
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
