Seagate Part #/MPN: ST1000LM048
DiscTech Item #: SGT-ST1000LM048-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 1TB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: Up to 140
Average Seek Time: 13
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 128MB
Wattage/VA: 1.6W

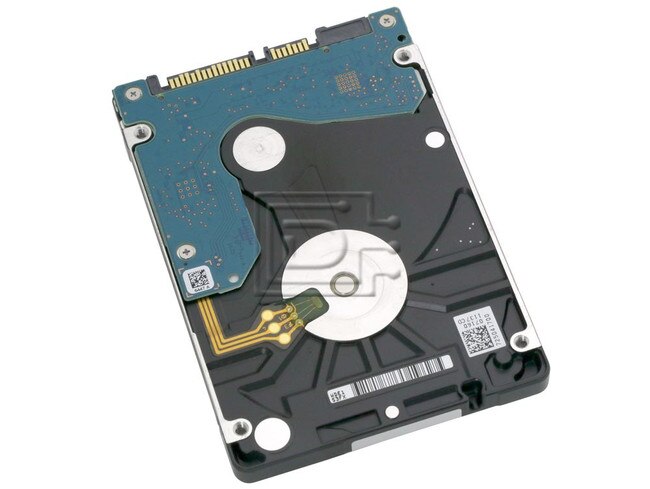

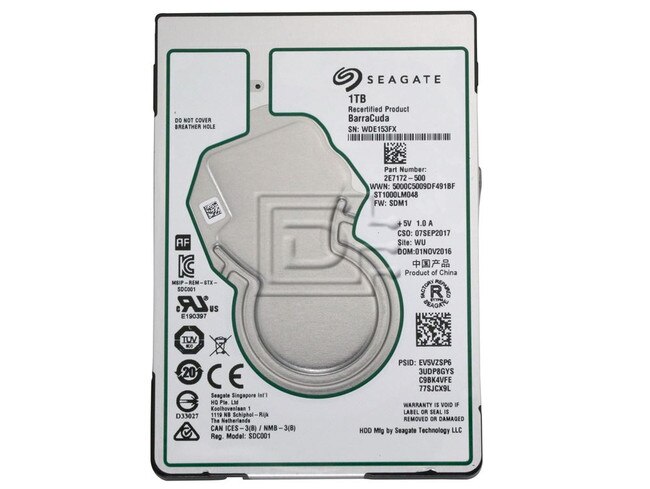

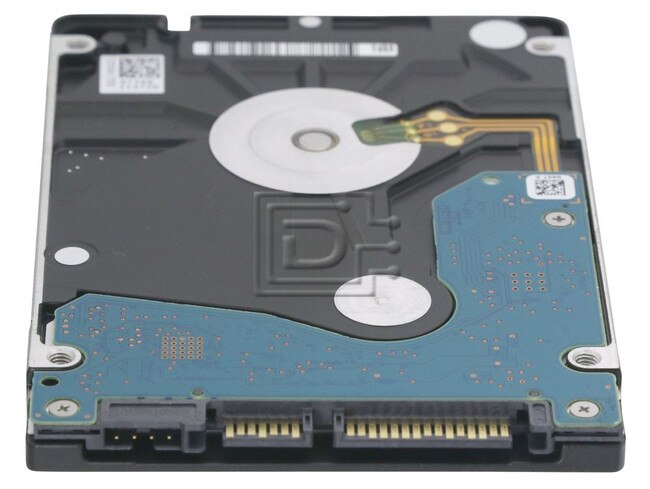

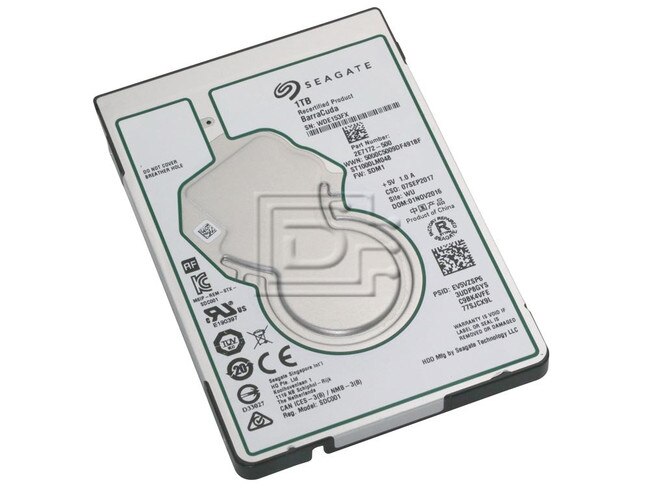

Seagate Barracuda Compute ST1000LM048 1TB 2.5in 6Gbps 5.4K RPM 512 Serial ATA / SATA HDD - Factory Recertified
Seagate Barracuda Compute ST1000LM048 1TB / 1000GB 2.5" 6Gb/s 5400 RPM 512 Serial Attached Technology Attachment Hard Disk Drive
BARRACUDA COPUTE
Amazing Versatility. Unmatched Dependability.
Seagate brings over 20 years of trusted performance and reliability to the Seagate BarraCuda 2.5-inch HDDs – now available in capacities up to 5TB
Key Advantadages
- Broadest 2.5-inch hard drive portfolio with up to 5TB capacity and both 7mm and 15mm factors suitable for a variety of compute applications
- Thinnest and lighest 2.5-inch hard drive with up to 2TB storage in a 7mm z-height, providing seamless upgrades of thin light laptop and smaller form factor systems.
- Fast data rates of up to 140MB/s enables superior PC and user experience and snappier file transfers>
- 2.5-inch, 15mm z-height hard drives provide 3TB to 5TH in capacity, offering the highest-capacity 2.5-inch hard drives available for external or all-in one storage.
- 15mm z-height enables slimmer all-in-one desktop PC drives while helping reduce system heat generation and vibration
- Low startup current configuration for 3TB to 5TB drives enable use in legacy low-current systems like USB-2 external boxes, while simultaneously lowering power consumption
- 5TB drives can store more than 1.25 million songs and 600 hours of HD video
Best-Fit Applications
- Laptops
- Mobile Storage
- External storage systems
- All-in-one PCs
- Ultra-slim desktop PCs
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.
| Barracuda Compute | |
|---|---|
| Model Number | ST1000LM048 |
| Capacity | 1TB / 1000GB |
| Bytes per Sector (logical/physical) | 512 / 4096 |
| Performance | |
| Interface | SATA 6Gb/s |
| Data Transfer Rate (MB/s) | Up to 140 MB/s |
| Cache (MB) | 128 |
| Spindle Speed (RPM) | 5400 |
| Reliability/Data Integrity | |
| Load/Unload Cycles | 600,000 |
| Head-Rest Method | QuitStep Ramp Load |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E14 |
| Power Management | |
| Startup Current (+5V, A) | 1.0 |
| Read/Write Power, Average (W) | 1.6/1.7 |
| Idle Average (W) | 0.45 |
| Environmental/Temperature | |
| Operating Temperature (°C) | 0°C - 60°C |
| Nonoperating Temperature (°C) | -40° - 70°C |
| 2ms Operating Shock (Gs) | 400 |
| 1ms Nonoperating Shock (Gs) | 1000 |
| Acoustics, Idle, Typical (bels) | 2.0 |
| Acoustics, Seek, Typical (bels) | 2.2 |
| Physical | |
| Height (mm/in) | 7.0/0.276 |
| Width (mm/in, max) | 69.85/2.750 |
| Depth (mm/in, max) | 100.35/3.951 |
| Weight (g/lb) | 90.0/0.198 |
| Special Features | |
| Multi-Tier Caching Technology | Yes |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
