Seagate Part #/MPN: ST12000NM0007
DiscTech Item #: SGT-ST12000NM0007-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 12TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: Up to 261, 249
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

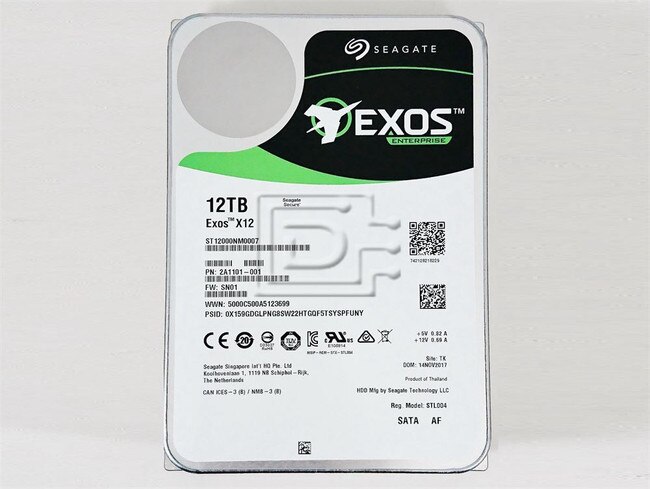

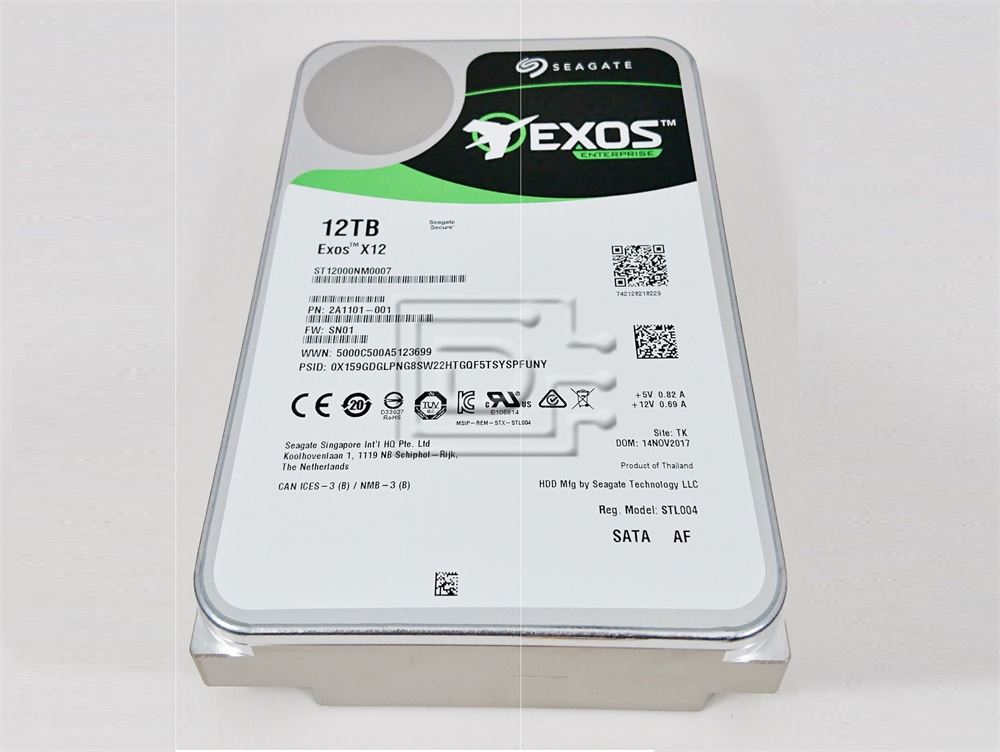

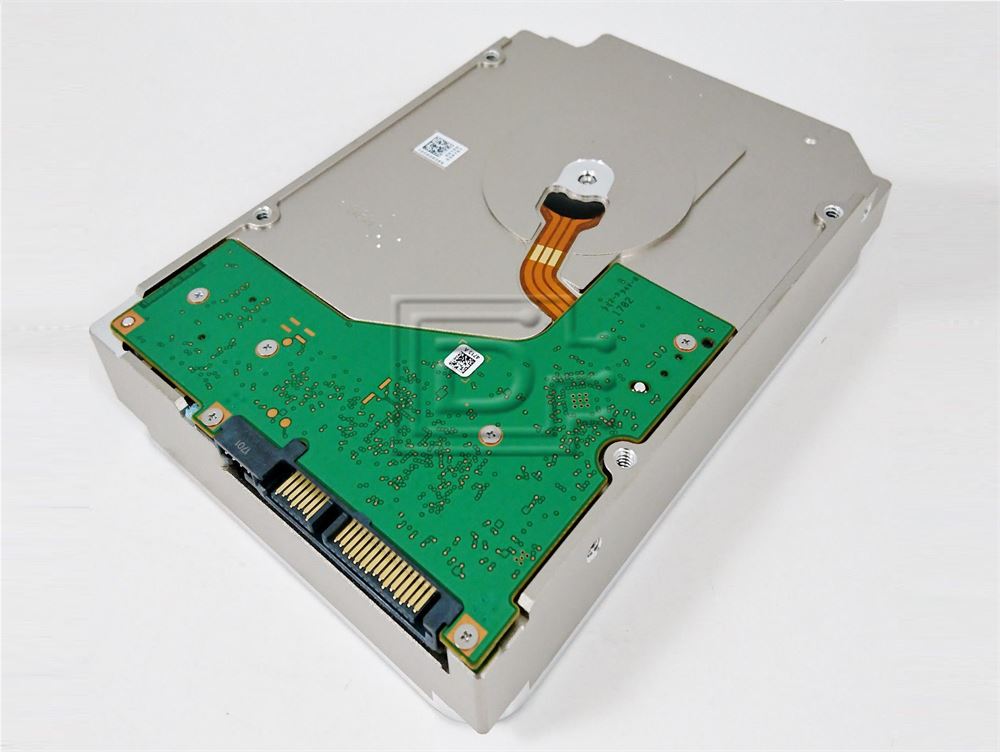

Seagate ST12000NM0007 12TB 3.5in 6Gbps 7.2K RPM 512e Helium Serial ATA / SATA HDD - Refurbished
Seagate ST12000NM0007 12TB / 12000GB 3.5" 6Gb/s 7200 RPM 512 Emulation Helium Serial Attached Technology Attachment Hard Disk Drive - Refurbished
Enterprise Capacity 3.5 HDD (Helium)
Maximum Storage Capacity for Highest Rack Space Efficiency
- 12TB per drive for 50% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Highest 12TB HDD performance with enhanced caching, making it perfect for Big Data applications
- Hyper scale SATA model tuned for large data transfers
- PowerBalance™ feature optimizes IOPS/Watt
- Advanced Write Caching feature for 20% boost in random write performance
- Forged, wrought-aluminum base and a helium sealed-drive design with no porosity and uniform density
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF
Best-Fit Applications
- Hyper scale applications/cloud data centers
- Massive scale-out data centers
- Big Data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.
| Enterprise Capacity 3.5 HDD (Helium) | |
|---|---|
| Model Number | ST12000NM0007 |
| Sector Size | 512e |
| Capacity | 12TB / 12000GB |
| Interface | SATA 6Gb/s |
| Features | |
| Superior Helium Sealed-Drive Designed With Wide Weld | Yes |
| Digital Sensors for Helium Pressure | Yes |
| Protection Information (T10 DIF) | - |
| SuperParity | Yes |
| PowerChoice™/PowerBalance™ Technology | Yes |
| Low Halogen/Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| Secure Download and Diagnostics (SD&D) RSA 2048 signed firmware | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) | Up to 261, 249 |
| Random Read/Write 4K QD16 WCD (IOPS) | 170/400 |
| Interface Ports | Single |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle A (W) Average | 5.0W |
| Average Latency (ms) | 4.16 |
| Operating Power | 7.8 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| Physical | |
| Height(mm/in, max) | 26.11mm/1.028in |
| Width(mm/in, max) | 101.60mm/4.0in |
| Depth(mm/in, max) | 147.0mm/5.787in |
| Weight(g/lb) | 650g/1.433lb |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
