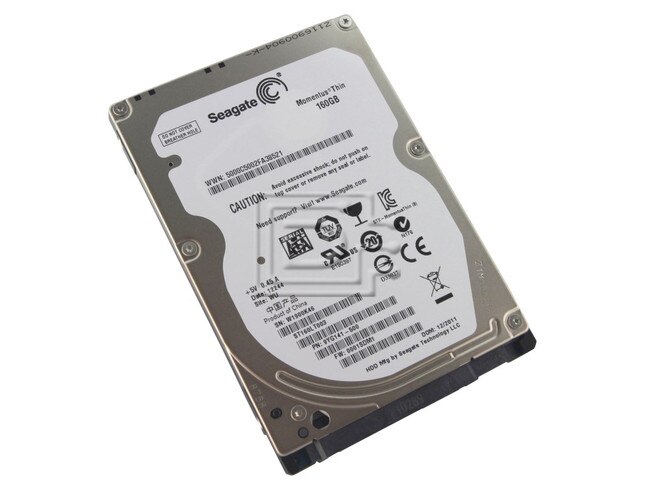

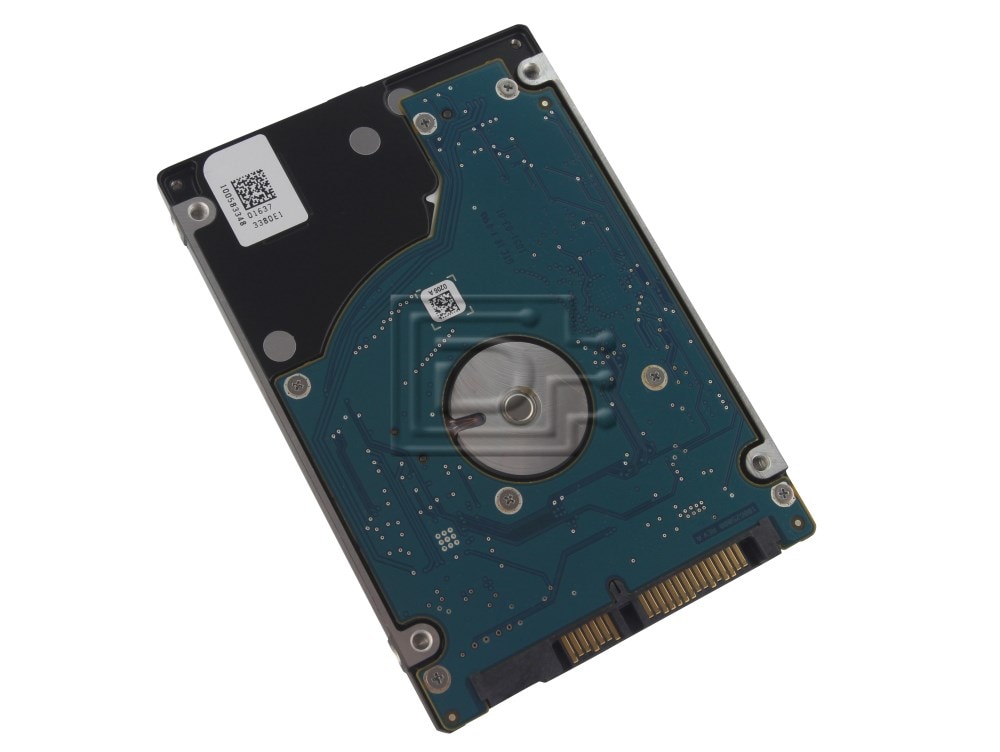

Seagate ST160LT003 SATA Hard Drive

Seagate Part #/MPN: ST160LT003

DiscTech Item #: SGT-ST160LT003-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 160GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

Seagate ST160LT003 Momentus Thin 5.4k RPM, 160GB SATA Hard Drive - Brand New

Alt MPN: 9YG141-500

Seagate clearly demonstrates how to help differentiate, increase profitability and meet market demand for slim computing with the Seagate® Momentus® Thin drive.

With the 2.5-inch form factor, Seagate enables compromise free, cost-effective and reliable storage for slim, entry-level laptops, high-end netbooks, ultra portables and consumer electronics devices.

  • Momentus Thin drives come in 320, 250 and 160GB capacities, to provide the right capacity points for full functioning computing devices. For performance enthusiasts, check out the all-new 7200-RPM Momentus Thin drive.

  • With 8MB of cache and a 5400-RPM spindle speed, users can experience mainstream performance with low power consumption. Need even more performance? Try out the 16MB cache with 7200 RPM for high-performance thin laptops.

  • Seagate Self-Encrypting Drives (SED) deliver government grade encryption without performance degredation – protecting your data where it lives.

  • The Momentus Thin SED is the first Trusted Computing Group Opal specification drive to achieve FIPS 140-2, Level-2 certification by the U.S. and Canadian governments.
Model NumberST160LT003
InterfaceSATA 3Gb/s
Areal density (avg)425Gb/in2
Guaranteed Sectors312,581,808
Height7.0mm (0.276 in)
Width70.10mm (2.76 in)
Length100.55mm (3.959 in)
Weight (typical)92g (.203 lb)
Spin Speed (RPM)5400 RPM
Average latency5.6ms
Random read seek time11ms
I/O data transfer rate300MB/s
Unrecoverable read errors1 in 1014
Annual Failure Rate0.48%
5V start max current1.0A
Average idle power0.48W
Average operating power1.30W
Average seek power1.40W
Ambient Temperature
Maximum operating temperature change20°C per hour
Maximum nonoperating temperature change35°C per hour
Operating Shock (max)350 Gs for 2ms
Nonoperating Shock (max)1000 Gs for 1ms
Acoustics (Idle Volume)2.0 bels
Acoustics (Seek Volume)2.2 bels
Storage TypeHDD

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 9YG141-500

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
