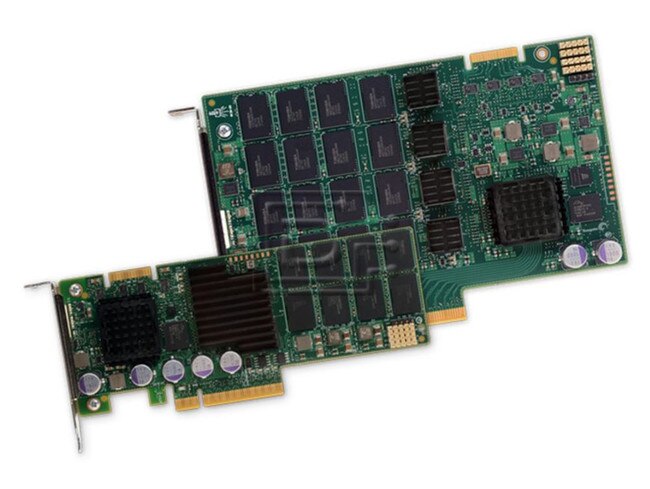

Seagate ST1860KN000 1.86TB PCIe Application Accelerator Card

Seagate Part #/MPN: ST1860KN000

DiscTech Item #: SGT-ST1860KN000-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.86TB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Full-Height/Half-Length

Sector Size: 512 / 512e

Sustained Throughput: Up to 2.0GB/s / Up to 1.27GB/s

Average Seek Time: <50

Electrical Interface: PCIe - v2.0 - 8GBps


SSD Endurance DWPD: Enterprise Read Intensive

Seagate Nytro XP6210 ST1860KN000 1.86TB FHHL Read Intensive eMLC PCI Express / PCIe SSD Application Accelerator Card – Brand New

Seagate Nytro XP6210 St1860KN000 1.86TB / 1860GB Full Height, Half Length Read Intensive 3 Drive Writes Per Day Enterprise Multi-Level Cell Peripheral Component Interconnect Express 2.0 Solid State Disk Drive Application Accelerator Card - Brand New

Nytro™ XP6200 Series Application Accelerator Cards

Purpose-built for the demanding hyperscale and mega datacenters, the Seagate® Nytro XP6200 series delivers accelerated performance for read-intensive applications, optimized power and thermals, and an overall lower cost per gigabyte PCIe flash solution. By plugging flash directly into the server’s PCIe slot, these cards can help improve performance and reduce the physical space needed to support high-density enterprise applications.

Accelerate Read-Intensive Applications
Hyperscale datacenters require cost-effective scaling to thousands of servers to meet the compute and storage demands of Web 2.0, cloud computing and big data analytics applications. These applications, which search data for content or comb data for trends, are primarily reading data from storage. Nytro XP6200 flash accelerator cards are designed to reduce latency and deliver high performance by connecting flash closer to the CPU. Multiple Nytro XP6200 cards can be installed in the same server to get even higher application performance.

Reduce Power, Cooling and Resource Overhead
Delivering leading endurance and reliability using low-cost flash, this new design is optimized for low power and thermal characteristics. The Nytro XP6200 series requires up to 30% less power than similar cards using eMLC flash technology. Unlike other cards with flash memory, this efficient design does not require heat sinks to control temperature. The lower power and cooling translates into lower OpEx. The Nytro XP6200 cards require minimal resources from the CPU and host memory when compared with other cards. The Nytro XP6200 storage controllers offload storage management tasks and use enterprise hardened, standard drivers that are typically in-box with most operating systems. And, with the Seagate Enterprise Storage Manager—a web-based management tool—users can easily create and manage Seagate flash configurations from a single interface.

Enterprise Flash Management With With SandForce® Technology
The Nytro XP6200 cards use SandForce flash controllers. The cards are designed to deliver consistently high levels of performance, endurance and reliability under demanding workload conditions. Seagate DuraWrite™ technology optimizes the number of program cycles to the flash storage, effectively extending its rated write endurance by 8× or more, depending on the use case, when compared to standard controllers for compressible data.

Key Features and Benefit

  • Cost-effective for low-latency applications
  • Offload architecture minimizes requirements on host CPU and memory
  • Plug and Play—no user configuration required
  • Enterprise quality and reliability
  • Optimized design for reduced thermal dissipation and power requirements
  • DuraWrite™ advanced wear leveling technology minimizes NAND wear
  • Ultra-low write amplification provides consistent high performance
  • Self-healing from block and page level failures—helps reduce field failures
  • Bootable solutions
  • In-box drivers for most operating systems
  • Advanced Secure Erase support protects sensitive data


This drive is compatible with any server that accepts Half-Height/Half-Length PCIe drives.

Nytro™ XP6200 Series
Product SpecificationXP6210
Model NumberST1860KN000
Capacity1.86TB / 1,860 GB
Form FactorFHHL / Full Height, Half Length
Interfacex8 PCI Express 2.0
Read Bandwidth (256K)Up to 2.0GB/s
Write Bandwidth (256K)Up to 1.27GB/s
Read IOPS (8K)Up to 121,000
Write IOPS (8K)Up to 45,000
Average Latency (Microseconds)<50
NAND Petabyte Writes7
Flash Memory TypeeMLC
End-opf-LifeData Retention>3 months
Product Health MonitoringSelf-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) commands, plus additional SSD monitoring
Environmentals0°C to 50°C @ 250 LFM
Management ToolsCLI, Seagate Enterprise Storage Manager (GUI-based)
Operating System Support
  • RHEL: 5.0-5.10, 6.0-6.5, 7.0
  • CentOS: 5.3-5.10, 6.0-6.5
  • OEL: 5.4-5.9, 6.0-6.5
  • SLES: 10 SP0-SP4, 11 SP1-SP3
  • Debian: 6.0.5, 6.0.7, 7
  • Fedora 17, 18
  • Ubuntu: 110.04, 11.1, 12.04, 14.04 LTS
  • Windows Server: XP SP2, Windows7-SP1, 8, Windows Server: 2003 R2 SP2, 2008 R2-SP1, 2012 R2 SP1
  • Solaris: 10U10, 11 (x86 & SPARC)
  • FreeBSD: 7.2, 7.4, 8.2, 8.3, 9.0
  • Vmware: ESX4.0U4, 4.1U2, 5.0 U1, 5.1, 5.5
Regulatory COmplianceSafety:
  • US/Canada UL
  • Europe CB

Agency Certifications:
  • CE mark
  • C-Tick mark
  • Canadian Compliance Statement
  • KCC
  • HF
  • Taiwan BSMI
  • Japan VCCI
  • Russia GOST
  • FCC Class B
  • CISPR Class B
Environmental Compliance
  • RoHs
  • WEEE
  • 1500

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 5 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
