Seagate Part #/MPN: ST19171FC
DiscTech Item #: SGT-ST19171FC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:17Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 9GB
Speed: 7,200RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 80 to 124
Average Seek Time: 8.8/9.9
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 512KB

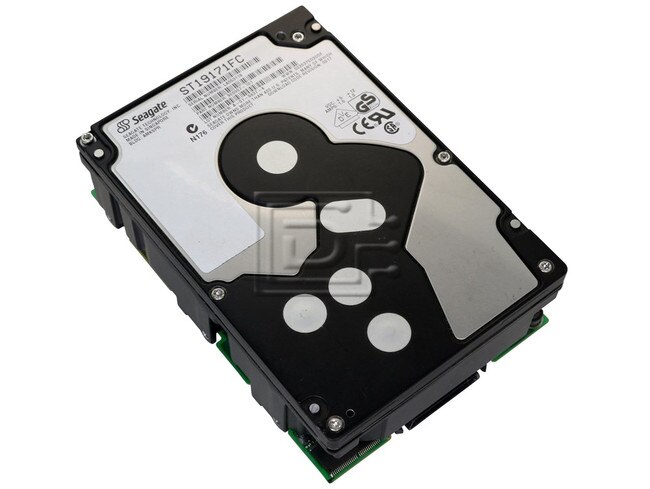

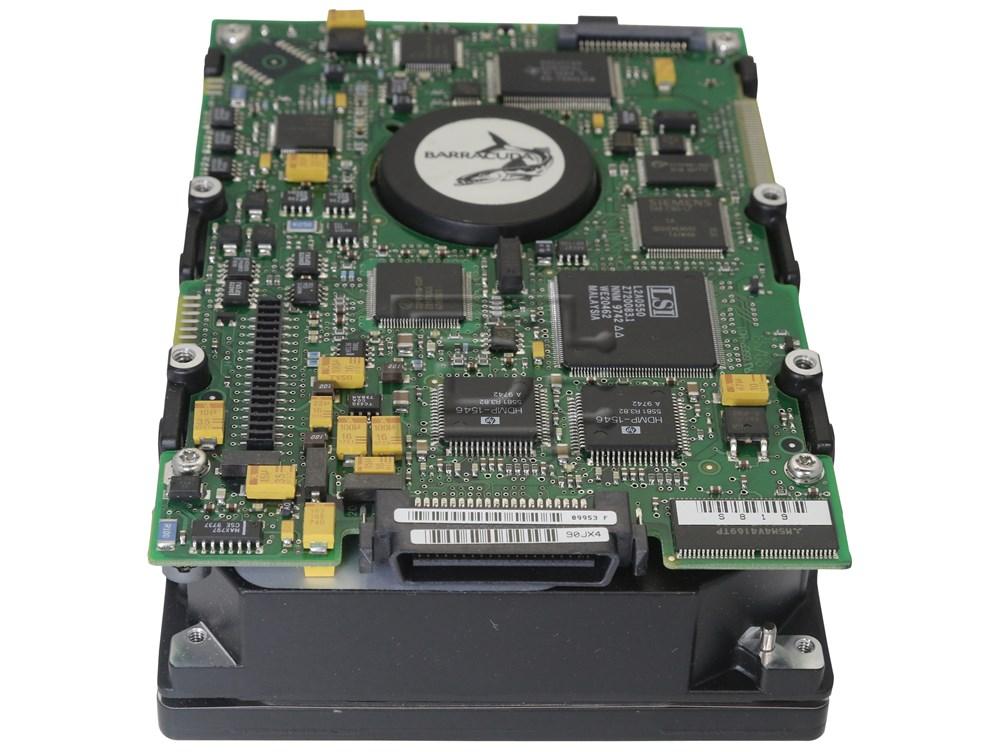

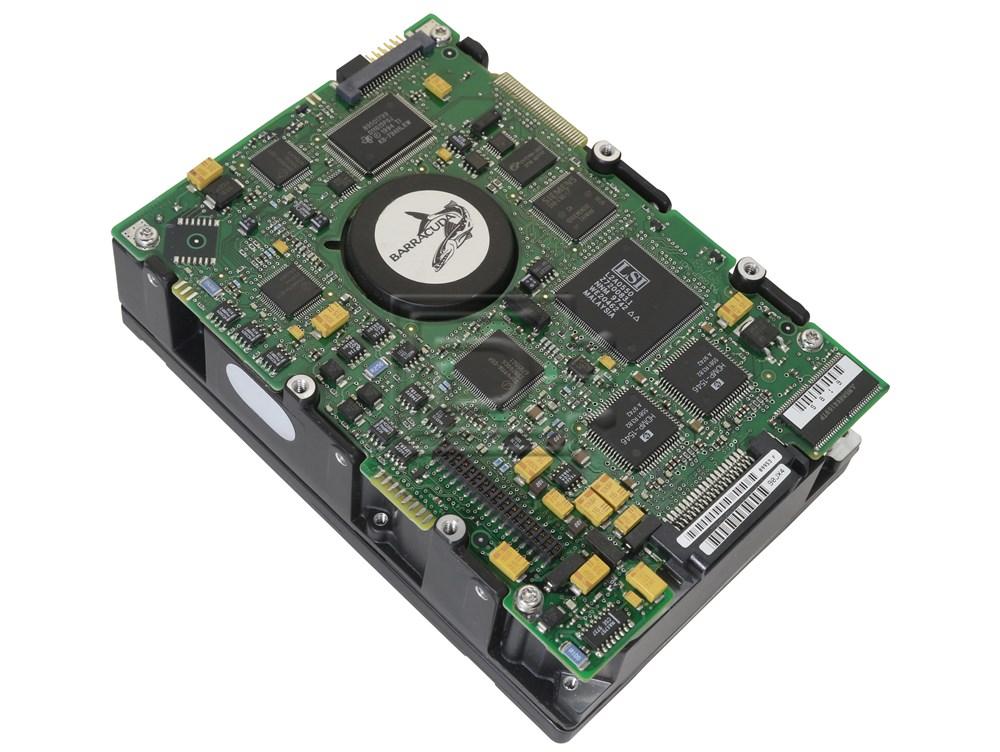

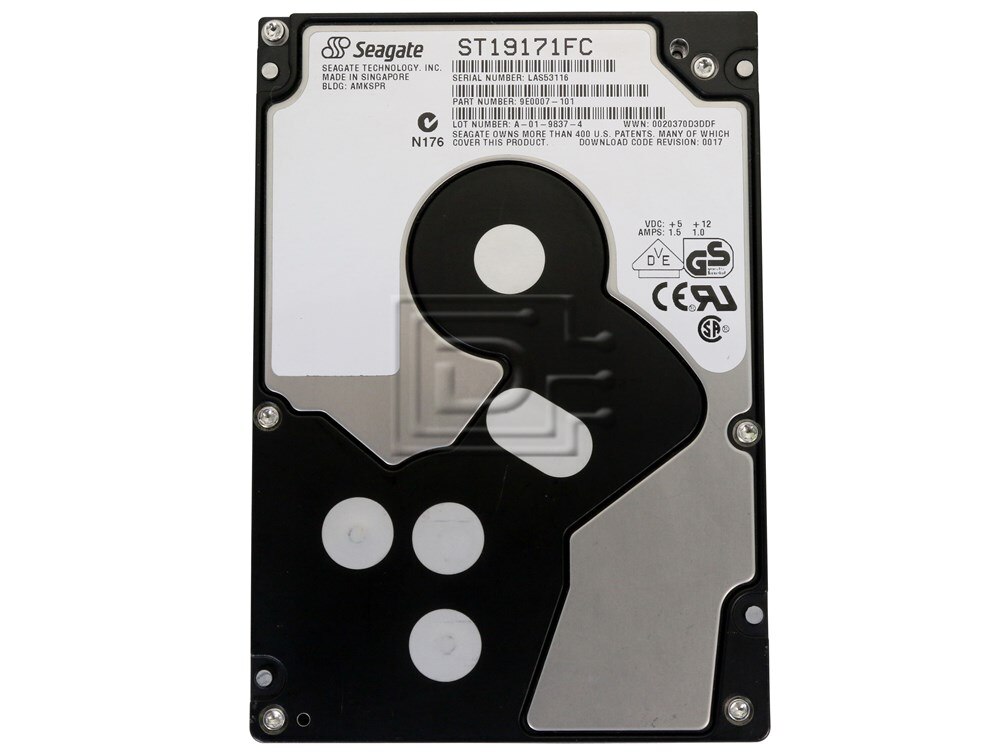

Seagate Barracuda 9 ST19171FC 9.1GB 3.5in 7.2K RPM FC-AL HDD - Refurbished
Seagate Barracuda 9 ST19171FC 9.1GB 3.5" 7200 RPM Fibre / Fiber Channel Arbitrated Loop ASA Hard Disk Drive - Refurbished
Barracuda 9 Unmatched performance and reliability for Power PCs, workstations, disc arrays, file servers and supercomputers
- 8- and 16-bit UltraSCSI interface
- Single Connector Attachment (SCA)
- MR heads, embedded servo and PRML channel
- 7,200-RPM, 7.17 msec average latency
- Fibre Channel-Arbirtrated Loop (FC-AC) interface
- Advanced SCSI Architecture II (ASA II)
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in LFF Fibre Channel Drive.
| Barracuda 9 | |
|---|---|
| Model Number | ST19171FC |
| Formatted Mbytes (512 bytes/sector) Interface | 9.1 GB UltraSCSI (8- and 16-bit, SCA) Fibre Channel (dual port) |
| PERFORMANCE | |
| Internal Transfer Rate, ZBR (Mbits/sec) | 80 to 124 |
| External Transfer Rate, 8/16/FC (Mbytes/sec) | 20/40/100 |
| Multisegmented Cache (Kbytes) | 512(2,048 opt) |
| Track-to-Track Seek, Read/Write (msec) | 0.6/1.1 |
| Average Seek, Read/Write (msec) | 8.8/9.9 |
| Maximum Seek, Read/Write (msec) | 19/20 |
| Average Latency (msec) | 4.17 |
| Spindle Speed (RPM) | 7,200 |
| CONFIGURATION/ORGANIZATION | |
| Discs/Heads | 10/20 |
| Servo | Embedded |
| Bytes per Sector typ | 512 |
| Cylinders | 5,274 |
| Recording Method | PRML (0,4,4) |
| RELIABILITY/DATA INTEGRITY | |
| MTBF (power-on hours) | 1,000,000 |
| MTTR (hours) | depot |
| Recoverable Read Errors per Bits Read | 10 per 10^11 |
| Nonrecoverable Read Errors per Bits Read | 1 per 10^14 |
| Seek Errors (per seek) | 10 per 10^8 |
| POWER REQUIREMENTS | |
| +12 VDC ±5% (amps typ) [FC] | 0.7 [0.89] |
| +12 VDC ±5% (amps MAX) | 2.2 |
| +5 VDC ±5% (amps typ) [FC] | 0.8 [1.20] |
| Power (Idle watts) [FC] | 13.0 [16.7] |
| ENVIRONMENTAL | |
| Operating (°C) | 5 to 50 |
| Nonoperating (°C) | -40 to 70 |
| PHYSICAL | |
| Height (inches/mm) | 1.62/41.1 |
| Width (inches/mm) | 4.0/101.6 |
| Depth (inces/mm) | 5.75/146.0 |
| Weight (lbs/kgs) | 2.1/0.93 |
Click here to view the manufacturer's item description/brochure
Weight: 2.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
