Seagate Part #/MPN: ST2000NM0055
DiscTech Item #: SGT-ST2000NM0055-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 226
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 128MB

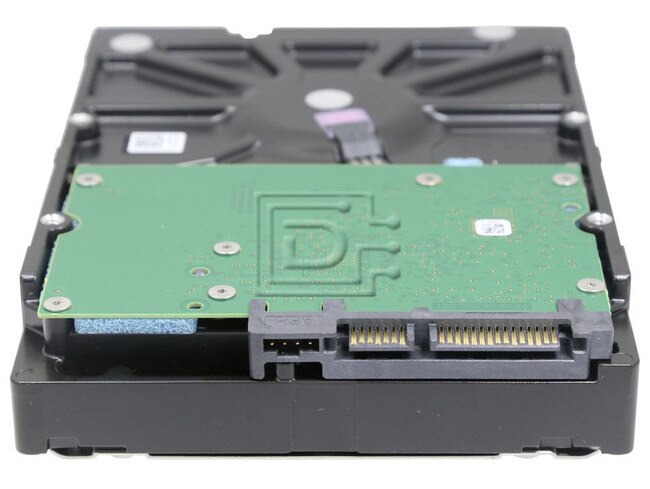

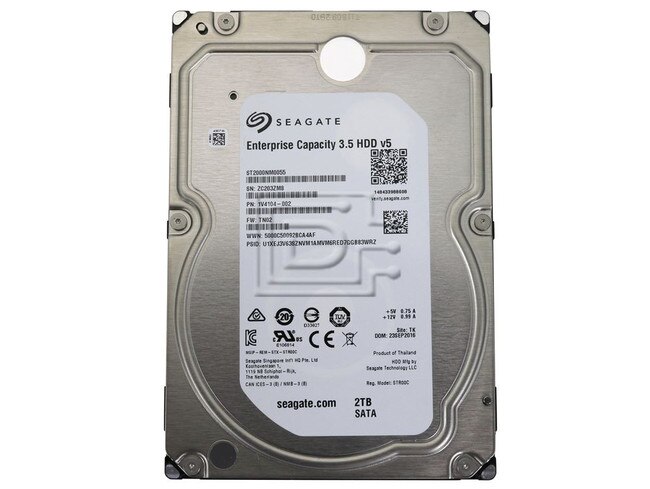

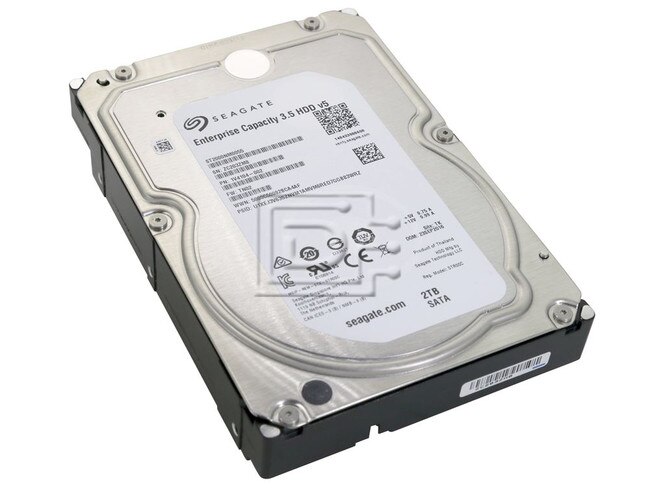

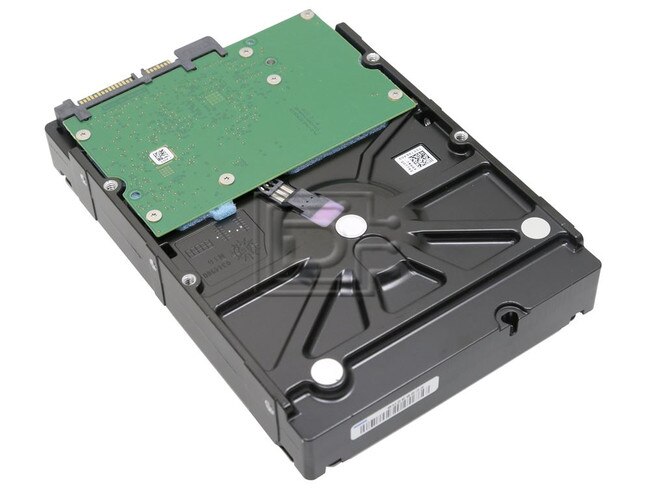

Seagate ST2000NM0055 2TB 3.5in 6Gbps 7.2K RPM 512n Serial ATA / SATA Hard Drive - Brand New
Seagate ST2000NM0055 2TB / 2000GB 3.5" 6.0 Gb/s 7200 RPM 512 Native Serial Attached Technology Attachment Hard Disk Drive - Brand New
Enterprise Capacity 3.5 HDD
Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- 1TB to 8TB , 3.5-inch enterprise drive with industry-leading conventional magnetic recording (CMR) technology
- Advanced Write Caching feature enables up to 100% performance improvement in random writes over last-generation drive
- 12Gb/s SAS and SATA 6Gb/s interfaces in industry-standard formats (512n, 512e and 4Kn) for easy integration into replicated and RAID multi-drive storage servers and systems
- State-of-the-art cache, on-the-fly error-correction algorithms, super parity and end-toend SAS-based data integrity for accurate data storage Industry-leading rotational vibration design helps ensure consistent performance in dense multi-drive systems
- Engineered for 24x7 workloads of 550TB/yr
- Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis
- On-demand PowerBalance™ feature available for lower power/performance in random read/write environments
- Seagate Secure® Self-Encrypting Drive featuring Instant Secure Erase for cost-saving drive retirement and secure data-at-rest protection
- Seagate SeaTools™ diagnostic software to provide drive self-tests ensuring no unnecessary downtime and maximizing TCO
Best-Fit Applications
- Hyperscale applications/cloud data centers with replicated storage
- Massive scale-out data centers and big data analytics
- High-capacity density RAID storage
- Mainstream enterprise external storage (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.
| Seagate Enterprise Capcity 3.5 HDD | |
|---|---|
| Base Model No | ST2000NM0055 |
| Capacity | 2TB / 2000GB |
| Interface | SATA 6 Gbp/s |
| Sector Size | 512n |
| Special Features | |
| Protection Infromation | - |
| Humidity Sensor | Yes |
| SuperParity | Yes |
| Halogen Free | Yes |
| PowerChoice Technology | Yes |
| PowerBalance Technolgy | No |
| Cache | 128MB |
| Advance Writing Caching (internal NOR flash) | No |
| Reliability/Data Integrity | |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5 |
| MTBF | 2,000,000hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-On Hours | 8760 |
| Bytes per Sector | 512 |
| Performance | |
| Spin Speed | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0,3.0,1.5 |
| Max Sustainable Transfer Rate | 226MB/s |
| Average Latency(ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 1500Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Average(W) | 4.257W |
| Average Operating Power | 5.91W |
| Power Supply Requirements | +12 V and +5 V |
| Environmental/Temperature | |
| Temprature, Operating(°C) | 5°C - 60°C |
| Shock, Operating Power | 70/40Gs |
| Shock, Nonoperating, 1 ms/2ms (Gs) | 250/150Gs |
| Physical | |
| Height(mm/in) | 26.1mm/1.028in |
| Width(mm/in, max) | 101.85mm/4.01in |
| Depth(mm/in, max) | 147.0mm/5.787in |
| Weight(g/lb) | 610g/1.34lb |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
