Seagate ST2000NX0253 2000GB SATA Hard Disk Drive

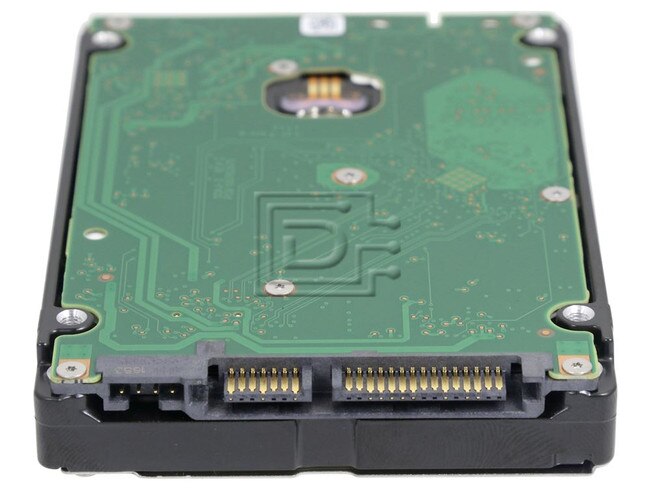

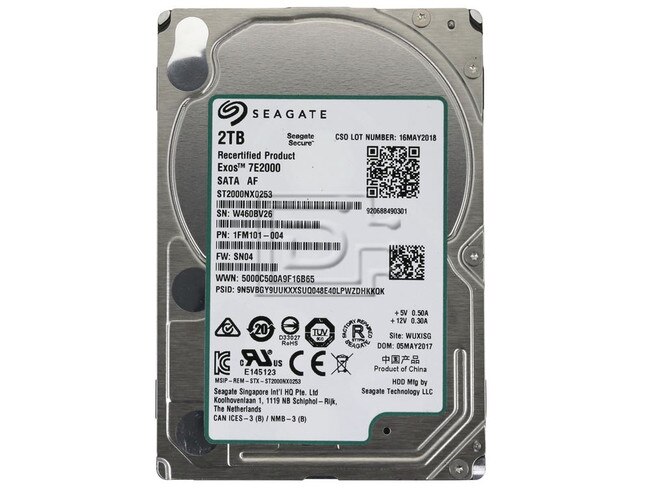

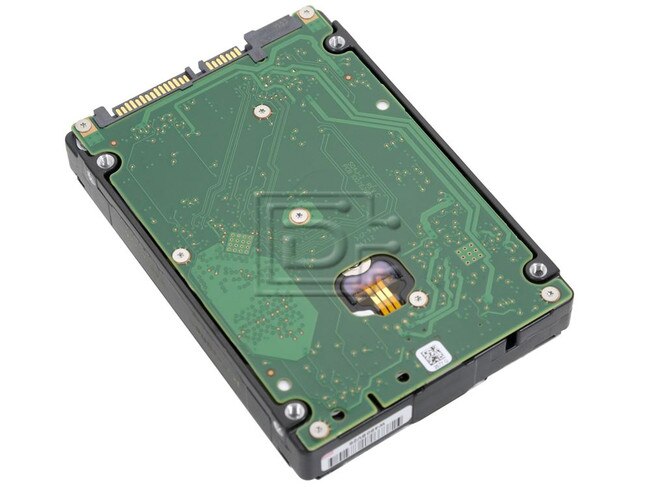

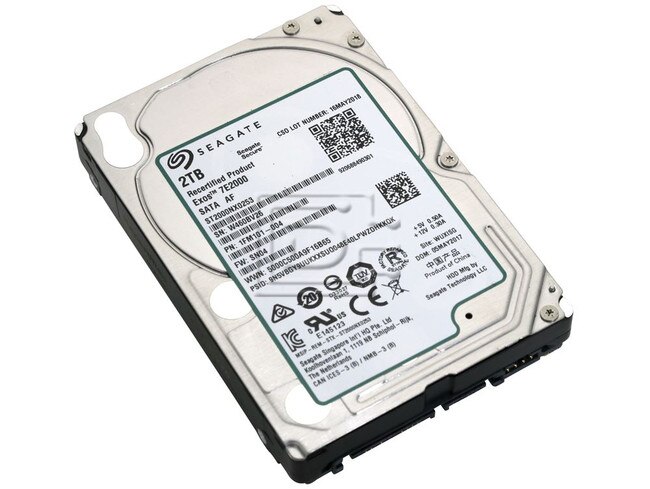

Seagate ST2000NX0253 1FM101-004 SATA Hard Drive Image 1 imageSeagate ST2000NX0253 1FM101-004 SATA Hard Drive Image 2 imageSeagate ST2000NX0253 1FM101-004 SATA Hard Drive Image 3 imageSeagate ST2000NX0253 1FM101-004 SATA Hard Drive Image 4 image
  • Factory Refurbished
    Condition Levels Explained

    The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$225.00

Capacity:2TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:2.5" SFF Server Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:128MB
Click to see more 2TB SATA 7.2K RPM Drives

Description

Seagate ST2000NX0253 2TB 2.5" 6Gbps 7200RPM Enterprise Capacity (512e) SATA HDD - Factory Recertified

Seagate ST2000NX0253 2000GB 2.5" 6.0 Gbps 7.2K RPB Enterprise Capacity 512 Emulation Serial Advanced Technology Atachment Hard Disk Drive - Factory Recertified

Design Small and Deliver BIG—2.5-Inch Nearline Drive

  • Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
  • Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
  • Third-generation, enterprise-class reliability for 24x7 environmental robustness.
  • Highest efficiency for over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
  • Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
  • Lowest enterprise operation power and enhanced PowerChoice™ options for additional power savings during idle periods.

Best-Fit Applications

  • Storage-hungry business applications.
  • Storage area networks (SAN) and network attached storage (NAS)
  • Maximum-capacity entry-level servers and blade servers
  • Rich media content storage
  • Enterprise backup and restore—D2D, virtual tape
  • Cloud computing
Alt Pt# 1FM101-004


Compatibility

This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard Drive) SATA drive.

Specifications

Drive ModelST2000NX0253
Capacity2TB/2000GB
InterfaceSATA 6Gbps
Self-Encrypted DriveNo
Features
PowerChoice™ on-demand power optionYes
Low HalogenYes
RAID Rebuild™Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)1.4 million
Reliability Rating @ Full 24x7 operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760
Bytes per Sector512
Performance
Spindle Speed (RPM)7200
Cache Buffer, Multisegmented (MB)128
Interface Acces Speed (Gb/s)6.0
Max. Sustained Transfer Rate (MB/s)136
Average Latency (ms)4.16
Interface PortsSingle
RV Tolerance(rad/s to 1800Hz)16
Power Management
Idle Power (W)3.87
Typical Operating, Random Read (W)5.22
PowerChoice™ Technology (Standby) (W)1.14
Power Supply Requirements+12V and +5V
Enviromental
Temperature, Operating (˚C)5 to 55
Vibration, Operating, 5Hz to 500Hz (Gs)0.5
Vibration, NonOperation, 5Hz to 500Hz (Gs)3.0
Shock, Operating, 2ms (Gs)25
Shock, Nonoperating, 2ms (Gs)400
Acoustics, Typical Idle (bels)2.8
Acoustics, Typical Seek (bels)3.2
Physical
Height (in/mm)0.591/15.00
Width (in/mm)2.760/70.10
Depth (in/mm)3.955/100.45
Weight (lb/g)0.437/198
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1FM101-004

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Factory Refurbished

Warranty

1 Year DiscTech Warranty

4.7 Overall6966 Reviews
