Seagate Part #/MPN: ST200FM0012
DiscTech Item #: SGT-ST200FM0012-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 300 - 3.0Gbps
SSD Type: SLC
SSD Endurance DWPD: Enterprise Write Intensive

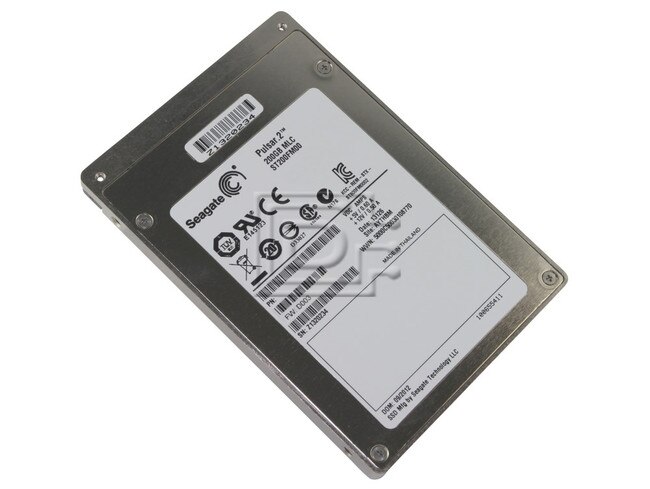

Seagate ST200FM0012 200GB 3Gbps 2.5" SATA SLC SSD - Brand New
Seagate ST200FM0012 200GB 3.0 Gbps 2.5" Serial ATA Single-Level Cell Solid-State Drive
Key Advantages
- Single-level cell (SLC) technology optimizes SSD reliability and endurance
- Up to 200GB capacity in a 2.5-inch form factor and 7mm z-height
- 0.44 percent AFR for high reliability and endurance
- Power loss data protection to help ensure against data loss upon power failure
- SATA 3Gb/s interface to support current blade server chipsets
- 30 years of Seagate leadership in meeting enterprise customer requirements
- Leverages industry-leading, global enterprise support
- Industry-leading solid-state storage (SSS) and solid state drive standards development through JEDEC and SNIA
Best-Fit Applications
- Enterprise blade server applications
- General enterprise server applications
Compatibility:
This drive is compatible with enterprise grade servers and storage arrays that accept a 2.5" x 15mm SSD drive.
| Product Specifications | |
|---|---|
| Product Name | Seagate ST200FM0012 |
| Product Type | Solid State Drive |
| Drive Interface | SATA |
| Drive Width | 2.5" |
| Drive Interface Standard | 3Gb/s SATA |
| Drive Type | Internal |
| Storage Capacity | 200GB |
| NAND Flash Type | SLC |
| Performance | |
| Sustained Data Transfer Rate | 240,000 Mb/s |
| I/O Data Transfer Rate, Max | 300 MB/s |
| Peak Sequential Read/Write Command Rate 128 KB | 240/220 MB/s |
| Sustained Sequential Read/Write Command Rate 128KB | 200/100 MB/s |
| Peak Random Read/Write Command Rate 4KB | 30,000/25,000 IOPS |
| Sustained Random Read/Write Command Rate 4KB | 25,000/5200 IOPS |
| Configuration/Reliability | |
| Unrecoverable Read Errors per Bits Read (New, Max) | 1 LBA per 10E16 |
| Unrecoverable Read Errors per Bits Read (EOL, Max) | 1 LBA per 10E15 |
| Annualized Failure Rate (AFR) | 0.44% |
| Power Management | |
| 5V Start Max Current (A) | 0.83 |
| Average Idle Power (W) | 0.75 |
| Average Operating Power (W) | 1.30 |
| Environmental | |
| Operating Ambient Temperature | 5 to 60℃ |
| Nonoperating Ambient Temperature | -40 to 70℃ |
| Ambient Temperature Change per Hour, Operating, Max | 20℃ |
| Ambient Temperature Change per Hour, Nonoperating, Max | 20℃ |
| Max Operating Shock, 0.5ms | 1500 Gs |
| Max Nonoperating Shock, 0.5ms | 1500 Gs |
| Operating Relative Humidity, Noncondensing | 5 to 95% |
| Nonoperating Relative Humidity, Noncondensing | 5 to 95% |
| Operating Vibration, <2000Hz | 16 Grms |
| Nonoperating Vibration, <2000Hz | 16 Grms |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Width (in/mm) | 2.76/70.1 |
| Length (in/mm) | 3.96/100.53 |
| Weight, typical (lb/g) | 0.298/135 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
