Seagate Part #/MPN: ST200FM0053
DiscTech Item #: SGT-ST200FM0053-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 750
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

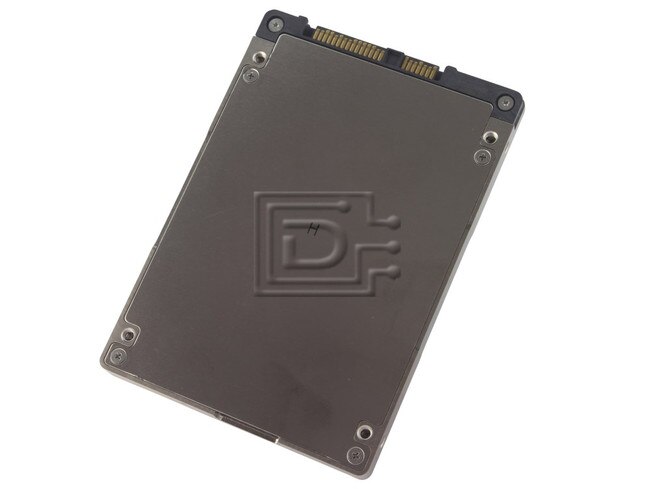

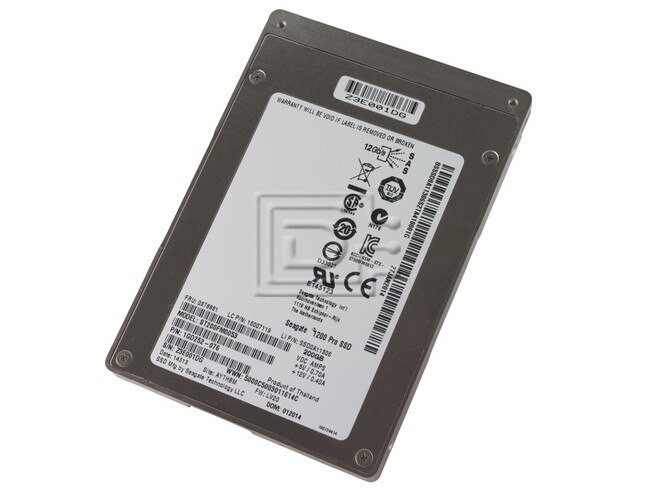

Seagate ST200FM0053 200GB 12.0 Gbps 2.5-inch Enterprise Serial-attached SCSI Multi-Level Cell Solid-State Drive - Refurbished
Alt MPN: 1GD252-076
Ultra-Fast, Consistent Performance Plus 12Gb/s SAS
- Helps remove storage bottlenecks and close the gap between processor and data access performance
- Delivers the speed and performance consistency needed for demanding enterprise applications
- Designed to reduce data access wait times under the most complex, write-intensive, mixed workloads
- First Solid-State Disk to ship in volume with 12Gb/s SAS while ensuring the highest level of reliability and scalability
- Ensures data availability for critical production systems by using redundant, failover I/O communication paths
- Helps improve ROI by leveraging existing SAS infrastructures
- Custom-designed controller leverages Seagate enterprise expertise and manufacturing excellence
- Helps safeguard data against unexpected power loss and protects data from undetected, unintentional corruption
- Helps ensure data integrity with multiple layers of I/O error detection and correction
Best-Fit Applications
- Demanding, enterprise applications with complex, write-intensive and mixed workloads
- IOPs-hungry enterprise applications, such as high-performance computing, online transaction processing (OLTP) and heavy data analytics
- Enterprise applications that demand high data availability and integrity as well as interface failover redundancy
- External enterprise storage solutions (SAN, NAS, DAS) and servers
Limited Warranty with Media Usage
This warranty is based on the shorter of term and endurance usage of the drive.
Compatibility: This drive is compatible with enclosures and servers able to accept 2.5" SATA drives.
| Product Specifications | |
|---|---|
| Product Name | ST200FM0053 |
| Product Type | Solid-State Drive |
| Drive Interface | SAS |
| Drive Width | 2.5" |
| Drive Interface Standard | 12Gb/s SAS |
| Drive Type | Internal |
| Storage Capacity | 200GB |
| NAND Flash Type | MLC |
| Performance | |
| Maximum Burst Transfer Rate | 1200MB/s |
| Peak sequential 128KB read/write data transfer rate (MB/s max) | 750/500 |
| Sustained sequential 128KB read/write data transfer rate (MB/s) | 750/500 |
| Peak 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustained 4KB random read/write command rate (IOPs) | 110,000/30,000 |
| Sustainable 4KB Random combined IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle) | 60,000 |
| Reliability | |
| TBW (per JEDEC JESD218) | 7300 TB |
| Power Requirements | |
| Average idle current (W) | 2.72 |
| Delayed start (max) DC (W) | 2.29 |
| Peak operating current (random read) Typical DC (W) | 3.71 |
| Peak operating current (random read) Maximum DC (W) | 3.98 |
| Peak operating current (random write) Typical DC (W) | 4.72 |
| Peak operating current (random write) Maximum DC (W) | 5.28 |
| Peak operating current (sequential read) Typical DC (W) | 4.39 |
| Peak operating current (sequential read) Maximum DC (W) | 4.61 |
| Peak operating current (sequential write) Typical DC (W) | 6.31 |
| Peak operating current (sequential write) Maximum DC (W) | 6.53 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1GD252-076
Weight: 0.5 lb
Warranty: 1 Year DiscTech
