Seagate Part #/MPN: ST200FN0021
DiscTech Item #: SGT-ST200FN0021-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI, SATA
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 520
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

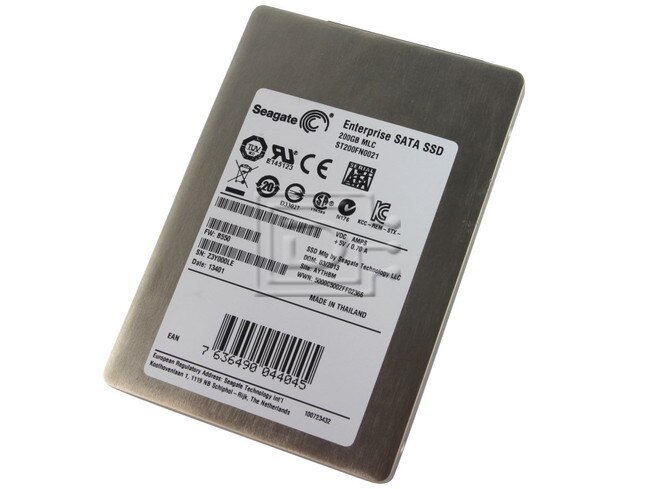

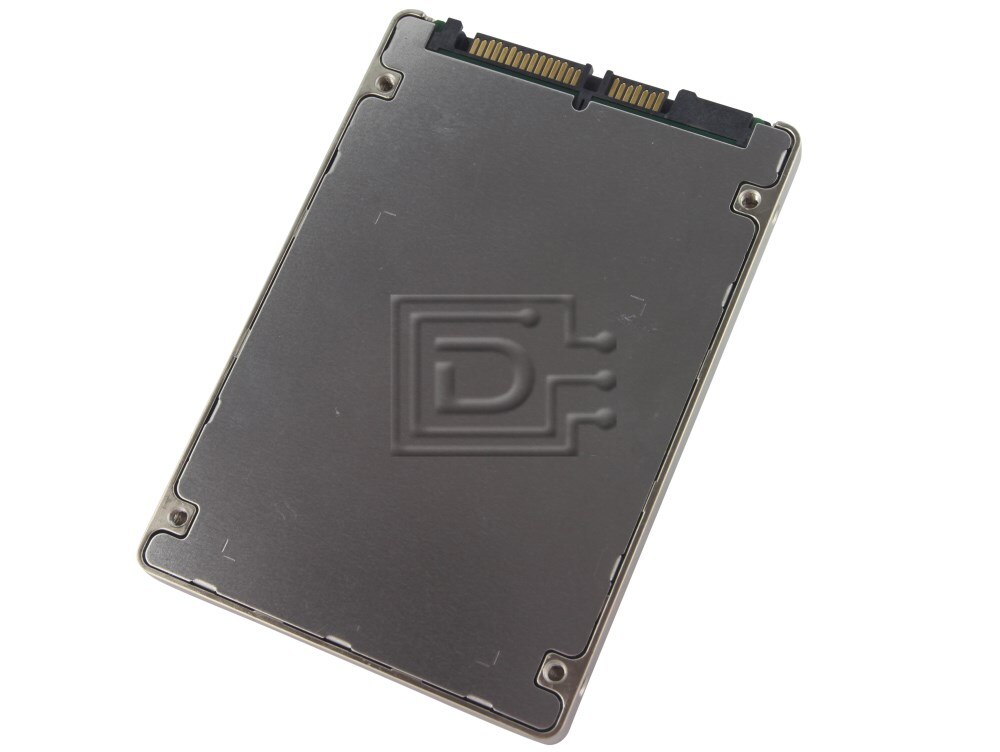

Seagate ST200FN0021 200GB 6Gbps 2.5" MLC SATA SSD Hard Drive - Brand New
Seagate ST200FN0021 200GB 6.0 Gbps 2.5-inch SATA Multi-Level Cell Solid-State Hard Drive - Brand New
A Class Above Client SSDs.
- Delivers the highest IOPS/watt to improve system performance and reduce power and cooling costs for performance-hungry data center and cloud applications
- Fast, consistent performance and low latency over the warranty period of the drive
- Helps reduce performance gaps between storage I/O and CPU operations
- Helps safeguard data against unexpected power loss
- Helps protect data from undetected, unintentional corruption (silent errors)
- One drive—many use cases
Best-Fit Applications
- Performance-hungry, read-intensive, data center applications, such as data indexing, edge caching, data streaming, or gaming/software delivery
- Cloud system builders, cloud service providers, content delivery networks and virtualized enterprise environments that demand the highest IOPS/W value
- Green IT and TCO reduction initiatives
- Power- and space-constrained data centers
Compatibility:
This drive is compatible with enterprise grade servers and storage arrays that accept a 2.5" x 15mm SSD drive.
Product Specifications | |
---|---|
Product Name | ST200FN0021 |
Product Type | Solid State Drive |
Drive Interface | SATA |
Drive Width | 2.5" |
Drive Interface Standard | 6Gb/s SATA |
Drive Type | Internal |
Storage Capacity | 200GB |
Maximum External Data Transfer Rate | 768 MBps (6 Gbps) |
NAND Flash Type | MLC |
Performance | |
Sustained Data Transfer Rate | 520 MB/s |
I/O Data Transfer Rate, Max | 600 MB/s |
Sequential Read/Write Command Rate Peak, 128KB | 520/400 MB/s |
Random Read/Write Command Rate Peak, 4KB | 85/30 KIOPS |
Configuration/Reliability | |
Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E16 |
Annualized Failure Rate (AFR) | 0.58% |
Total Drive Writes Over Warranty Period (JEDEC Workload, All LBAs Allocated) | 2600 |
Power Management | |
+5V Max Start Current (A) | 0.5 |
Average Sleep Power (W) | 0.5 |
Average Idle Power (W) | 1.05 |
Average Operating Power (W) | 2.8 |
Environmental | |
Internal Operating Temperature(℃) | 0 to 70 |
Nonoperating Temperature(℃) | -40 to 75 |
Temperature Change Rate/Hr, Max (℃) | 20 |
Relative Humidity, Noncondensing (%) | 5 to 95 |
Shock, 0.5ms (Gs) | 1000 |
Vibration, 20Hz to 2000Hz (Grms) | 11.08 |
Physical | |
Height (mm/in)² | 7.0/0.276 |
Width (mm/in)² | 70.10/2.76 |
Depth (mm/in)² | 100/0.220 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
