Seagate ST3000NM0063 3000GB SAS Hard Drive

Seagate Part #/MPN: ST3000NM0063

DiscTech Item #: SGT-ST3000NM0063-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 175

Average Seek Time: 4.16

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 128MB

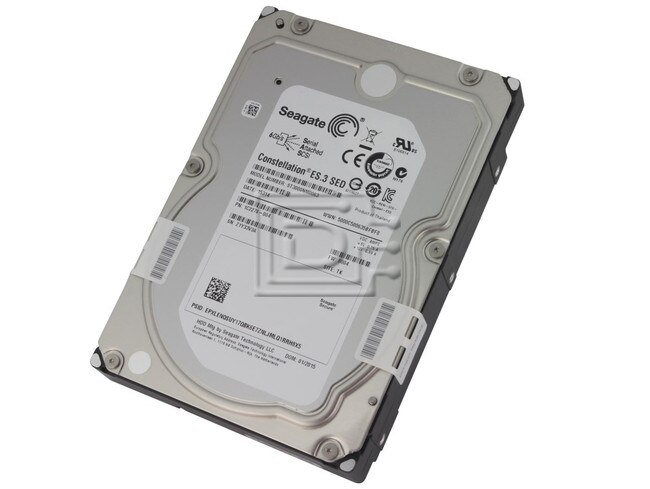

Seagate ST3000NM0063 3TB 3.5" 6Gbps 7.2K RPM SED (FIPS 140-2) Constellation ES.3 SAS HDD - Brand New

Alt MPN: 1C2278-004

Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications

  • Highest-capacity large form factor enterprise drive 3TB for demanding data growth.
  • Sixth-generation drive technology with SAS and SATA interfaces for 24x7 reliability.
  • Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage.
  • Best-in-class rotational vibration tolerance ensures consistent performance.
  • Improved power and cooling efficiencies with low power consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards.
  • Multi-drive firmware maximized for enterprise system availability.
  • Multi-drive firmware maximized for enterprise system availability.
  • Self-Encrypting Drive (AES-256) with FIPS 140-2 validation and Seagate Instant Secure Erase cuts IT drive retirement costs while protecting data at rest securely.

Best-fit Applications

  • High-capacity RAID storage.
  • Mainstream enterprise external storage arrays (SAN, NAS, DAS).
  • Cloud bulk data storage.
  • Enterprise backup and restore — D2D, virtual tape.
  • Centralized surveillance.
  • Drive ModelST3000NM0063
    Self- Encrypting DriveAES-256
    Federal Information Processing StandardsYes
    InterfaceSAS 6Gb/s
    Protection Information (T10 DIF)Yes
    Humidity SensorYes
    Super ParityYes
    Low HalogenYes
    PowerChoice™ TechnologyYes
    Cache, Multisegmented (MB)128
    Reliability/Data Integrity
    Mean Time Between Failures (MTBF)1.4M
    Reliability Rating @ Full 24x7 Operation (AFR)0.63%
    Nonrecoverable Read Errors per Bits Read1 sector per 10
    Power-On Hours per Year8760
    Sector Size (Bytes per Sector)512, 520, 528
    Spindle Speed (RPM)7,200
    Max Sustained Transfer Rate OD (MB/s)175
    Average Latency (ms)4.16
    Interface PortsDual
    Rotation @ 1500 Hz (rad/s)12.5
    Power Consumption
    Idle Power, Average (W)6.74
    Typical Operating, Random Read (W)10.72
    Power Supply Requirements+12V and +5V
    Temperature, Operating (°C)5 to 60
    Vibration, Nonoperating: <5Hz to 500Hz (Grms)0.25
    Shock, Operating, 2ms (Read/Write) (Gs)70/40
    Shock, Nonoperating, 1ms and 2ms (Gs)300
    Height (mm/in)26.1/1.028
    Width (mm/in)101.85/4.010
    Depth (mm/in)147.0/5.878
    Weight (g/lb)655/1.444

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 1C2278-004

    Weight: 1.8 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
