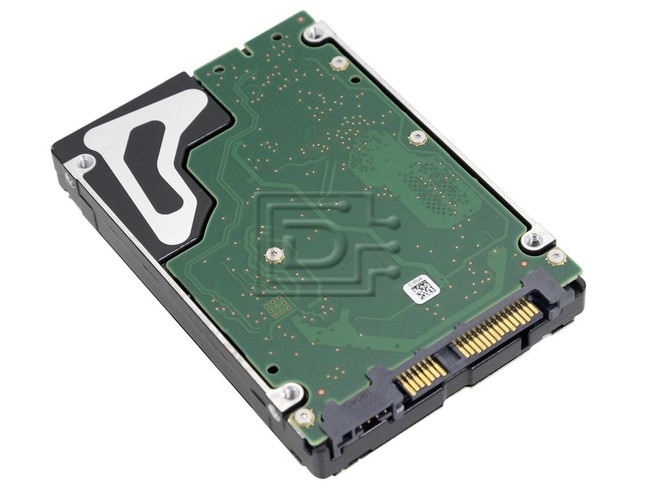

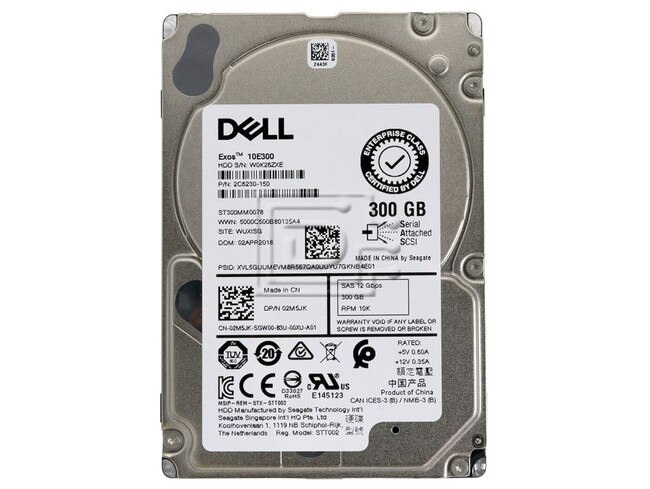

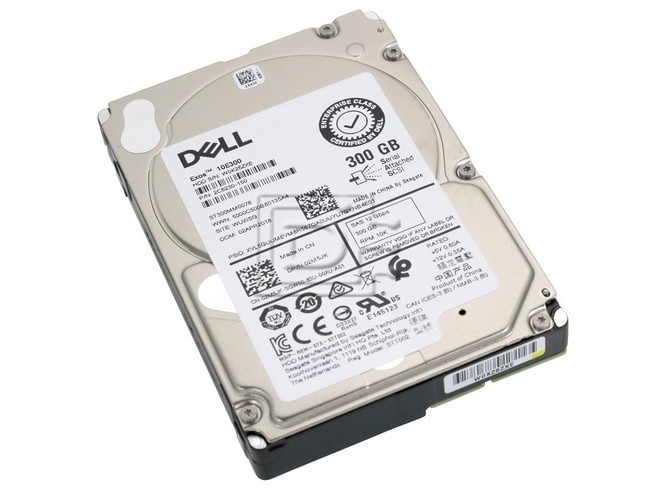

Seagate ST300MM0078 300GB SAS Hard Drive

Seagate Part #/MPN: ST300MM0078

DiscTech Item #: SGT-ST300MM0078-BN-OE-DEL


$179.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$179.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Dell 2M5JK / Seagate Enterprise Performance v8 ST300MM0078 300GB 2.5" 12Gbps 10K RPM SAS Hard Drive - Brand New OEM

Dell 2M5JK / Seagate Enterprise Performance v8 ST300MM0078 300GB 2.5" 12Gbps 10K RPM SAS Hard Drive - Brand New OEM

Alt MPN: 02M5JK / 2C6230-150

General Description
Seagate® Enterprise Performance 10K HDD v8 drives provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.

The TurboBoost functionality provides improved performance over standard HDDs in real-world workloads. This improvement is due to the addition of a solid state component that caches “hot” data for reads as well as protects write data via non-volatile cache (NVC).

Seagate Enterprise Performance 10K HDD drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI specifications, this document, and the SAS Interface Manual (part number 100293071) which describes the general interface characteristics of this drive. Seagate Enterprise Performance 10K HDD drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA hard disk drives. This allows integrators to continue to leverage existing investment in SCSI while gaining a 12Gb/s serial data transfer rate.

Seagate Enterprise Performance 10K HDD drives use a dedicated load/unload zone at the outermost radius of the media to eliminate the possibility of destroying or degrading data by landing in the data zone. The heads automatically go to the ramp load/unload when power is removed from the drive and during the deeper sleep modes.

An automatic shipping lock prevents potential damage to the heads and discs that results from movement during shipping and handling. The shipping lock disengages and the head load process begins when power is applied to the drive.

The drives also use a high-performance actuator assembly with a low-inertia, balanced, patented, straight arm design that provides excellent performance with minimal power dissipation in any orientation.

Standard features
Seagate Enterprise Performance 10K HDD drives have the following standard features:

  • 3.0 / 6.0 / 12.0 Gb Serial Attached SCSI (SAS) interface
  • Integrated dual port SAS controller supporting the SCSI protocol
  • Support for SAS expanders and fan out adapters
  • Firmware downloadable using the SAS interface
  • 128 - deep task set (queue)
  • Supports up to 32 initiators
  • 128MB data buffer
  • NVC-backed write cache of approximately 512K (4096 native and 512 emulation standard models)
  • 32GB TurboBoost read cache
  • 8MB TurboBoost NVC-backed write cache
  • Jumper less configuration
  • User-selectable logical block sizes for 512 emulation and native models
  • Industry standard SFF 2.5-inch dimensions
  • Programmable logical block reallocation scheme
  • Flawed logical block reallocation at format time
  • Programmable auto write and read reallocation
  • Reallocation of defects on command
  • ECC maximum burst correction length of 520 bits for 512 byte blocks and 1400 bits for 4K byte blocks.
  • No preventive maintenance or adjustments required
  • Dedicated head load/unload zone and automatic shipping lock
  • Embedded servo design
  • Self diagnostics performed when power is applied to the drive
  • Zone bit recording (ZBR)
  • Vertical, horizontal, or top down mounting


Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS Drives.

Product Specifications
Product NumberST300MM0078
Alt Number2M5JK
Sector Size512 Native
Drive Capacity300 GB
Read/Write Data Heads3
Bytes Per Track1109 Kbytes
Bytes Per Surface101,030 MB
Tracks Per Surface91.1 Ktracks
Tracks Per Inch280.3 KTPI
Peaks Bits Per Inch1952 Kb/in
Areal Density547.23 GB/in2
Disk Rotation Speed10K RPM
Average Rotational Latency2.9 ms
Format Command Execution Time
512-Bytes Sectors Maximum (With Verify)54
512-Bytes Sectors Maximum (Without Verify)28
General Performance Characteristics
Sustained Transfer Rate for 512 Native103 to 205 MiB/s
108 to 215 MB/s
SAS Interface Maximum Instantaneous Transfer Rate1200 MB/s per port
(Dual Port = 2400 MB/s)
Logical Block Size512 (Default), 520, 524, or 528
Read/Write Consecutive Sectors on a TrackYes
Flaw Reallocation Performance Impact (for flaws reallocated at format time using the spare sectors per sparing zone reallocation scheme.)Negligible
Average Rotational Latency2.9ms
Reliability Specifications
Seek Error RateLess Than 10 Errors in 10e8 Seeks
Read Error Rates

- Recovered Data

- Unrecovered Data

- Miscorrected Data

- Less Than 10 Error in 10e12 Bits Transferred
- Less Than 1 Sector in 10e16 Bits Transferred
Les Than 1 Sector in 10e21 Bits Transferred
Interface Error RateLess Than 1 Error in 10e12 Bits Transferred
Mean Time Between Failure (MTBF)2,000,000 Hours
Annualized Failure Rate (AFR)0.44%
Preventive MaintenanceNone Required

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 2C6230-150 2M5JK 02M5JK

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
