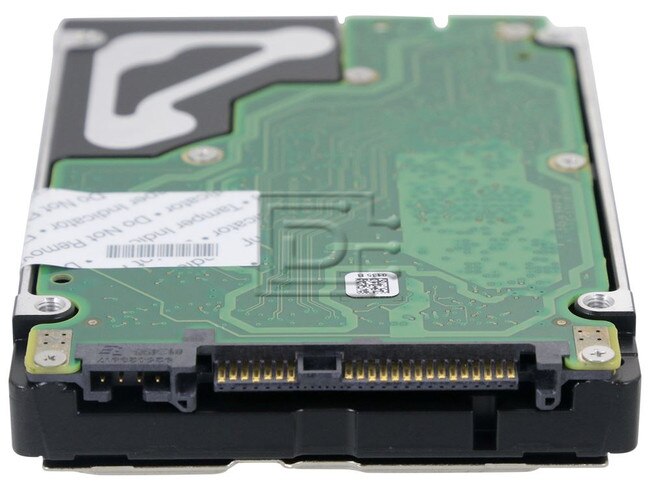

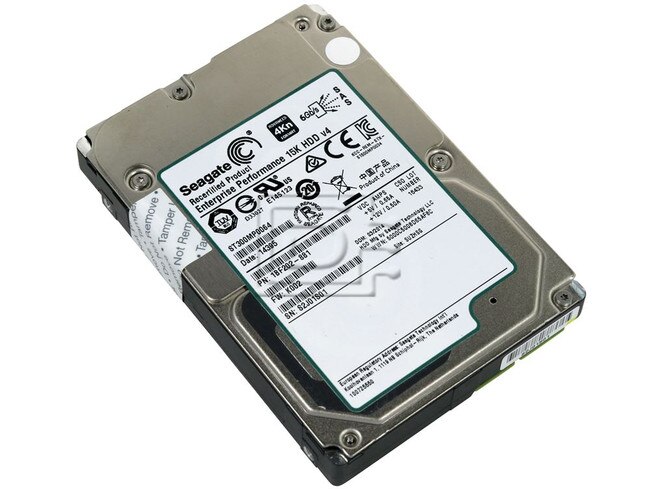

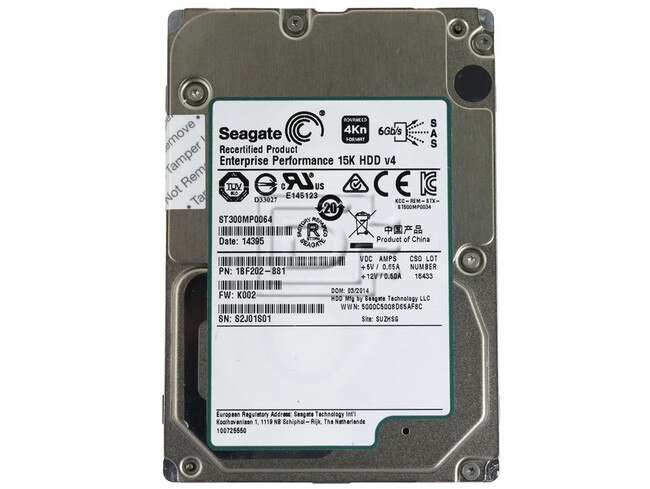

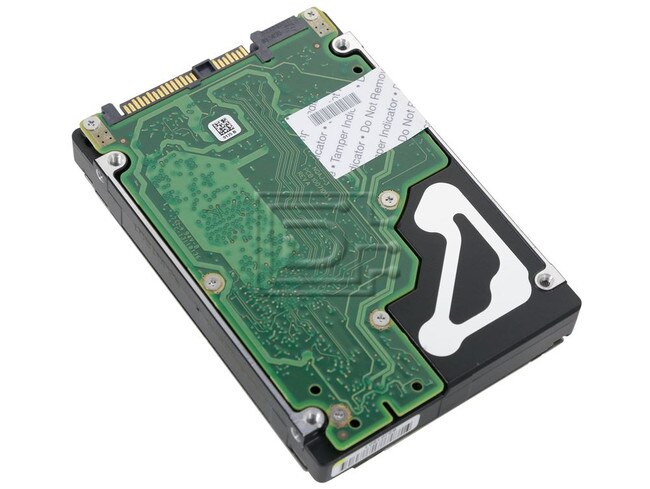

Seagate ST300MP0064 300GB SAS Hard Drive

Seagate Part #/MPN: ST300MP0064

DiscTech Item #: SGT-ST300MP0064-FR-OE

$74.00
  • Factory Refurbished
    Condition Levels Explained

    The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:10Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$74.00

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 4Kn

Sustained Throughput: 189/258

Average Seek Time: 2.0

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 128KB

Seagate ST300MP0064 300GB 2.5" SFF 6.0 Gb/s 15,000 RPM Enterprise 4Kn Serial Attached SCSI Hard Disk Drive - Factory Refurbished

ALT. PN: 1BF202-881

Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation without increasing drive count
  • Enables Tier 1 applications to process transactions more quickly to help increase revenue generation and improve customer satisfaction
  • Best-in-class idle power (nearly 2W lower than competitive offerings) for more efficient storage operations
  • Industry’s highest MTBF at 2.0M hours
  • Up to 24% sequential data read-write (SDR) performance improvement over competitive 15K offerings
  • Provides up to 21% improvement in SDR performance over prior generation
  • Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.
  • Self-Encrypting Drive (SED) option (AES-256) helps cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
  • SED models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
  • FIPS Self-Encrypting Drive option helps protect Sensitive but Unclassified and Protected class data.

Best-Fit Applications

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives

Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm SAS drives.

4K Native SPECIFICATIONS
Product NumberST300MP0064
Capacity300GB
Interface6Gb/s SAS
External Transfer Rate (MB/s)600
Formatted 512 Bytes/Sector (GB)300
PERFORMANCE
Spindle Speed (RPM)15K
Average Latency (ms)2.0
Sustained Transfer Rate, Outer to Inner Diameter (MB/s)189 to 258
Cache, Multisegmented (MB)128
CONFIGURATION/RELIABILITY
Disks/Heads2/4
Nonrecoverable Read Errors per Bits Read1 per 10E16
Annualized Failure Rate (AFR)0.44%
POWER MANAGEMENT
Typical OP (A) +5V/+12V0.42/0.46
Average Operating Power (W)7.6
Average Idle Power (W)5.4
PHYSICAL
Height (in/mm, mzx)0.591/15.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.496/0.225
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1BF202-881

Weight: 1 lb

Warranty: 1 Year DiscTech

Factory Refurbished
