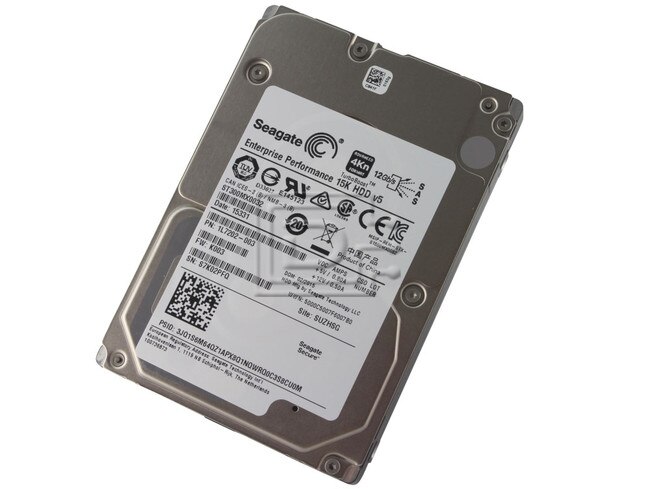

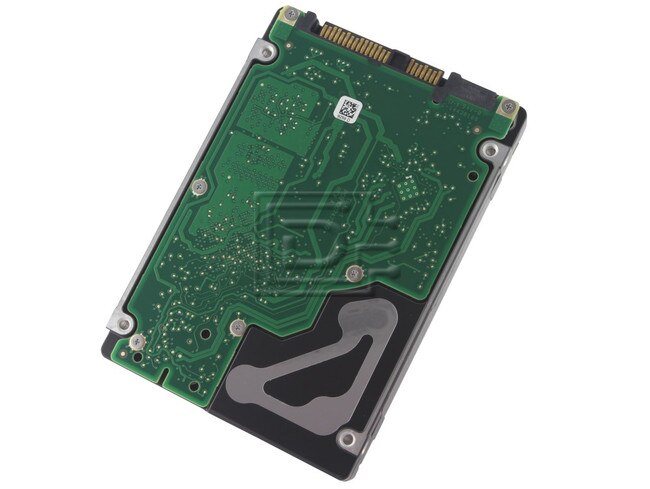

Seagate ST300MX0032 300GB Enterprise SAS Hard Drive

Seagate Part #/MPN: ST300MX0032

DiscTech Item #: SGT-ST300MX0032-BN-OE


$209.00
$209.00

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 4Kn

Sustained Throughput: 246 to 180

Average Seek Time: 2.0

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Hybrid SSD Cache: 32GB/MLC NAND

Seagate ST300MX0032 300GB 2.5" 12 Gb/s 15,000 RPM Enterprise Multi-Level Cel Serial Attached SCSI Hybrid Hard Drive 4Kn - Brand New

Alt MPN: 1L7202-003

Enterprise Performance 15K HDD

High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
  • Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
  • Seagate® TurboBoost™ enhanced cache models provide improved drive performance and protect data from corruption due to unexpected power loss.
  • TurboBoost feature uses traditional NAND and an advanced algorithm based on hot data to achieve performance improvement in some real life workloads and business environments.
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2.0M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides up to 18% improvement in SDR performance over prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.
  • Seagate Secure™ drive options (AES-256) help cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
  • Seagate Secure models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
  • Seagate Secure FIPS drive option helps protect Sensitive but Unclassified and Protected class data.

Best-Fit Application

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

SPECIFICATIONS
TurboBoost™ Standard ModelST300MX0032
Specification4K Native
Capacity300GB
Interface12Gb/s SAS
PERFORMANCE
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s246 to 180
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)128
TURBOBOOST ENHANCED CACHE
NAND Flash TypeeMLC
NAND Flash Size32GB
Mixed-Workload Performance (IOPS, compared to standard model)up to 3x
CONFIGURATION/RELIABILITY
Disks/Heads2/4
Nonrecoverable Read Errors per Bits Read, Max1 per 10e16
Annualized Failure Rate (AFR)0.44%
POWER MANAGEMENT
Typical Op (A) +5V/+12V0.46/0.51
Average Idle Power (W)4.8
Average Operating Power (W)8.4
ENVIROMENTAL
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonoperating (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
PHYSICAL
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.76/70.10
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.496/0.225

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1L7202-003

Weight: 1.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
