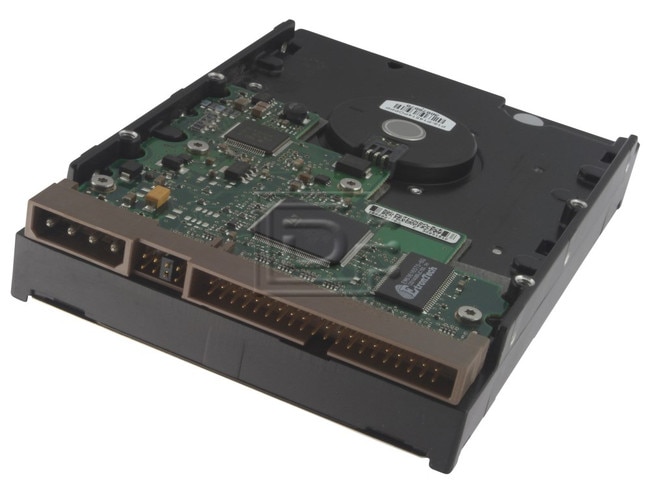

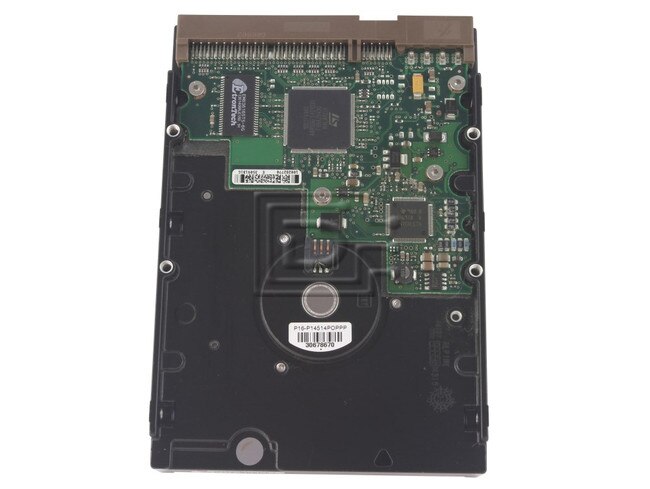

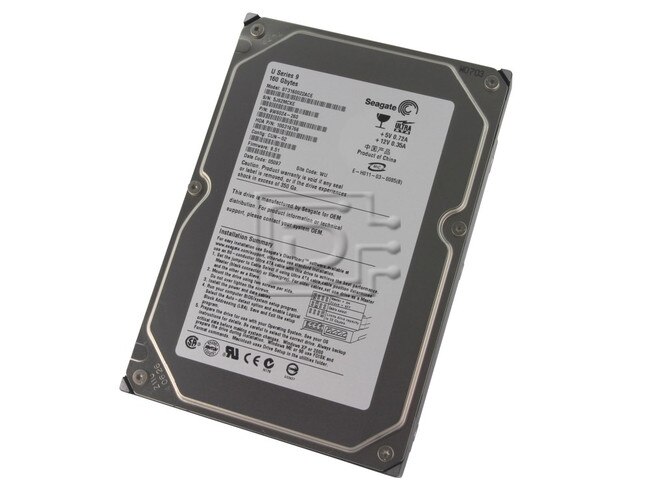

Seagate ST3160022ACE 160GB IDE Hard Drive

Seagate Part #/MPN: ST3160022ACE

DiscTech Item #: SGT-ST3160022ACE-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 160GB

Speed: 5,400RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 48

Average Seek Time: 8.5 / 9.5

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 2MB

Seagate ST3160022ACE U Series 9 160GB 5400RPM IDE Hard Drive - Refurbished

The reasonable and reliable Seagate U Series 9 160GB IDE hard drive gives you extra capacity at high speed for all your high quality video, audio and other media files. Never worry about running out of room, or having to pick and choose what to keep from your favorite music and movies. Full featured, it can handle your external memory needs for your entire digital media collection, or any other file you need to keep.

This drive comes with a wide range of features to store your favorite media safely and with plenty of room to spare. Take advantage of a full 160 GB in formatted capacity with a 5400 RPM spindle speed and a 2MB Buffer. With the UDMA/100 interface, you’ll be transferring data at to your drive at 100 MB/s. It is equipped with an E-IDE interface that supports your high transfer rate of data, so you won’t be waiting long.

The Seagate U series comes in the industry standard 3.5-inch form factor.

As your collection grows, be sure to have the peace of mind and capacity you need to store and backup all of your favorite media. The Seagate U Series 160GB IDE hard drive has you covered

Drive specificationST3160022ACEST3120025ACEST380012ACE
Formatted Gbytes (512 bytes/sector)16012080
Guaranteed sectors312,581,808234,441,648156,301,488
Bytes per sector512
Default sectors per track63
Default read/write heads16
Default cylinders16,383
Physical read/write heads432
Recording density, BPI (bits/inch max)595,000
Track density, TPI (tracks/inch max)94,600
Areal density, (Mbits/inch max)56.3
Sustained data transfer rate OD (Mbytes/sec)48
I/O data-transfer rate (Mbytes/sec max)100
ATA data-transfer modes supportedPIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–5
Cache buffer2 Mbyte
Average latency (msec)4.16
Average seek, read (msec typical)8.5
Average seek, write (msec typical)9.5

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
