Seagate Part #/MPN: ST3160815AS
DiscTech Item #: SGT-ST3160815AS-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 160GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

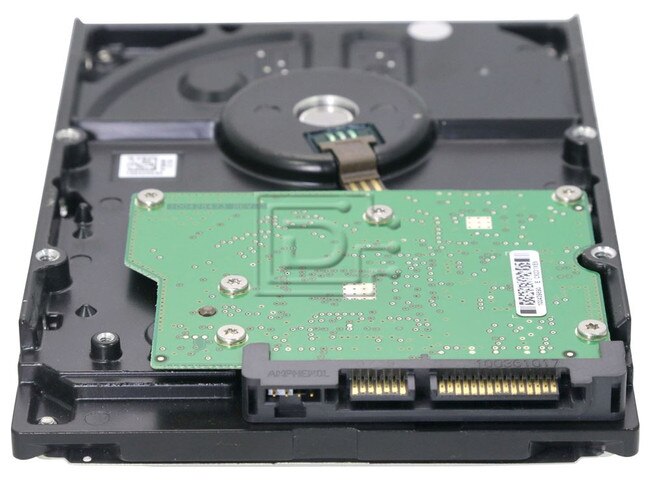

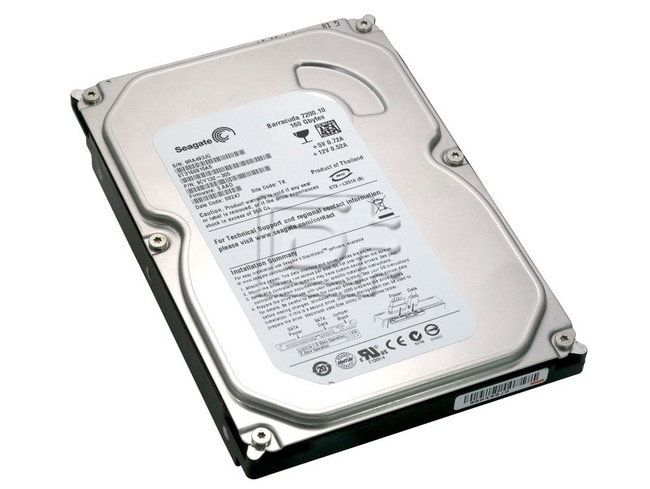

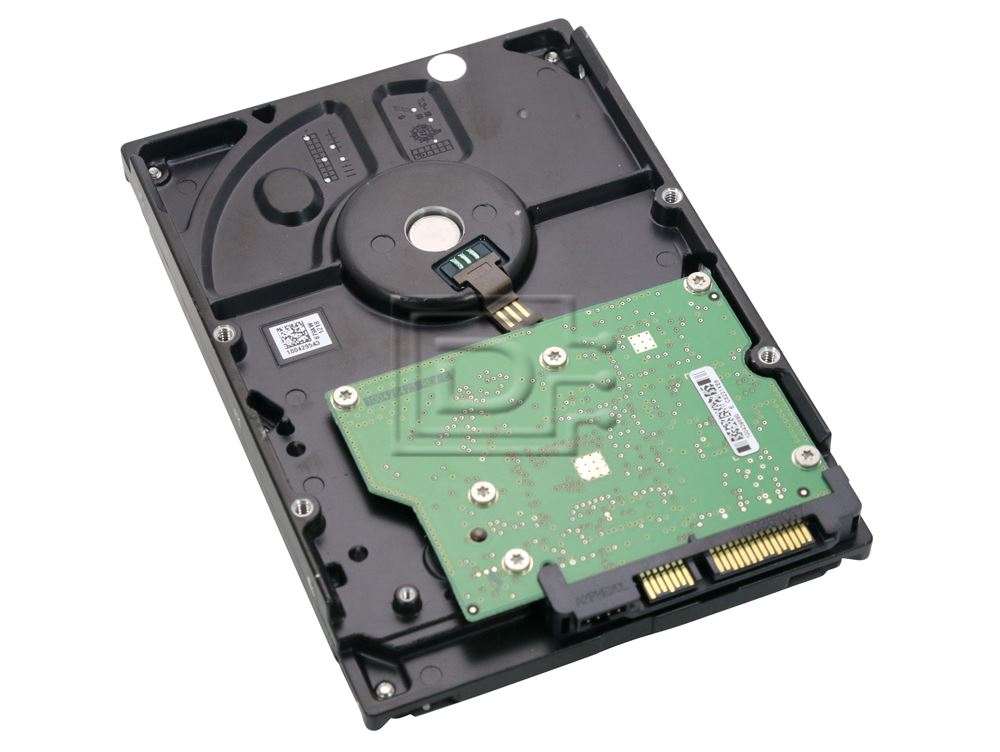

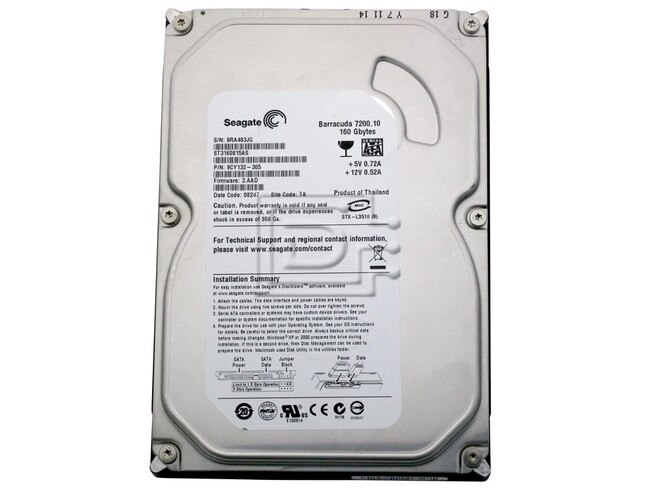

Seagate ST3160815AS Barracuda 7200.10 160GB 7.2K 3Gbps SATA Hard Drive - Brand New OEM
The Seagate Barracuda 7200.10 desktop hard drive features innovative perpendicular recording technology and is the first drive on the market to provide capacities up to 750 GB. Barracuda 7200.10 hard drives deliver superb performance, efficiency, speed and durability for all your application needs.
Dell Part #: JP208
Specifications | |
Model number | ST3160815AS |
Model Name | Barracuda 7200.10 |
Height | 19.99 mm |
Width | 101.6 mm |
Length | 146.99 mm |
Weight | 0.380 kg |
Formatted Capacity | 160 Gbytes |
Internal Transfer Rate (max) | 930 Mbits/sec |
Formatted Int Transfer Rate (max) | 78 MBytes/sec |
External (I/O) Transfer Rate (max) | 300 MBytes/sec |
Average Seek Time, Read | <11 msec typical |
Average Seek Time, Write | <12 msec typical |
Track-to-Track Seek, Read | <0.8 msec typical |
Track-to-Track Seek, Write | <1.0 msec typical |
Average Latency | 4.16 msec |
Default Buffer (cache) Size | 8 Mbytes |
Number of Discs (physical) | 1 |
Number of Heads (physical) | 2 |
Startup Current (12VDC +/- 5%) | <2.0 amps |
Max Operating Shock (2-msec) | 63 Gs |
Max Nonoperating Shock (2-msec) | 350 Gs |
Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: JP208 0JP208
