Seagate ST318452LC 18GB SCSI Hard Drive

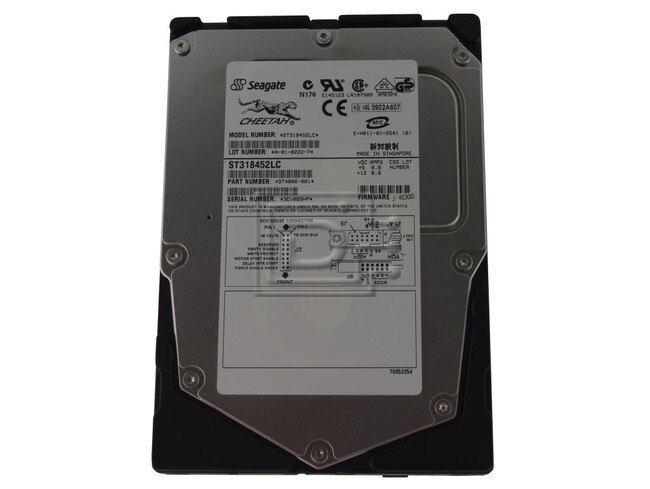

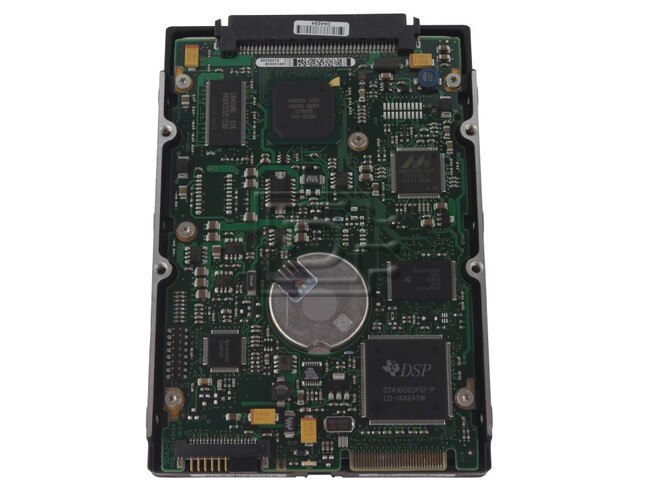

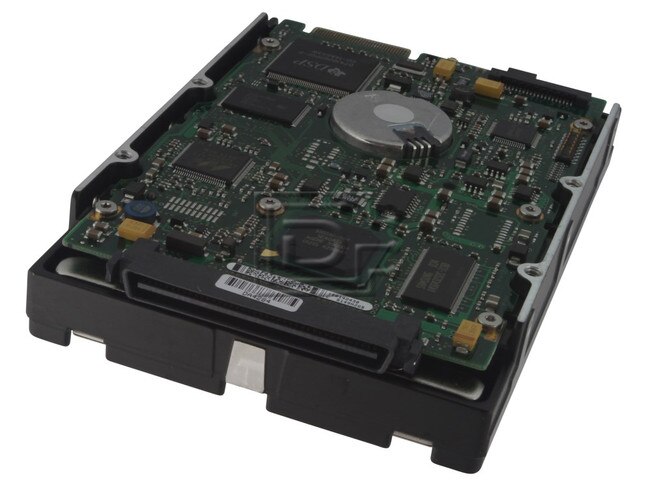

Seagate ST318452LC 9T4006-001 SCSI Hard Drive Image 1 imageSeagate ST318452LC 9T4006-001 SCSI Hard Drive Image 2 imageSeagate ST318452LC 9T4006-001 SCSI Hard Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$299.00

Capacity:18GB
Speed:15K RPM
Interface Types:SCSI 80pin SCA-2 Hot-Swap
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SCSI LVD U320 - 320MBps 16-bit
RAM:8MB
Click to see more 18GB SCSI 80pin SCA-2 Hot-Swap 15K RPM Drives

Description

Seagate Cheetah ST318452LC X15 36LP 15K.2 18GB 15K U320 80pin SCA-2 SCSI Hard Drive - Brand New

ALT. PN: 9T4006-001

Cheetah X15 36LP drives combine giant magnetoresistive (GMR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo technology, and a wide Ultra160 SCSI interface (on ST336752 and ST318452 models) or a wide Ultra320 SCSI interface (on ST336732 and ST318432 models) to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers.

Ultra160 and Ultra320 SCSI use negotiated transfer rates. These transfer rates will occur only if your host adapter supports these data transfer rates and is compatible with the required hardware requirements of the I/O circuit type. This drive also operates at SCSI-1 and SCSI-2 data transfer rates for backward compatibility with non-Ultra/Ultra2/Ultra160/Ultra320 SCSI host adapters.

Compatibility

This drive is compatible with any server that accepts 3.5" x 1" (LFF) SCSI drives.

Specifications

UNFORMATTED CAPACITY (GB) ________________23.7 FORMATTED CAPACITY (GB) __________________18.35 AVERAGE SECTORS PER TRACK ________________484 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________73,988 CYLINDERS ________________________________18,497 user HEADS ______PHYSICAL______________________4 DISCS (3.0 in) ___________________________2 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML 16/17 EPR4 INTERNAL TRANSFER RATE (mbits/sec)________548 to 706 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_51.8 to 68.1 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/160 Sync SPINDLE SPEED (RPM) ______________________15k AVERAGE LATENCY (mSEC) ___________________2.0 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________316,155 SECTORS PER DRIVE ________________________35,843,670 TPI (TRACKS PER INCH) ____________________38,000 BPI (PEAK KBITS PER INCH) ________________482 AVERAGE ACCESS (ms read/write)____________3.6/4.2 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.4/0.8 MAX FULL SEEK (ms read/write) ____________7.0/8.0 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15 abnormal ________________________40 nonoperating ____________________75/250/100 ACOUSTICS (Bels typical, sound power) ____3.7 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.3/35.18 POWER REQUIREMENTS: +12V START-UP (amps) _1.44 +12V TYPICAL (amps) __0.51 idle +5V START-UP (amps) __0.90 +5V TYPICAL (amps) ___0.83 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE
Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9T4006-001

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
