Seagate ST320LT030 320GB SATA Hard Drive

Seagate Part #/MPN: ST320LT030

DiscTech Item #: SGT-ST320LT030-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 320GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5in x 5mm Ultrathin

Sector Size: 512 / 512e

Sustained Throughput: 100

Average Seek Time: <13/<15

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 16MB

Seagate ST320LT030 320GB 2.5in 6Gbps 5.4K RPM Laptop Ultrathin SATA HDD - Brand New

Seagate ST320LT030 320GB 2.5" 6.0 Gbps 5400 RPM Laptop Ultrathin Serial Advanced Technology Attachment Hard Disk Drive - Brand New

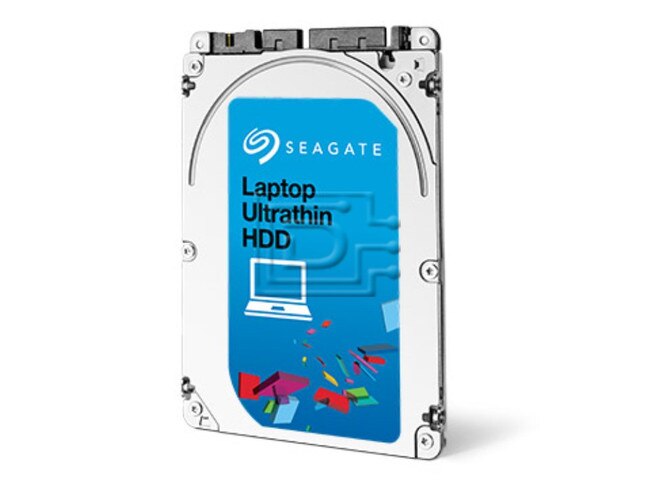

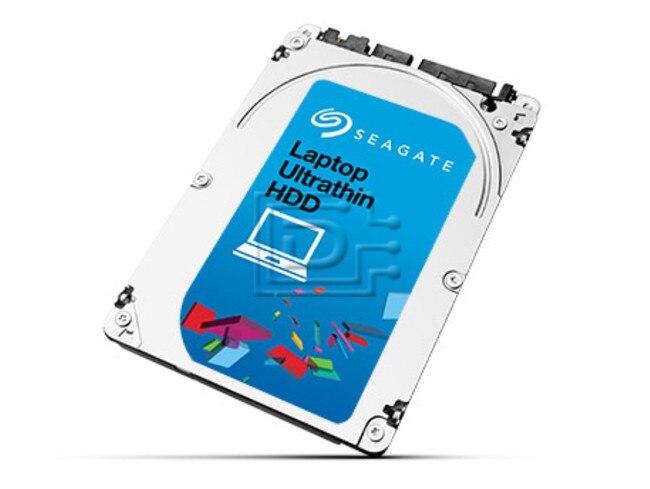

Laptop Ultrathin HDD

Thin, Light, Affordable.

  • One of the thinnest and lightest laptop HDDs—5mm, 3.3 oz and thinner than a pencil
  • Affordable, high-capacity storage gives system builder options when integrating low profile storage into slim laptop and ultrabook solutions
  • Compatible with every portable PC with a standard SATA 6Gb/s interface, enabling easy upgrade or design integration.
  • Up to 500GB in 25% less space—get industry-leading cost-per-GB and cost-per-millimeter
  • Frees up valuable space within a device to accommodate additional features.
  • Supports options for Seagate Secure™ Self-Encrypting Drive features with on-the-fly data encryption meeting TCG Opal protocol.

Best-Fit Applications

  • Slim laptops or ultrabooks.
  • Extending high-capacity, affordable storage into other applications and slim devices.
  • Backup storage.


This drive is compatible with any server that accepts 2.5" x 5mm (Ultra Thin) SATA drive.

Drive ModelST320LT030
InterfaceSATA 6Gb/s
Cache (MB)16
Seek Average, Read (ms)<13
Seek Average, Write (ms)<15
Max. Sustained Data Transfer Rate OD (MB/s)100
Max. Data Transfer Rate (MB/s)600
Bytes per Sector (logical/physical)512/4096
Reliability/Data Integrity
Load/Unload Cycles600,000
Nonrecoverable Read Errors per Bits Read, Max1 per 10E14
Power Management
Startup Power, Typical (A)1.0
Power Seek, Typical (W) 1.4
Power Idle, Typical (W) 0.48
Operating Temperature (°C)0 to 60
Nonoperating Temperature (°C)-40 to 70
Operating Shock: 2ms (Gs)400
Nonoperating Shock: 1ms (Gs)1000
Acoustics Idle Typical (bels-sound power)2.0
Acoustics Seek, Typical (bels-sound power)2.2
Height (mm/in)5.0/0.197
Width (mm/in)69.85/2.75
Depth (mm/in)100.35/3.95
Weight (g/lb)93/0.205
Special Features
Halogen FreeYes
RoHS ComplianceYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
