Seagate Part #/MPN: ST3250310SV
DiscTech Item #: SGT-ST3250310SV-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 250GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: <14/<15
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

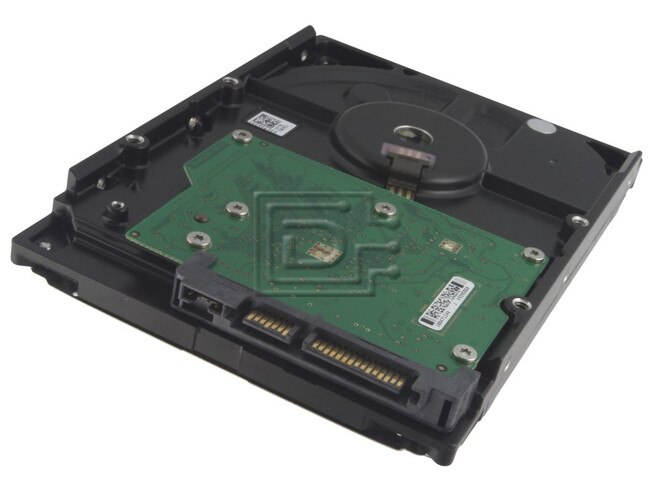

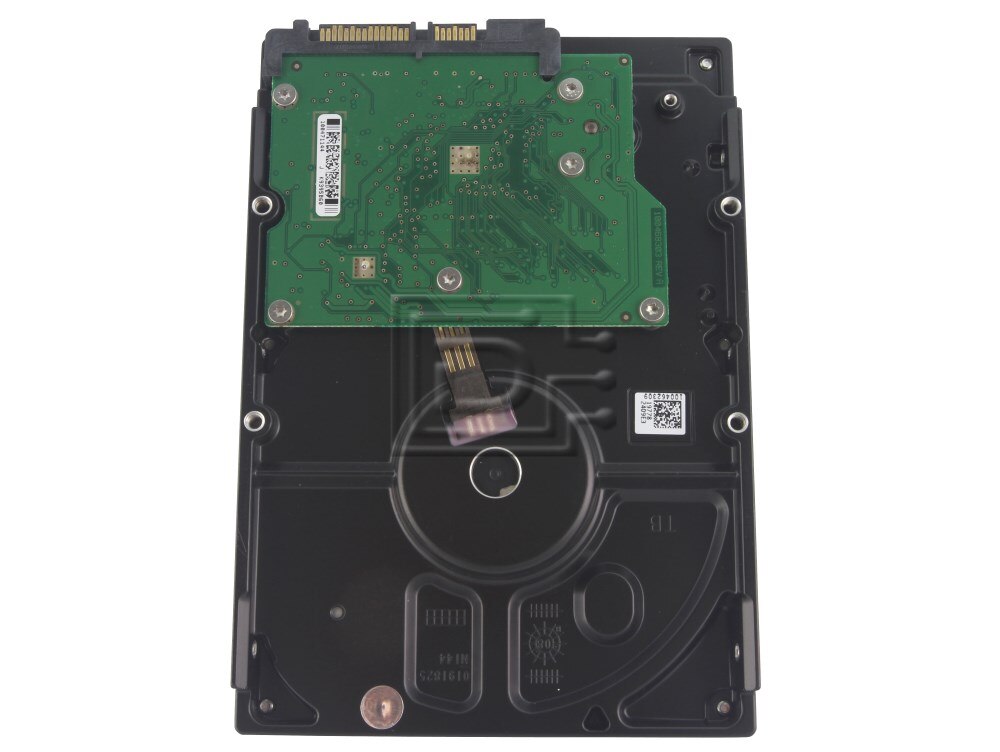

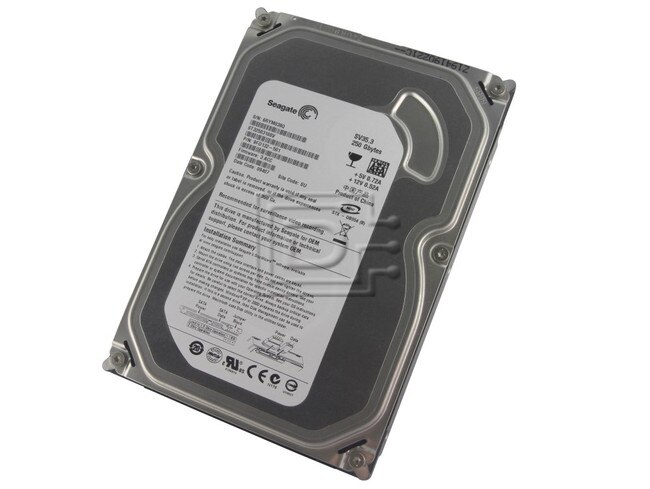

Seagate ST3250310SV 250GB 3.5in 3Gbps 7.2K RPM SV35.3 Series SATA HDD - Refurbished
Seagate ST3250310SV 250GB 3.5" 3.0 Gbps 7,200 RPM SV35.3 Series Serial Advanced Technology Attachment Hard Disk Drive - Refurbished
SV35.3 Series™ 3.5-inch hard drives for surveillance digital video recorders
The Seagate® SV35 Series™ drive enables security industry manufacturers, integrators and installers to accomplish more with less, greatly improving their surveillance solution offerings in terms of capacity, reliability, performance and features.
Capacity
- Longer archival periods enable customers to retain video for long-term analysis and evidentiary purposes.
- Can store up to 289 days of video data or 32 days in high-resolution.
- Enables high-resolution video streams for intelligent video applications or analytics
Reliability
Given the potentially critical nature of the security data involved, the application-specific features employed in the SV35 Series drive to enhance reliability take on even greater importance.
- 24x7 operation with >1 million hours MTBF
- Lower startup current (2.0 amps), enabling the use of low-cost power supplies
- Power-saving features provide more efficient system cooling
- Intelligent workload monitoring and management
Performance
- Enhanced caching capabilities
- SATA interface increases video data rates (480 Mb/s)
- Up to 3Gb/s bandwidth
- ATA-7 streaming commands guarantee smooth, reliable video streaming and high-integrity database updates
Dedication
- Unparalleled Seagate technical and marketing support infrastructure dedicated to video surveillance customers
- Field engineering and business support teams available in person, worldwide
- Third-generation SV35 Series drives deliver proven industry reliability and performance
- Backed by the industry’s best warranty—Seagate 5-year limited warranty
Seagate Design Service Centers
- Expertise in helping surveillance equipment companies and manufacturers overcome technical issues and improve system designs
- Speeds your time to market by solving performance and reliability design issues quickly and efficiently
- Advanced application design advice available through our design centers throughout the world
Compatibility:
This Drive is compatible withe any server that accepts 3.5"x1.0" (LFF) SATA drives.
| SPECIFICATIONS | |
|---|---|
| Model Number | ST3250310SV |
| Capacity | 250GB |
| Interface Options | SATA 3Gb/s |
| PERFORMANCE | |
| Average Seek (ms, typical) Read Write | <14 <15 |
| Cache, Multisegmented (MB) | 8 |
| SATA Data Transter Mode Supported (Gb/s) | 3.0/1.5 |
| Track-to-Track Seek (ms, typical) Read Write | <1.0 <2 |
| Power-On to Ready (sec, typical, @ 25°C and nominal voltage) | 16 |
| VOLTAGE | |
| Voltage Tolerance (including noise) | 5V ±5% 12V ±10% |
| CONFIGURATION/ORGANIZATION | |
| Bytes per Sector | 512 |
| Guaranteed Sectors | 488,397,168 |
| RELIABILITY/DATA INTEGRITY | |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E14 |
| MTBF (hours)/Annualized Failure Rate (AFR) 40°C HDD Case Temp | >1 million/<1% |
| Contact Start-Stop Cycles (25°C, 50% relative humidity) | 50,000 |
| POWER MANAGEMENT | |
| Maximum Startup Current (12V typical, amps) | 2 |
| Operating Mode (typical, W) | 8.0 |
| Standby/Sleep Mode (typical, W) | 1.0 |
| ENVIRONMENTAL | |
| Temperature Operating (ambient min °C) Operating (drive case max °C) Nonoperating (ambient min °C) Nonoperating (ambient max °C) | 0 75 -40 70 |
| Temperature Gradient (°C per hour max), Operating/Nonoperating | 20/30 |
| Relative Humidity Operating (non-condensing, %) Nonoperating (non-condensing, %) | 5 to 90 5 to 95 |
| Wet Bulb Temperature (°C max), Operating/Nonoperating | 37.7/40.0 |
| Shock, Operating: 2 ms (Gs) | 63 |
| Shock, Nonoperating: 2 ms (Gs) | 350 |
| Acoustic, Idle (typical/max bels) | 2.5/2.8 |
| Vibration 5 to 22 Hz, Displacement Limited, Operating/Nonoperating (Gs) 22 to 350 Hz, Operating/Nonoperating (Gs) 350 to 500 Hz, Operating/Nonoperating (Gs) | 0.5/5.0 0.5/5.0 0.25/1.0 |
| PHYSICAL | |
| Height (mm/in) | 2.02/0.794 |
| Width (mm/in) | 101.6/4.000 |
| Depth (mm/in) | 146.99/5.787 |
| Weight (g/lb) | 382/0.842 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
