Seagate ST3300620AS SATA Hard Drive

Seagate Part #/MPN: ST3300620AS

DiscTech Item #: SGT-ST3300620AS-FR-6M


Capacity: 300GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 72

Average Seek Time: <8.5/<10.0

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

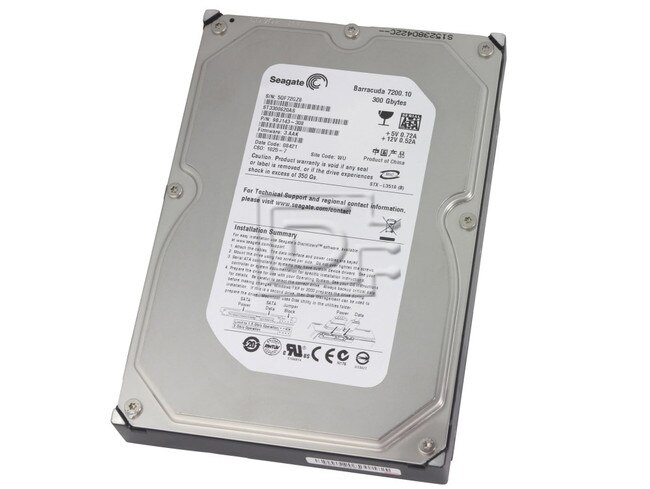

Seagate Barracuda 7200.10 300GB 7.2K SATA Hard Drive - ST3300620AS - Factory Recertified

The Seagate Barracuda 7200.10 desktop hard drive features innovative perpendicular recording technology and is the first drive on the market to provide capacities up to 750 GB. Barracuda 7200.10 hard drives deliver superb performance, efficiency, speed and durability for all your application needs.

Specifications 300 GB
Model Number ST3300620AS
Interface  SATA 3.0Gb/s

Height (max) 26.1 mm  (1.028 inches)
Width  (max) 101.6 mm  (4.010 inches)
Length (max) 146.99 mm  (5.787 inches)
Weight (typical) 635 grams  (1.40 pounds)
Cache 16 MBytes
Capacity 300 GB
Guaranteed Sectors 586,072,368
Number of pins on the I/O connector   22
Spindle Speed                    7200 rpm
Native Command Queuing           Y
Average latency                  4.16 msec
Random read seek time            <8.5 msec
Random write seek time           <10.0 msec
Maximum interface transfer rate  300 Mbytes/sec
Annual Failure Rate              0.34%
Unrecoverable read errors        1 in 10!14
Average idle current             9.30 watts
Average seek power               12.60 watts
Standby power                    0.80 watts
Sleep power                      0.807 watts
Maximum start current, DC        2.80 amps
Ambient operating temperature (min)       0 degrees C
Ambient operating temperature (max)       60 degrees C
Ambient nonoperating temperature (min)    -40 degrees C
Ambient nonoperating temperature (max)    70 degrees C
Maximum operating temperature change      20 degrees C per hour
Maximum nonoperating temperature change   30 degrees C per hour
Maximum operating case temperature        69 degrees C
Minimum Relative humidity (operating)     5%
Maximum Relative humidity (operating)     90%
Minimum Relative humidity (nonoperating)  5%
Maximum Relative humidity (nonoperating)  95%
Maximum allowable humidity change         30 % per hour
Operating altitude (min)                  -60.96 meters
Operating altitude (min)                  -200 feet
Operating altitude (max)                  3,048 meters
Operating altitude (max)                  10,000 feet
Nonoperating altitude (min)               -60.96 meters
Nonoperating altitude (min)               -200 feet
Nonoperating altitude (max)               12,192 meters
Nonoperating altitude (max)               40,000 feet
Operating Shock (max)         68 Gs
Operating shock               2 msec
Nonoperating Shock (max)      350 Gs
Nonoperating shock            2 msec

Operating vibration           0.25 Gs
Operating vibration           5-22 Hz
Operating vibration           0.50 Gs
Operating vibration           22-350 Hz
Operating vibration           0.25 Gs
Operating vibration           350-500 Hz
Nonoperating vibration        0.25 Gs
Nonoperating vibration        5-22 Hz
Nonoperating vibration        5.0 Gs
Nonoperating vibration        22-350 Hz
Nonoperating vibration        1.0 Gs
Acoustics (Idle Volume)       2.5 bels
Acoustics (Seek Volume)       3.0 bels

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 6 Month Manufacturer

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

6 Month Manufacturer Warranty
