Seagate Part #/MPN: ST3320620A
DiscTech Item #: SGT-ST3320620A-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 320GB
Speed: 7,200RPM
Interface Types: IDE ATA 3.5in
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 100
Average Seek Time: 11/12
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 16MB

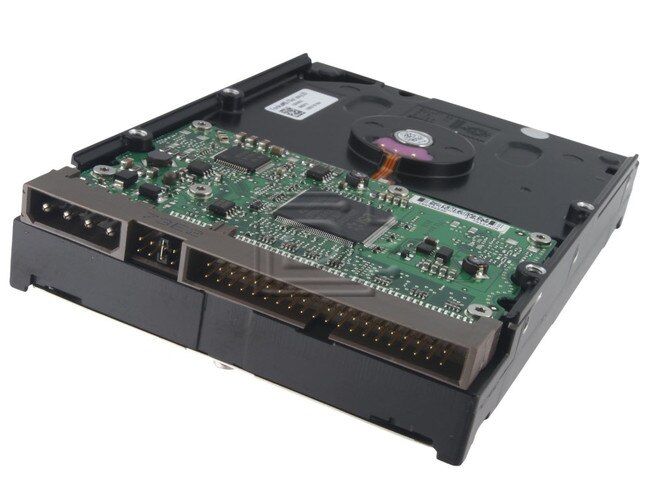

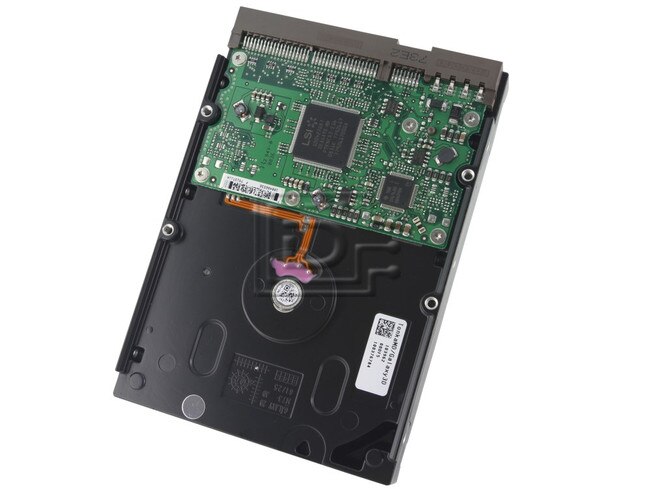

Seagate Barracuda ST3320620A 7200.10 320GB 7.2K Ultra ATA/100 Hard Drive - Refurbished
Seagate Barracuda 7200 drives, from the world’s premier storage provider, deliver years of reliable service and high performance. The Barracuda 7200.10 drive offers an unmatched combination of reliability, performance and capacity. Available in a wide range of capacities and configurations, the Barracuda 7200.10 drive is the ideal choice for mainstream PCs, performance PCs, gaming and workstations, desktop RAID and personal external storage devices.
Alt PNs: 9BJ04G-307
| Specifications | 320 GB |
| Model Number | ST3320620A |
Interface
| Ultra ATA/100 |
| PHYSICAL | |
| Height (max) | 26.1 mm (1.028 inches) |
| Width (max) | 101.6 mm (4.010 inches) |
| Length (max) | 146.99 mm (5.787 inches) |
| Weight (typical) | 635 grams (1.40 pounds) |
| Cache | 16 MBytes |
| Capacity | 320 GB |
| Guaranteed Sectors | 625,142,448 |
| 100 |
PERFORMANCE |
|
Spindle Speed | 7200 rpm |
Native Command Queuing | Y |
Average latency | 4.16 msec |
Random read seek time | <11.0 msec |
Random write seek time | <12.0 msec |
Maximum interface transfer rate
| 100 Mbytes/sec |
RELIABILITY |
|
Annual Failure Rate | 0.34% |
Unrecoverable read errors | 1 in 1014 |
Average idle current | 9.30 watts |
Average seek power | 12.60 watts |
Standby power | 0.80 watts |
Sleep power | 0.807 watts |
Maximum start current, DC
| 2.80 amps |
ENVIRONMENT |
|
Temperature |
|
Ambient operating temperature (min) | 0 degrees C |
Ambient operating temperature (max) | 60 degrees C |
Ambient nonoperating temperature (min) | -40 degrees C |
Ambient nonoperating temperature (max) | 70 degrees C |
Maximum operating temperature change | 20 degrees C per hour |
Maximum nonoperating temperature change | 30 degrees C per hour |
Maximum operating case temperature
| 69 degrees C |
HUMIDITY |
|
Minimum Relative humidity (operating) | 5% |
Maximum Relative humidity (operating) | 90% |
Minimum Relative humidity (nonoperating) | 5% |
Maximum Relative humidity (nonoperating) | 95% |
Maximum allowable humidity change
| 30 % per hour |
ALTITUDE |
|
Operating altitude (min) | -60.96 meters |
Operating altitude (min) | -200 feet |
Operating altitude (max) | 3,048 meters |
Operating altitude (max) | 10,000 feet |
Nonoperating altitude (min) | -60.96 meters |
Nonoperating altitude (min) | -200 feet |
Nonoperating altitude (max) | 12,192 meters |
Nonoperating altitude (max)
| 40,000 feet |
SHOCK |
|
European Union Restriction of Hazardous Substances
| Y
|
VIBRATION |
|
Operating Shock (max) | 68 Gs |
Operating shock | 2 msec |
Nonoperating Shock (max) | 350 Gs |
Nonoperating shock | 2 msec |
Operating vibration | 0.25 Gs |
Operating vibration | 5-22 Hz |
Operating vibration | 0.50 Gs |
Operating vibration | 22-350 Hz |
Operating vibration | 0.25 Gs |
Operating vibration | 350-500 Hz |
Nonoperating vibration | 0.25 Gs |
Nonoperating vibration | 5-22 Hz |
Nonoperating vibration | 5.0 Gs |
Nonoperating vibration | 22-350 Hz |
Nonoperating vibration | 1.0 Gs |
Nonoperating vibration
| 350-500 Hz |
ACOUSTICS |
|
Acoustics (Idle Volume) | 2.5 bels |
Acoustics (Seek Volume) | 3.0 bels |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9BJ04G-307
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
