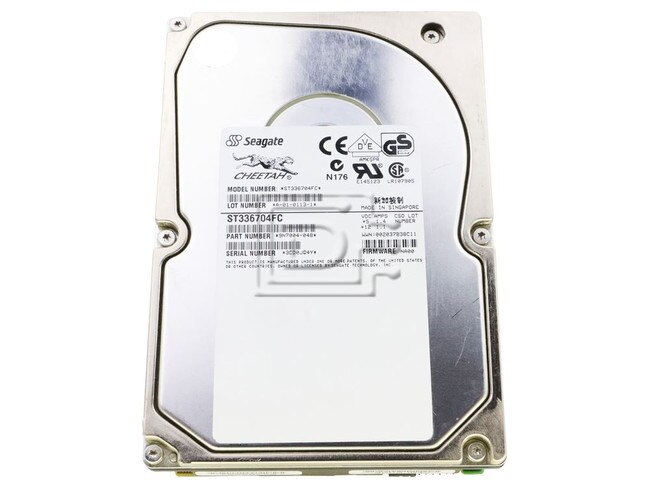

Seagate ST336704FC Fibre / Fiber Channel Hard Drive

Seagate Part #/MPN: ST336704FC

DiscTech Item #: SGT-ST336704FC-RF-OE


Enterprise Grade

Capacity: 36GB

Speed: 10,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 35.5

Average Seek Time: 5.2/6

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 4MB

Seagate Cheetah ST336704FC 36LP 36GB 10K 2Gbps 40pin Fibre / Fiber Channel Hard Drive - Refurbished

Cheetah 36LP FC drives have the following standard features:

Integrated dual port FC-AL controller

Concurrent dual port transfers

Support for FC arbitrated loop, private and public attachment

Differential copper FC drivers and receivers

Downloadable firmware using the FC-AL interface

Supports SCSI enclosure services via interface connector

128-deep task set (queue)

Supports up to 32 initiators

Drive selection ID and configuration options are set on the FC-AL backpanel or through interface commands.

Jumpers are not used on the drive.

Fibre Channel worldwide name uniquely identifies the drive and each port

User-selectable logical block size (512 to 704 bytes per logical block)

Selectable frame sizes from 128 to 2,112 bytes

Industry standard 3.5-inch low profile form factor dimensions

Programmable logical block reallocation scheme

Flawed logical block reallocation at format time

Programmable auto write and read reallocation

Reed-Solomon error correction code

Sealed head and disc assembly (HDA)

No preventive maintenance or adjustments required

Dedicated head landing zone

Automatic shipping lock

Embedded Grey Code track address to eliminate seek errors

Self-diagnostics performed at power on

1:1 interleave

Zone bit recording (ZBR)

Vertical, horizontal, or top down mounting

Dynamic spindle brake

4,096 Kbyte data buffer (16,384 Kbytes on FCV drives). See Section 4.5.

Embedded servo design

Reallocation of defects on command (Post Format)

Fibre Channel interface transports SCSI protocol

Technical Specifications
Model numberST336704FC
Model NameCheetah 36LP
Form Factor(width)3.5"
Form Factor(height)low-profile
  Physical Specifications
Height25.4 mm
Width101.6 mm
Length146 mm
Weight0.6 kg
Formatted Capacity36.7 Gbytes, formatted
Interface Type40-pin SCA
  Transfer Rates
Internal Transfer Rate (min)28 Mbits/sec
Internal Transfer Rate (max)427 Mbits/sec
Formatted Int Transfer Rate (min)26.700000 Mbits/sec
Formatted Int Transfer Rate (max)40.200000 Mbits/sec
External (I/O) Transfer Rate (max)200 MBytes/sec
Avg Formatted Transfer Rate35.5 MBytes/sec
  Seek Times
Average Seek Time, Read5.2 msec typical
Average Seek Time, Write6 msec typical
Track-to-Track Seek, Read0.6 msec typical
Track-to-Track Seek, Write0.9 msec typical
Average Latency2.99 msec
Default Buffer (cache) Size4,096 Kbytes
Spindle Speed10,000 RPM
Number of Discs (physical)6
Number of Heads (physical)12
Total Cylinders 14,100
Bytes Per Sector512
  Recording Components
Recording MethodNPV
  Electrical Requirements
Idle Power (typ)12.5 watts
  Environmental Specifications
  Shock and Vibration
Max Operating Shock (11-msec) 10 Gs
Max Nonoperating Shock (2-msec)200 Gs
Operating Vibration (max)0.5 Gs
Nonoperating Vibration (max)2 Gs
  Temperature and Humidity
Operating Temperature (max)55 deg C
Operating Temperature (min)5 deg C
Nonoperating Temperature (max)70 deg C
Nonoperating Temperature (min)-40 deg C
Acoustics, Idle (sound power, typ)3.9 Bels
MTBF (Hours)1,200,000 hours
Recoverable Read Errors 10 per 1012 bits read
Nonrecoverable Read Errors1 per 1015 bits read
Seek Errors1 per 108 bits read
Supports S.M.A.R.T. Yes
Service Life5 year(s)
Limited Warranty Period5 year(s)
