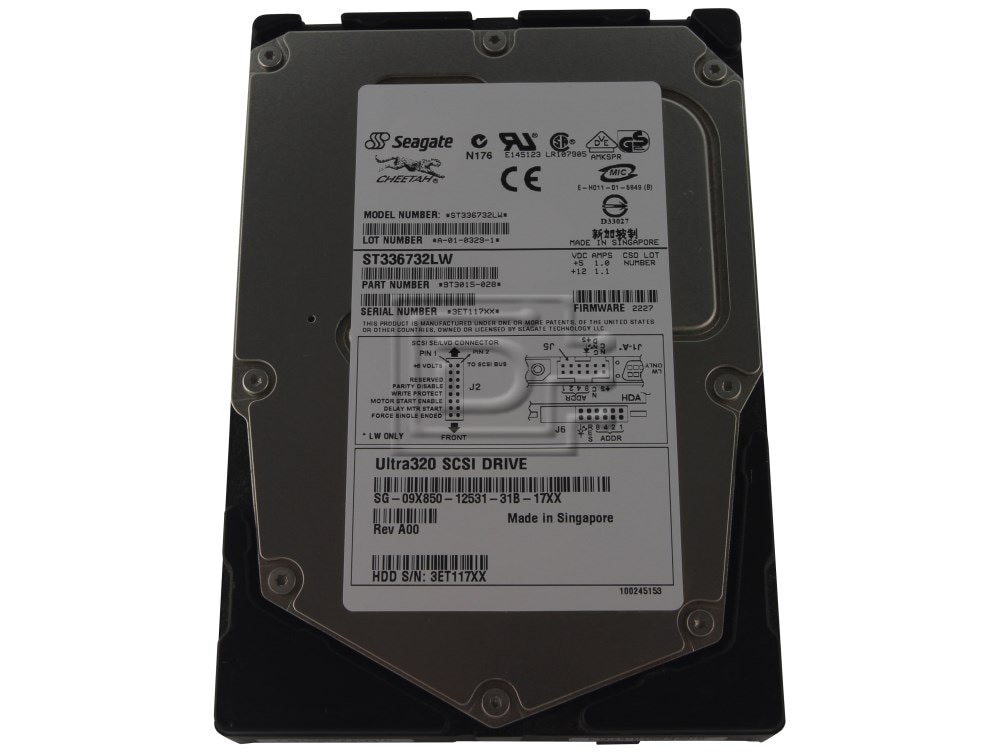

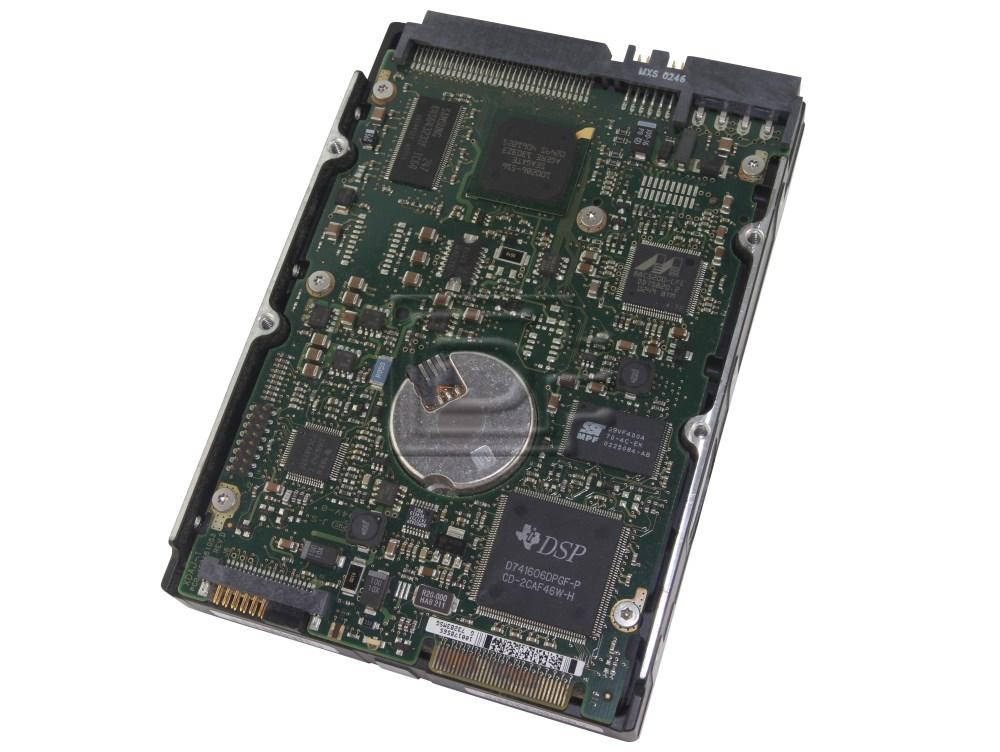

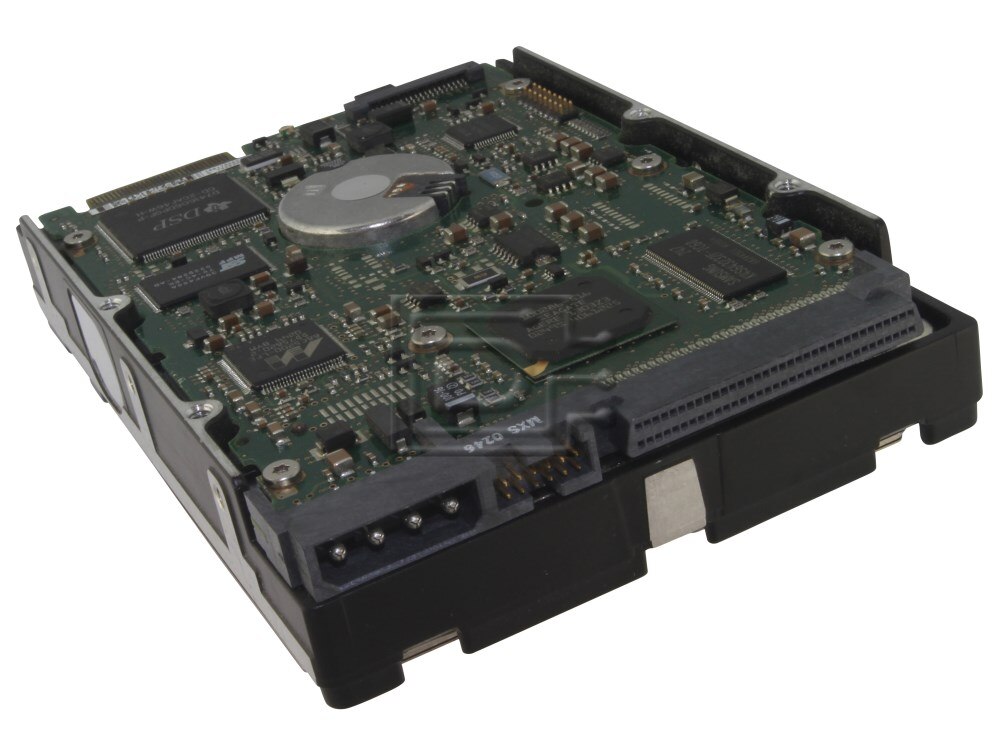

Seagate ST336732LW SCSI Hard Drive

Seagate ST336732LW 9T3015-028 SCSI Hard Drive Image 1 imageSeagate ST336732LW 9T3015-028 SCSI Hard Drive Image 2 imageSeagate ST336732LW 9T3015-028 SCSI Hard Drive Image 3 image
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$79.00

Capacity:36GB
Speed:15K RPM
Interface Types:SCSI 68pin HD68
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SCSI LVD U320 - 320MBps 16-bit

Description

Seagate ST336732LW Cheetah X15 36GB 15K U320 68pin SCSI Hard Drive - Refurbished OEM

Alt MPN: 9T3015-028

Description:

The most comprehensive drive protection system in the industry, consisting of Drive Defense, Data Defense and Diagnostic Defense. Seagate's Advanced Multidrive System optimizes the drive for maximum I/O performance in Multidrive environments

Specifications

 FORMATTED CAPACITY (GB) __________________36.7 AVERAGE SECTORS PER TRACK ________________484 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________147,976 CYLINDERS ________________________________18,497 user HEADS ______PHYSICAL______________________8 DISCS (3.0 in) ___________________________4 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML 16/17 EPR4 INTERNAL TRANSFER RATE (mbits/sec)________548 to 706 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_51.8 to 68.1 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/320 Sync SPINDLE SPEED (RPM) ______________________15k AVERAGE LATENCY (mSEC) ___________________2.0 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________316,155 SECTORS PER DRIVE ________________________71,687,369 TPI (TRACKS PER INCH) ____________________38,000 BPI (PEAK KBITS PER INCH) ________________482 AVERAGE ACCESS (ms read/write)____________3.6/4.2 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.4/0.8 MAX FULL SEEK (ms read/write) ____________7.0/8.0 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15 abnormal ________________________40 nonoperating ____________________75/250/100 ACOUSTICS (Bels typical, sound power) ____3.7 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______12.3/42.0 POWER REQUIREMENTS: +12V START-UP (amps) _1.44 +12V TYPICAL (amps) __0.51 idle +5V START-UP (amps) __0.90 +5V TYPICAL (amps) ___0.83 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.5/0.68
Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9T3015-028

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

    • Warranty

    1 Year DiscTech Warranty
